266
-
Indoor unit No. are indicated only when
plural indoor units are connected.
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
Note1: Fan setting of "HIGH SPEED"
Indoor unit air flow setting
Fan tap
STAN DAR D HI-MID-LO HI-LO HI- MID FAN
SPEED
SET
HIGH
SPEED1
2
UHI - HI- MID UHI - MID UHI- HI
Initial function setting of some indoor unit is "HIGH SPEED".
Permission/prohibition control of operation will be valid.
Function
setting
To set other indoor unit, press
AIRCON
NO. button, which
allows you to go back to the
indoor unit selection screen
(for example: I/U 000 ).
The filter sign is indicated after running for 180 hours.
The filter sign is indicated after running for 600 hours.
The filter sign is indicated after running for 1000 hours.
The filter sign is indicated after running for 1000 hours, then the indoor unit will be stopped by
compulsion after 24 hours.
If you change the indoor function "04 ",
you must change the remote controller function "14 " accordingly.
You can select the louver stop position in the four.
The louver can stop at any position.
With the VRF series, it is used to stop all indoor units connected with the same outdoor unit immediately.
When stop signal is inputed from remote on-off terminal "CNT-6", all indoor units are stopped immediately.
To be reset for producing +3.0
°
C increase in temperature during heating.
To be reset for producing +2.0
°
C increase in temperature during heating.
To be reset for producing +1.0
°
C increase in temperature during heating.
To be reset producing +2.0
°
C increase in return air temperature of indoor unit.
To be reset producing +1.5
°
C increase in return air temperature of indoor unit.
To be reset producing +1.0
°
C increase in return air temperature of indoor unit.
To be reset producing -1.0
°
C increase in return air temperature of indoor unit.
To be reset producing -1.5
°
C increase in return air temperature of indoor unit.
To be reset producing -2.0
°
C increase in return air temperature of indoor unit.
When heating thermostat is OFF, fan speed is low speed.
When heating thermostat is OFF, fan speed is set speed.
When heating thermostat is OFF, fan speed is operated intermittently.
When heating thermostat is OFF, the fan is stopped.
When the remote thermistor is working, "FAN OFF" is set automatically.
Do not set "FAN OFF" when the indoor unit's thermistor is working.
Drain pump is run during cooling and dry.
Drain pump is run during cooling, dry and heating.
Drain pump is run during cooling, dry, heating and fan.
Drain pump is run during cooling, dry and fan.
After cooling is stopped or cooling thermostat is OFF, the fan does not perform extra operation.
After cooling is stopped or cooling thermostat is OFF, the fan perform extra operation for half an hour.
After cooling is stopped or cooling thermostat is OFF, the fan perform extra operation for an hour.
After cooling is stopped or cooling thermostat is OFF, the fan perform extra operation for six hours.
After heating is stopped or heating thermostat is OFF, the fan does not perform extra operation.
After heating is stopped or heating thermostat is OFF,the fan perform extra operation for half an hour.
After heating is stopped or heating thermostat is OFF,the fan perform extra operation for two hours.
After heating is stopped or heating thermostat is OFF, the fan perform extra operation for six hours.
During heating is stopped or heating thermostat is OFF, the fan perform intermittent operation for five
minutes with low fan speed after twenty minutes' OFF.
During heating is stopped or heating thermostat is OFF, the fan perform intermittent operation for five
minutes with low fan speed after five minutes' OFF.
Working only with the Single split series.
To control frost prevention, the indoor fan tap is raised.
Change of indoor heat exchanger temperature to start frost prevention control.
Stop air-conditioner and press
(SET) + (MODE) buttons
at the same time for over three seconds.
ON/OFF button
(finished)

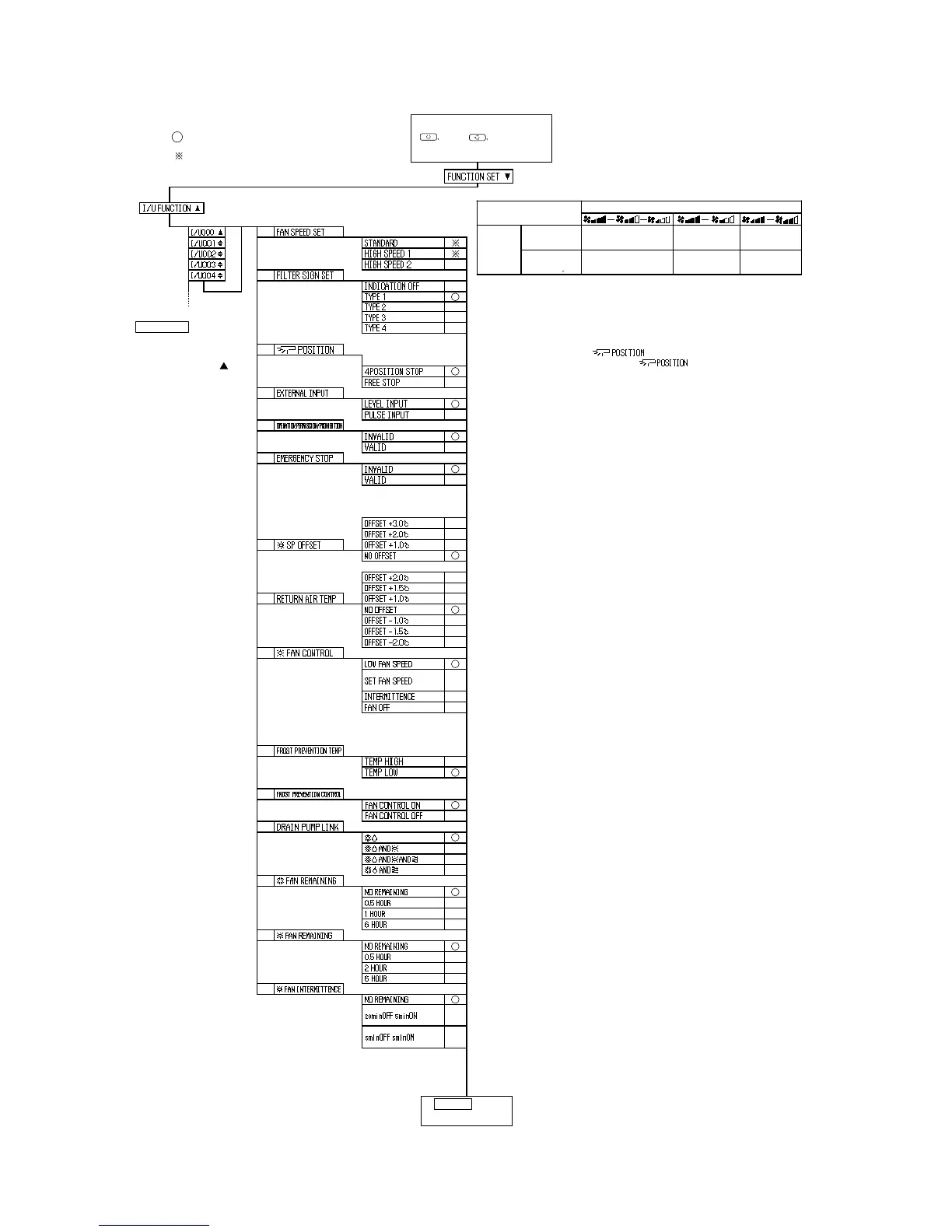

(ii) Indoor unit function
“
” : Initial settings
“
” : Automatic criterion
To Next Page
