3.6 Noise level
Note (1) The data are based on the following conditions.
Ambient air tempetature: Indoor unit 27˚C DB, 19˚C WB. Outdoor unit 35˚C DB
(2) The data in the chart are measuted in an unechonic room.
(3) The noise levels measured in the field are usually higher than the data because of reflection.

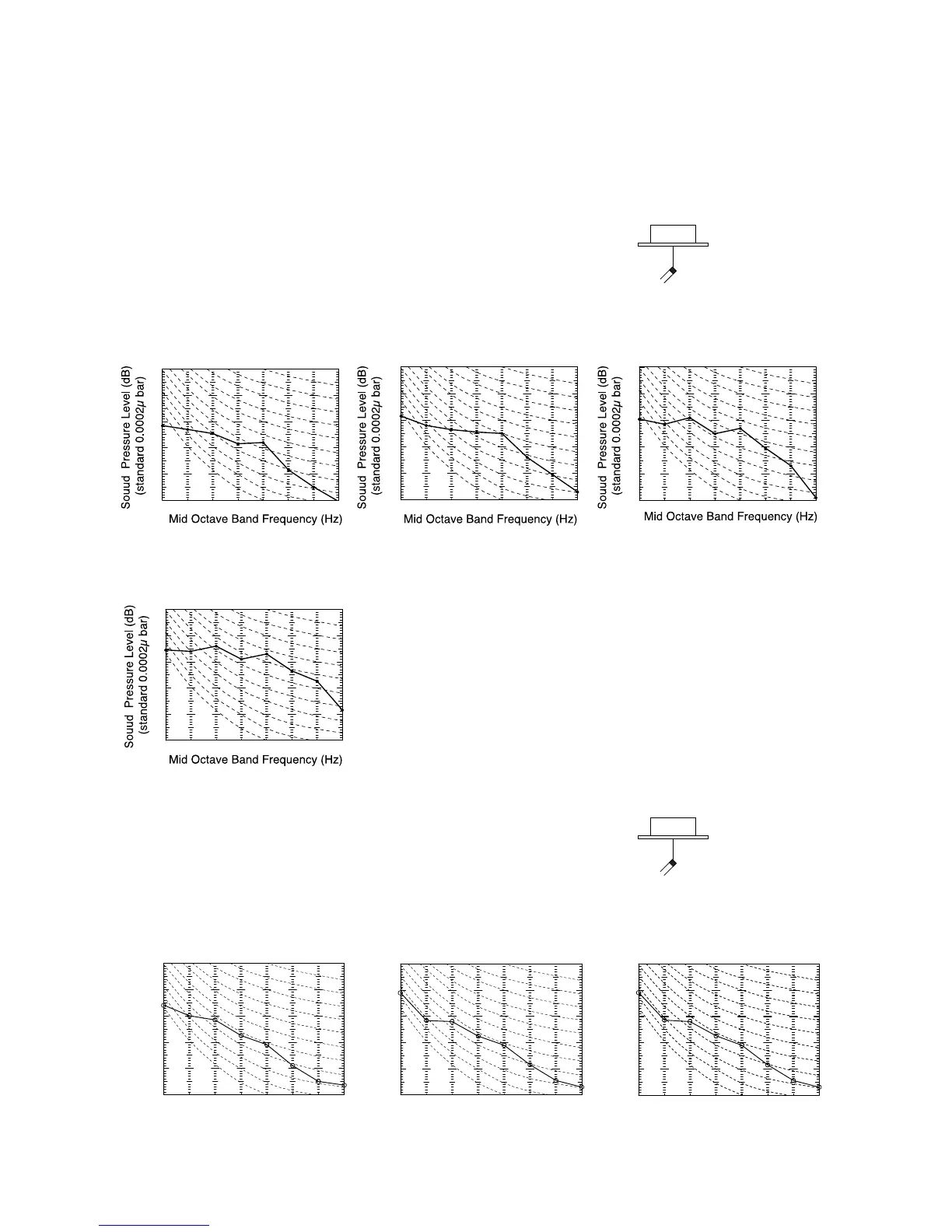

(a) Ceiling cassette-4 way compact type (FDTC)
Measured based on JIS B 8616
Mike position as right
1.5m
Mike (center & low points)
Noise level 35 dB (A) at HIGH
33 dB (A) at MEDIUM
31 dB (A) at LOW
Models FDT28KXE6, 36KXE6, 45KXE6
Noise level 35 dB (A) at HIGH
33 dB (A) at MEDIUM
31 dB (A) at LOW
Model FDT56KXE6
Noise level 35 dB (A) at HIGH
33 dB (A) at MEDIUM
31 dB (A) at LOW
N60
40
50
40
50
63
125
250 500 1000 2000 4000 8000
10
20
30
10
20
30
N50
N40
N30
N20
60
60
N10
Souud Pressure Level (dB)
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
N60
40
50
40
50
63
125
250 500 1000 2000 4000 8000
10
20
30
10
20
30
N50
N40
N30
N20
60
60
N10
Souud Pressure Level (dB)
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
N60
40
50
40
50
63
125
250 500 1000 2000 4000 8000
10
20
30
10
20
30
N50
N40
N30
N20
60
60
N10
Souud Pressure Level (dB)
(standard 0.0002µ bar)
Mid Octave Band Frequency (Hz)
Model FDT71KXE6
(b) Ceiling cassette-4 way type (FDT)
Measured based on JIS B 8616
Mike position as right
1.5m
Mike (center & low points)
N60
40
50
40
50
63
125
250 500 1000 2000 4000 8000
10
20
30
10
20
30
N50
N40
N30
N20
60
60
N10
N60
40
50
40
50
63
125
250 500 1000 2000 4000 8000
10
20
30
10
20
30
N50
N40
N30
N20
60
60
N10
N60
40
50
40
50
63
125
250 500 1000 2000 4000 8000
10
20
30
10
20
30
N50
N40
N30
N20
60
60
N10
N60
40
50
40
50
63
125
250 500 1000 2000 4000 8000
10
20
30
10
20
30
N50
N40
N30
N20
60
60
N10
Model FDTC45KXE6
Noise level 40 dB (A) at HIGH
38 dB (A) at MEDIUM
36 dB (A) at LOW
Models FDTC22KXE6, 28KXE6
Noise level 35 dB (A) at HIGH
33 dB (A) at MEDIUM
32 dB (A) at LOW
Model FDTC36KXE6
Noise level 38 dB (A) at HIGH
36 dB (A) at MEDIUM
34 dB (A) at LOW
Model FDTC56KXE6
Noise level 45 dB (A) at HIGH
42 dB (A) at MEDIUM
39 dB (A) at LOW
