(e) How to set the airflow direction (Only FDT, FDTC, FDE)
It is possible to change the movable range of the louver on the air outlet from the wired remote controller. Once the top and
bottom position is set, the louver will swing within the range between the top and the bottom when swing operation is chosen.
It is also possible to apply different setting to each louver.
1) Stop the air conditioner and press
SET button and
LOUVER button simultaneously for three seconds or more.

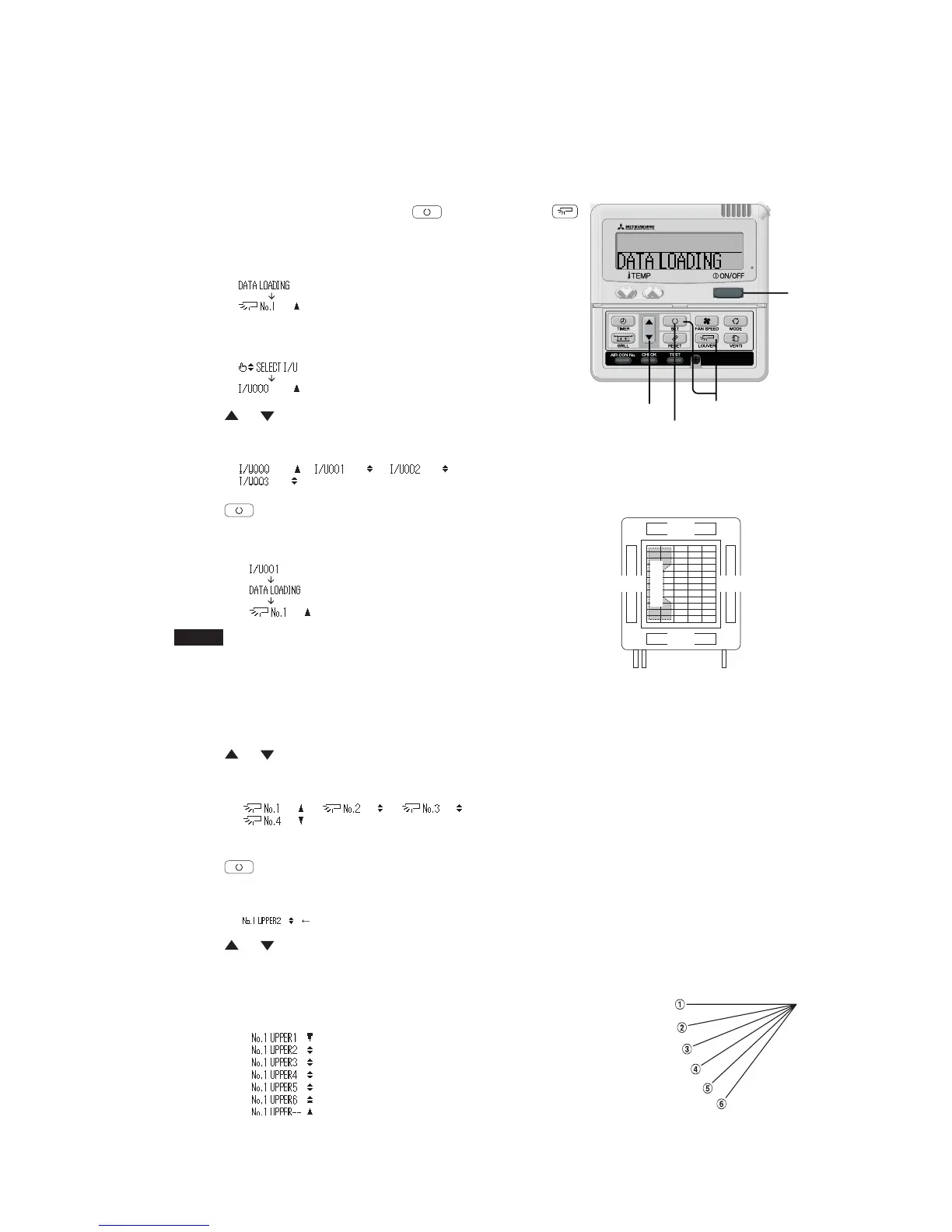

(i) FDT, FDTC series
The following is displayed if the number of the indoor units connected to
the remote controller is one. Go to step 4.
2).4).6).8)
1)
10)
3).5).7).9
No. 4
No. 2
No. 1 No. 3
b
l
o
r
t
n
o
C
o
x
Louver No.
Piping side
Drain hose side
“ ”
“ ”
“ ”
“ ”
“ ”⇔“ ”⇔“ ”⇔
“
”
[EXAMPLE]
“ ”
(displayed
for two seconds)
“ ”
“ ”
[EXAMPLE]
“ ” ⇔ “ ” ⇔ “ ” ⇔
“
”
[EXAMPLE]
“ ” current upper limit position
[EXAMPLE] If No.1 louver is selected,
“ ” (the most horizotal)
⇔ “
”
⇔ “
”
⇔ “
”
⇔ “
”
⇔ “
” (the most downwards)
⇔ “
” (return to the default setting)
The following is displayed if the number of the indoor units connected to
the remote controller are more then one.
2) Press
or button. (selection of indoor unit)
Select the indoor unit of which the louver is set.
3) Press
SET button. (determination of indoor unit)
Selected indoor unit is fixed.
NOTICE
• For FDT type, in case the louver No to be set is uncertain, set any louver
temporarily. The louver will swing once when the setting is completed and
it is possible to confirm the louver No and the position.
After that, choose the correct louver No and set the top and bottom position.
• For FDTC series, set louver No1 other settings selected have no effect.
4) Press
or button. (selection of louver No.)
Select the louver No. to be set according to the right figure.
5) Press
SET button. (Determination of louver No.)
The louver No. to be set is confirmed and the display shows the upper limit of the movable range.
6) Press
or button. (selection of upper limit position)
Select the upper limit of louver movable range.
“position 1” is the most horizontal, and “position 6” is the most downward.
“position --” is to return to the factory setting. If you need to change the setting
to the default setting, use “position --”.
• For FDTC series, set louver No1 other settings selected have no effect.
