Mounting the Panel
1 Open the air return grille and remove the air block panel from the inside. (Remove
the 2 screws.)
2 Mount the two (M5 x 35) panel mounting screws to the indoor unit
4 Use the opening to connect the connectors for the louver motor and limit switches.
5 Reinstall the wind shield plate.
(iii) Installation on higher ceiling
Adhere the insulation materials on the blow outlet of the indoor unit. All others are same as the standard installation.
3 Hang the panel on the two mounting screws on the indoor unit by using the two shaped holes. Slide the panel approximately 10 mm.
Use the 5 panel mounting screws to secure the panel.
Setup from a remote controller side.
Drain pump operation from a remote controller unit is possible. Operate a remote controller unit by following the steps described
below.
1. To start a forced drain pump operation
1 Press the
TEST
button for three seconds or longer.
The display will change from “
SELECT ITEM” “
SET” “
TEST RUN
”
2 Press the
button once while “
TEST RUN
” is displayed, and cause “DRAIN PUMP
” to be displayed.
3 When the
SET
button is pressed, a drain pump operation will start.
Display: “DRAIN PUMP RUN”
“
STOP”
2. To cancel a drain pump operation.
1 If either
SET
or
ON/OFF
button is pressed, a forced drain pump
operation will stop. The air conditioning system will become OFF.

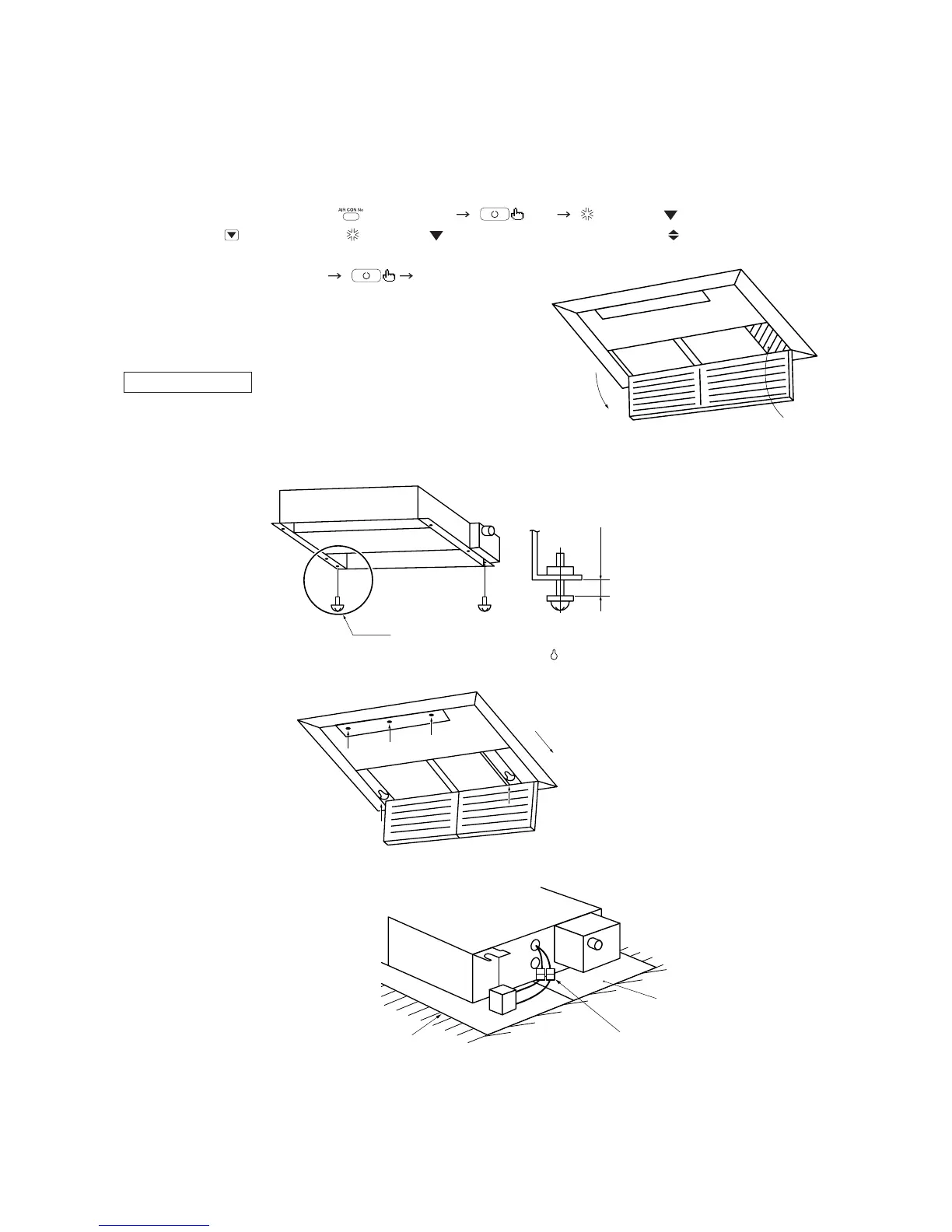

Ceiling opening
Opening
Connector
Sliding direction
Detail of Section A
Approx. 15 mm
A
Air block panel
To Next Page
