Vinyl tube
A. If there is a ceiling
1) Open the hole in the installation location to the ceiling open-
ing dimensions.
2) Install the suspension bolts (procured locally) at the designated
locations.
(Use care as the center of the spacing for the suspension bolts
is not at the center of the panel.)
3) Hang the unit, use the four bolts to mount the pattern
paper provided to the panel mounting section and adjust
the height.
4) Use a level or transparent hose with water in it to confirm that
the unit is level. If the unit is not level, problems such as water
leakage or improper operation of the float switch could occur.
5) After confirming the above, secure the unit in position.

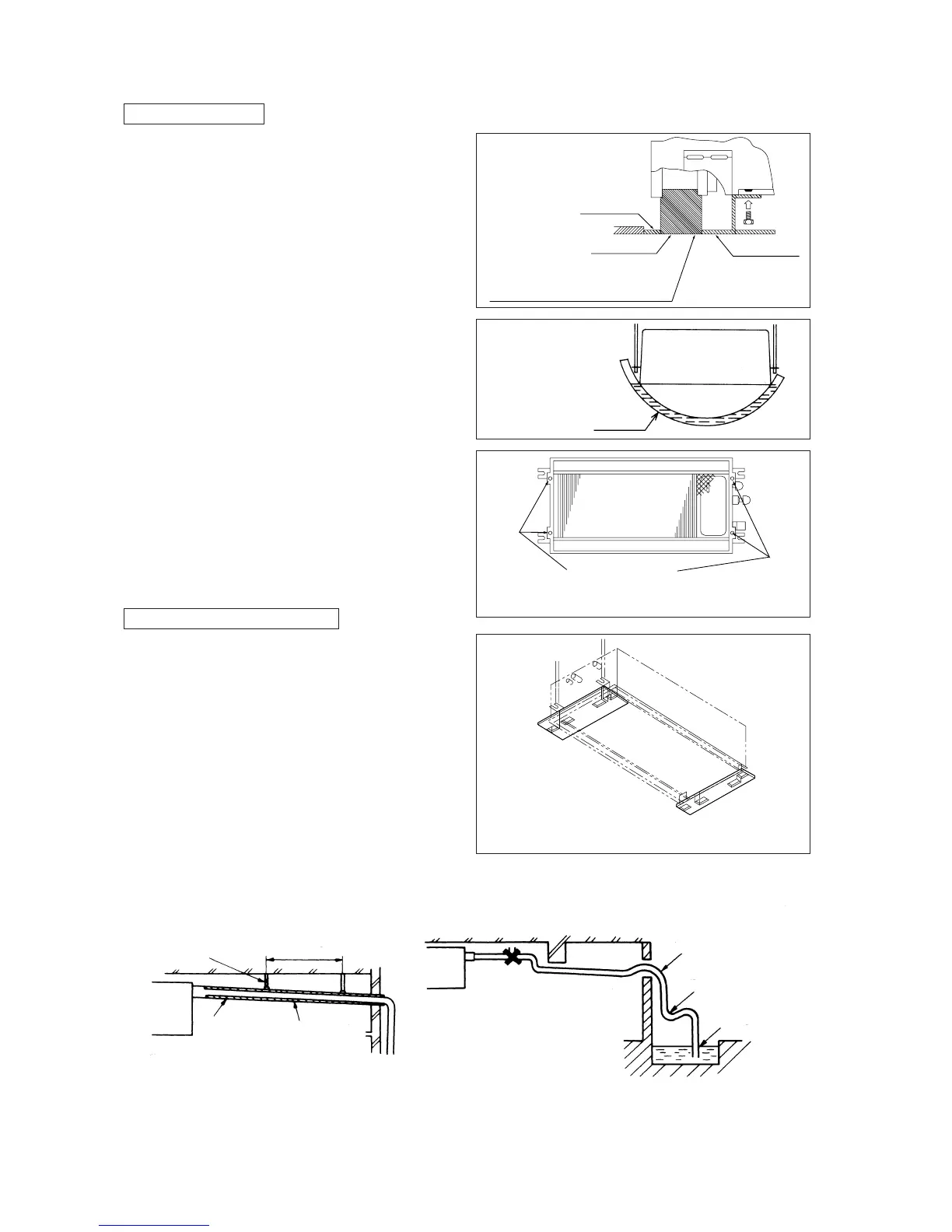

Outlet
port
Printed surface
Ceiling surface
Pattern paper
Adjust the position of the indoor unit so that
the bottom surface of the pattern paper and
the bottom surface of the ceiling align.
Panel mounting position
<Panel mounting position>
B. If ceiling is to be installed later
1) Follow steps A2) to A4) in the previous section "A. If there is
a ceiling" to install the unit and mount the pattern paper.
2) When the ceiling is installed, the outer perimeter of the pat-
tern paper can be referred to for making the opening in the
ceiling.
3) After checking the height and that the unit is level, secure the
unit in position.
(iv) Drain piping
1) Drain piping should always be in a downhill grade (1/50-1/100) and avoid riding across an elevation or making traps.
● Good piping ● Improper piping
1.5 m ~ 2 m
Suspension
bolts
Heat
insulation
A downhill grade
of 1/100 or more
Air vent
Avoid riding across an elevation
Keep free from traps
Do not pipe under water.
