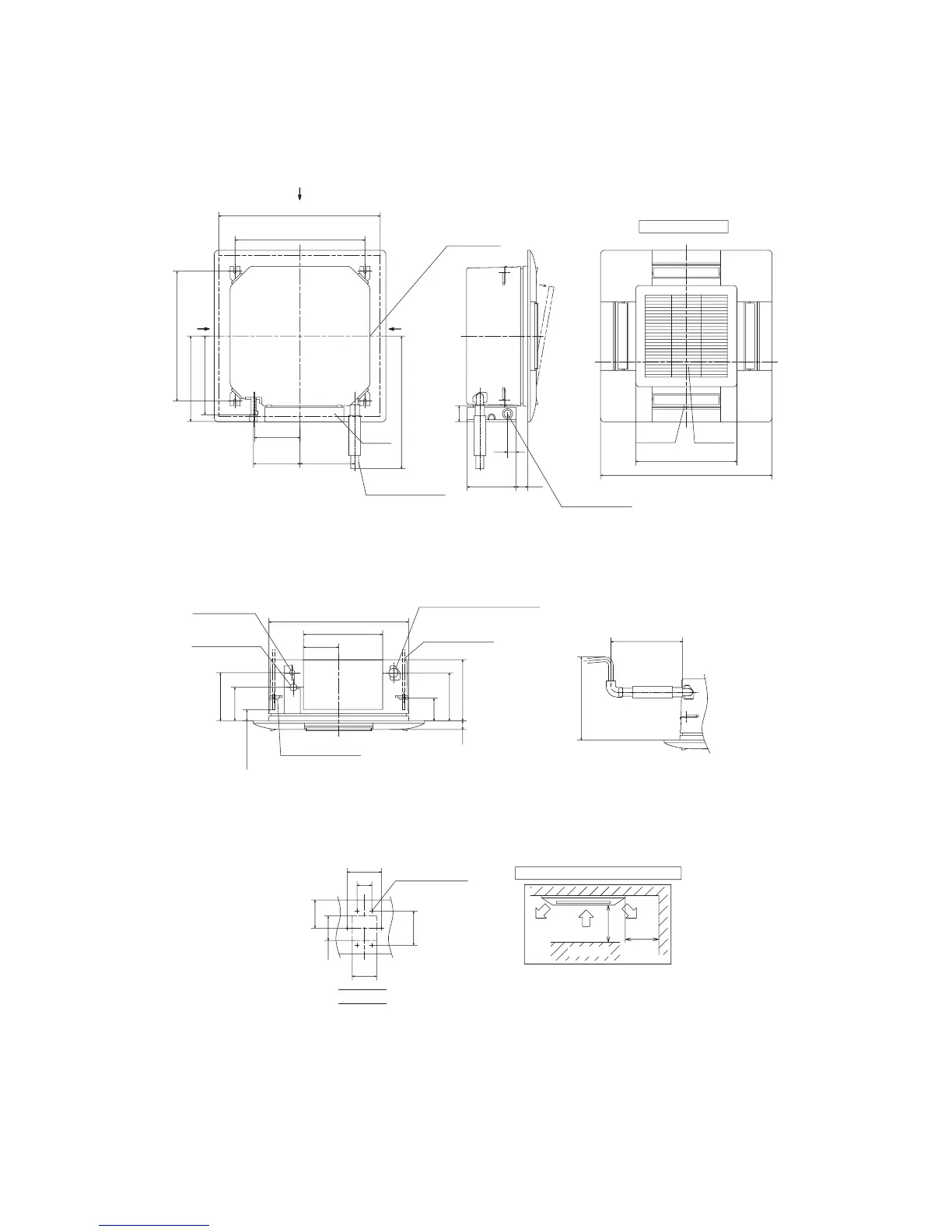

(b) Ceiling cassette-4 way type (FDTC)
Models FDTC22KXE6, 28KXE6, 36KXE6, 45KXE6, 56KXE6
VIEW A
A
A
A
144
323
▫570
135
195
35
91
194
248
185
190 223
321
348
530
Suspension bolts pitch
45
or more
600 or less
530 Suspension bolts pitch
▫660 (Ceiling hole size)
541
64
200 48
21
▫700
295~325
60
140
100
100
115
140
Lug for
suspension bolts
Control
box
Drain hose piece
Gas piping
Liquid piping
Suspension bolts
Drain
22,28:ø9.52
36,45,56:ø12.7
ø6.35
(Accessory)
(Installed at site)
(Connectable with VP20)
(M10 or M8)
(Max. Drain lift)
Air supply
Air return
grille
6-ø4
Holes for
tapping screws
Hole
Obstacle
1000 or more
1000 or more
Space for installation and service
Decorative Panel
Opening for
exit wiring
Unit:mm
Outlet air
opening for
ducting
▫413
The model name label is attached on the control
box lid inside the air return grille.
Prepare the connecting socket (VP20) on site.
This unit is designed for 2⳯2 grid ceiling.
If it installed on a ceiling other than 2⳯2 grid
ceiling, provide on inspection port on the control
box side.
Note (1)
(2)
(3)
Make a space of 4000 or more between
the units when installing more than one.
