273
-

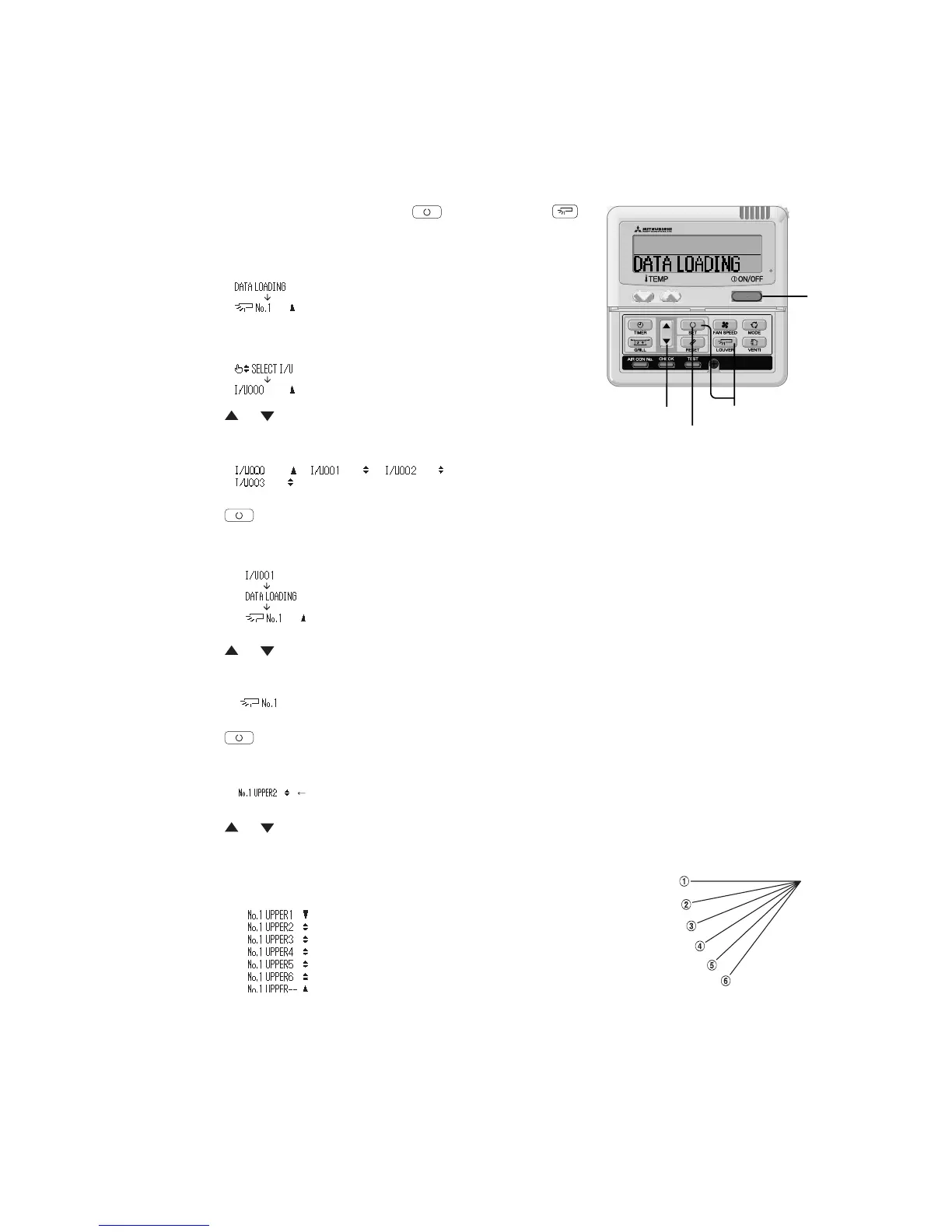

It is possible to change the movable range of the louver on the air outlet from the wired remote controller. Once the top and
bottom position is set, the louver will swing within the range between the top and the bottom when swing operation is chosen.
It is also possible to apply different setting to each louver.
1) Stop the air conditioner and press
SET button and
LOUVER button simultaneously for three seconds or more.
(ii) FDE series
The following is displayed if the number of the indoor units connected to
the remote controller is one. Go to step 4.
The following is displayed if the number of the indoor units connected to
the remote controller are more than one.
2) Press
or button. (selection of indoor unit)
Select the indoor unit of which the louver is set.
3) Press SET button. (determination of indoor unit)
Selected indoor unit is fixed.
4) Press or button. (selection of louver No.)
Select the louver No. to be set according to the right figure.
5) Press SET button. (Determination of louver No.)
The louver No. to be set is confirmed and the display shows the upper limit of the movable range.
6) Press
or button. (selection of upper limit position)
Select the upper limit of louver movable range.
“position 1” is the most horizontal, and “position 6” is the most downward.
“position --” is to return to the factory setting. If you need to change the setting
to the default setting, use “position --”.
“ ”
“ ”
“ ”
“ ”
“ ”⇔“ ”⇔“ ”⇔
“
”
[EXAMPLE]
“ ”
(displayed
for two seconds)
“ ”
“ ”
[EXAMPLE]
“ ” current upper limit position
[EXAMPLE] If No.1 louver is selected,
“ ” (the most horizotal)
⇔ “
”
⇔ “
”
⇔ “
”
⇔ “
”
⇔ “
” (the most downwards)
⇔ “
” (return to the default setting)
To Next Page
