(vii) Wiring-out position and wiring connection
● Electrical installation work must be performed according to the installation manual by an electrical installation service
provider qualified by a power provider of the country, and be executed according to the technical standards and other
regulations applicable to electrical installation in the country.
Be sure to use an exclusive circuit.
● Use specified cord, fasten the wiring to the terminal securely, and hold the cord securely in order not to apply unexpected
stress on the terminal.
● Do not put both power source line and signal line on the same route. It may cause miscommunication and malfunction.
● Be sure to do D type earth work.
● For the details of electrical wiring work, see attached instruction manual for electrical wiring work.

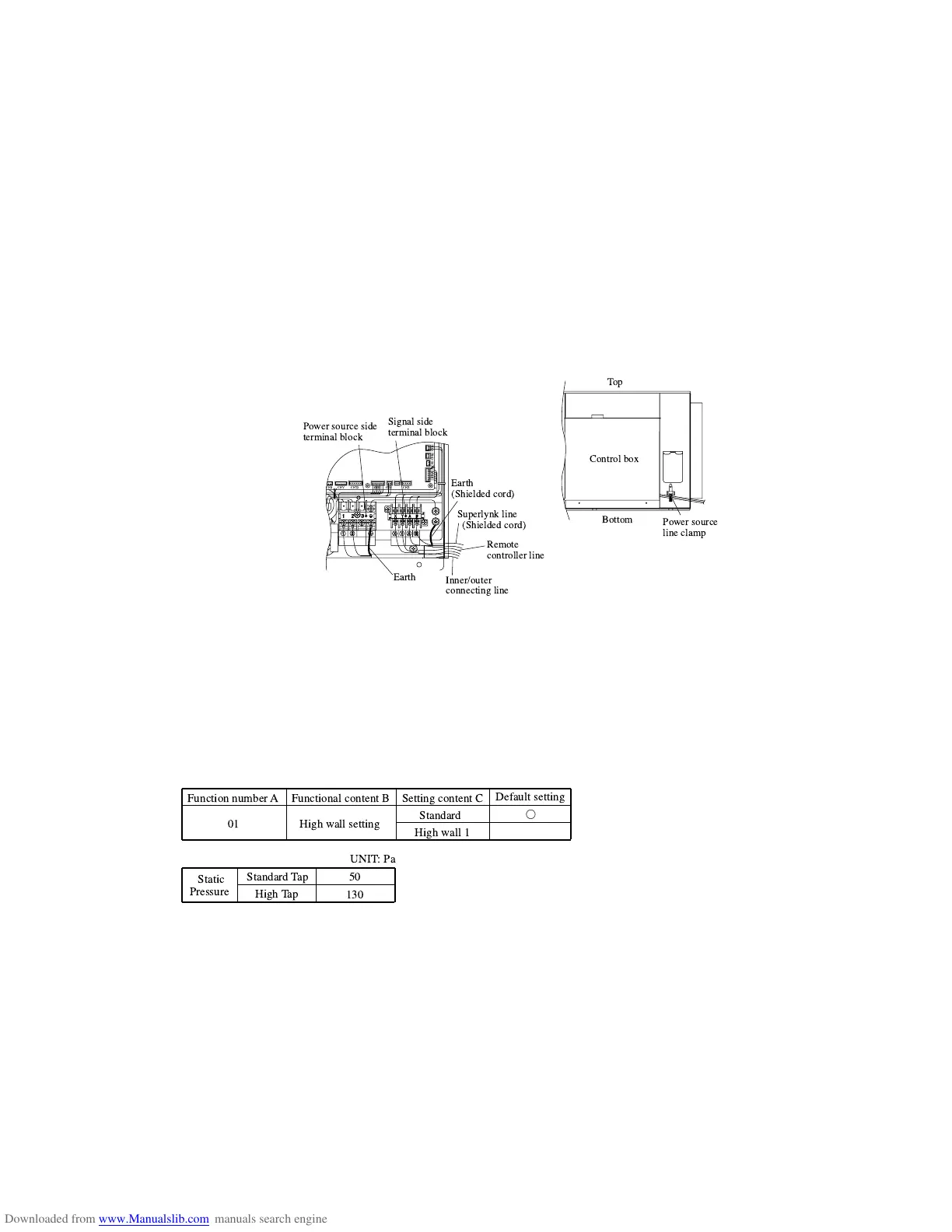

q Remove a lid of the control box (2 screws).
w Hold each wiring inside the unit and fasten them to terminal block securely.
e Fix the wiring with clamps.
r Install the removed parts back to original place.
(viii) Tap selection on blower unit (when the high peformance filter is used)
The fan tapís factory setting is ìStandard.î If you want to change it to the high static-pressure setting, you can avail yourself
of the following two methods. Use one of the two methods to set the fan tap.
Make sure to perform the functional setting with remote controller.
Select [Indoor function] in the functional setting mode, and change the function number [01]
[High wall setting].
For operation method, refer to the user’s manual of the remote controller.
! " #
$
% &! &'
(
)
