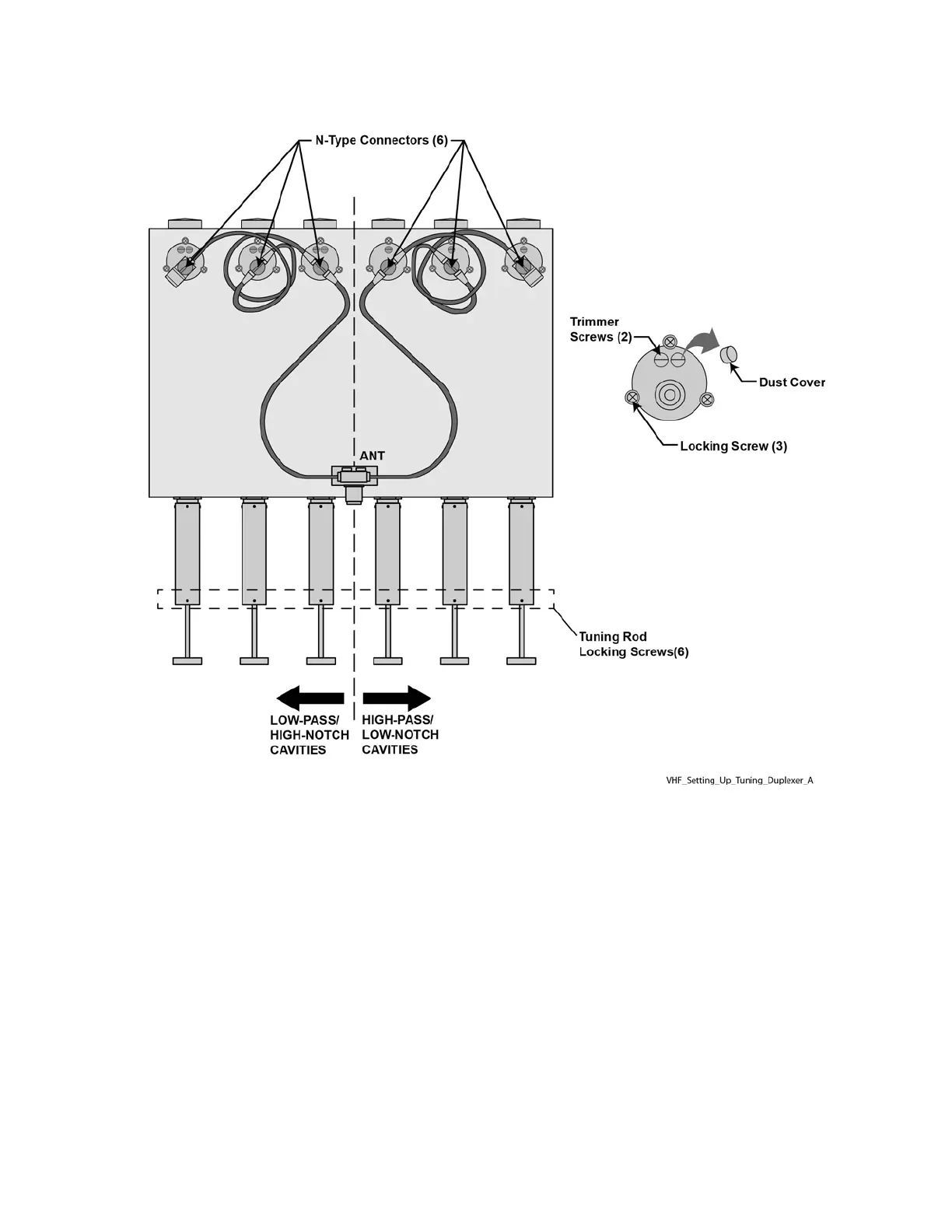

Figure 61: VHF Duplexer Tuning Setup
5.10.4.1.1
Setting Up for VHF Duplexer Tuning
Procedure:
1
Disconnect the six N-type connectors from each cavity.
2
For each cavity, unscrew and remove trimmer screw dust covers (9).
3
Using an Allen wrench, loosen the tuning rod locking screws (6).
MN003286A01-E
