9.3.2
Identifying Power Amplifier Hardware Generation
Label
GEN 1 and GEN 2 power amplifier modules can be identified by examining the physical hardware
label. GEN 2 modules have a light blue label with ‘GEN 2’ clearly noted on it, while GEN 1 modules
have a white label with no GEN identification.

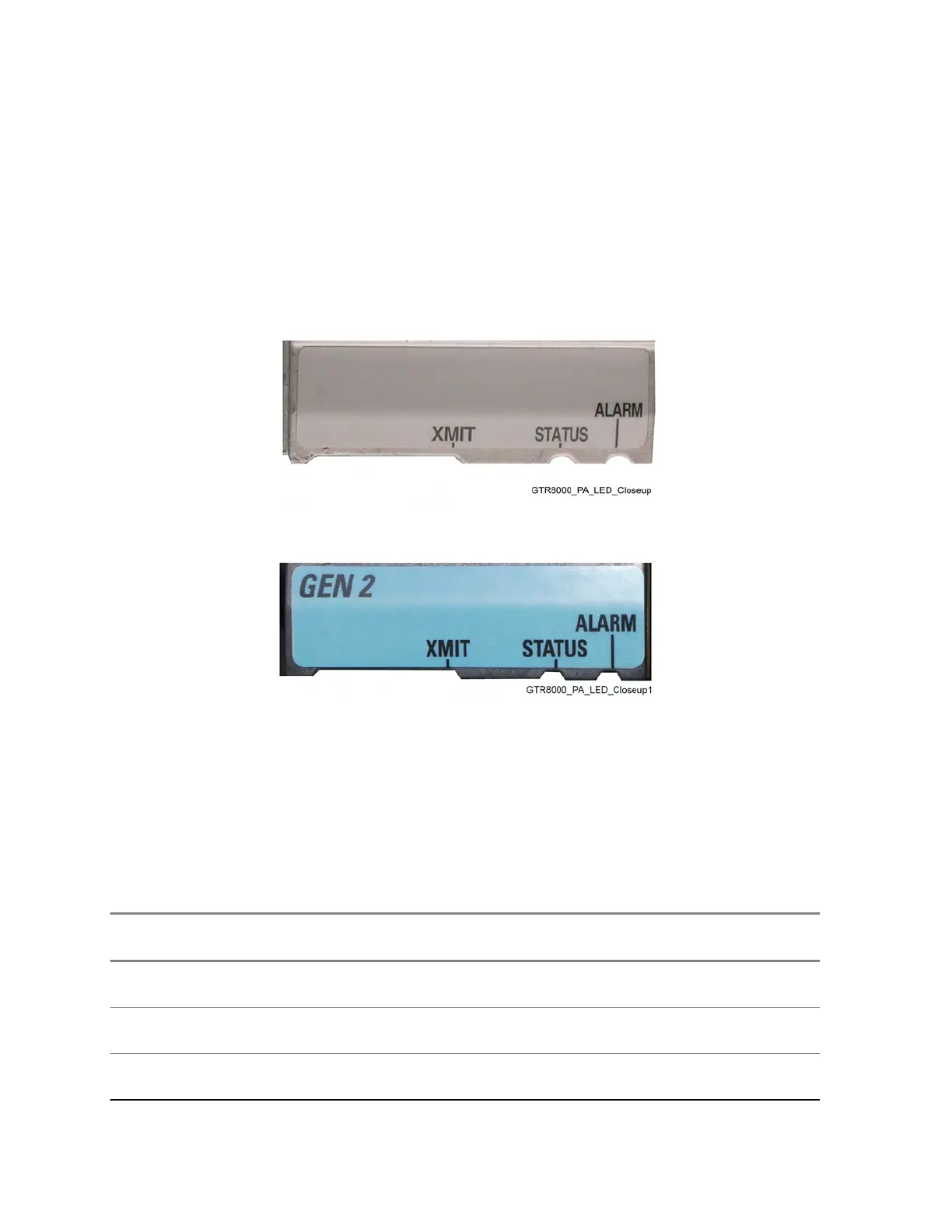

Figure 93: GEN 1 Power Amplifier Module
Figure 94: GEN 2 Power Amplifier Module
CSS
GEN 1 and GEN 2 power amplifier modules already installed in a system can be identified through the
Hardware Version screen of the Configuration/Service Software (CSS).
9.3.3
Power Amplifier FRU Number Mappings
Table 60: Power Amplifier FRU Number Mappings
Power Amplifier FRU Num-
ber
GEN 1 (Shipped before Nov
2013)
GEN 2 (Shipped starting Ju-
ly 2013)
Power Amplifier Module (Low-
Power/30W, 700/800 MHz)
N/A DLN6998A
Power Amplifier Module
(700/800 MHz)
DLN6567A DLN6895A
Power Amplifier Module (High-
Power/150W, 800 MHz)
N/A DLN6935A
MN003286A01-E
