5.10.5.4

UHF Duplexer High Notch Loop Assemblies Tuning Set Up

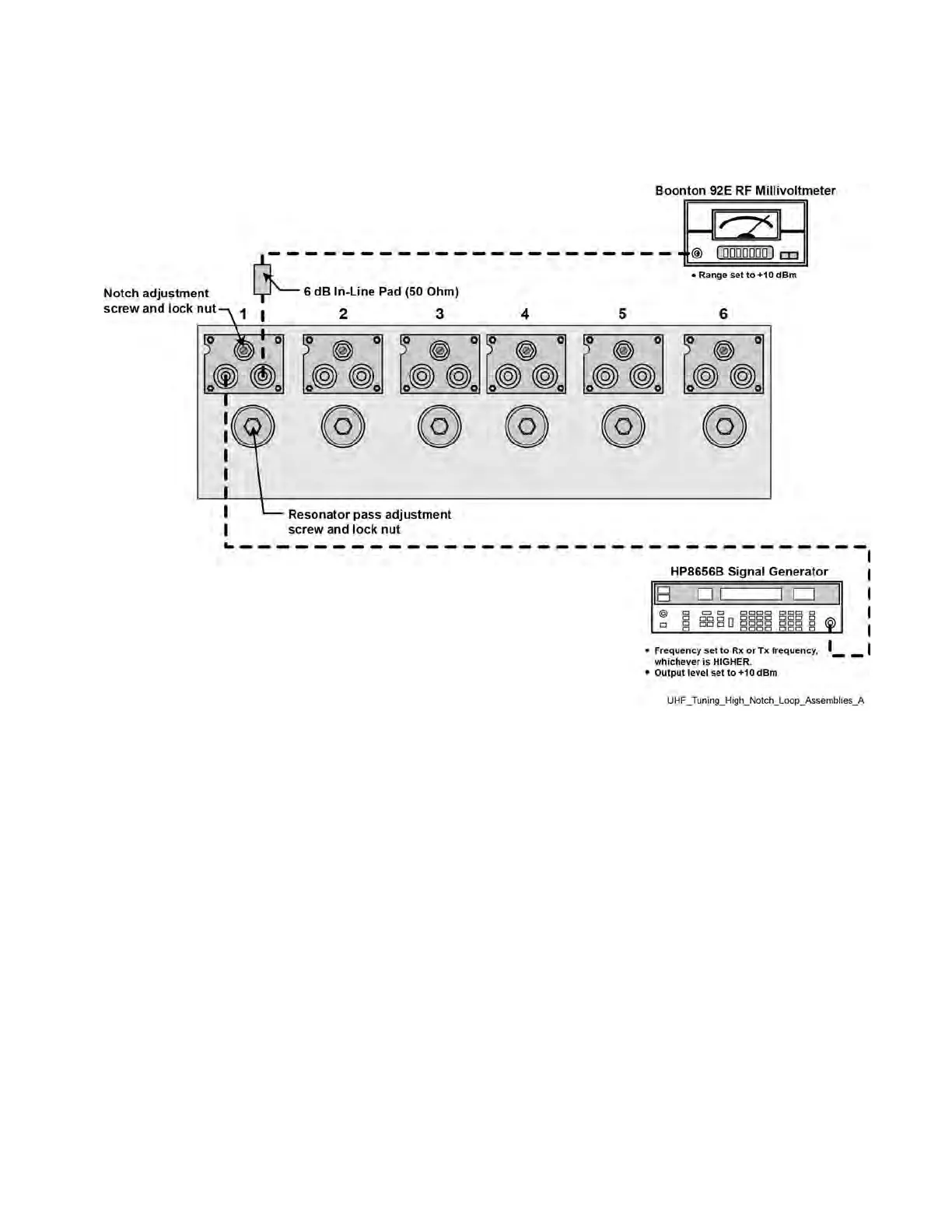

Figure 73: Test Equipment Set Up for Tuning UHF Duplexer High Notch Loop Assemblies

5.10.5.4.1

Tuning UHF Duplexer High Notch Loop Assemblies

Procedure:

1 Set up test equipment as shown in Figure 73: Test Equipment Set Up for Tuning UHF Duplexer

High Notch Loop Assemblies on page 179.

2 Using a screwdriver, adjust the notch adjustment screw for cavity # 1 to obtain a minimum

reading on the millivoltmeter. (Reduce the range on the millivoltmeter as necessary to reach true

minimum reading.)

3 Using an open-end wrench, carefully tighten the lock nut ensuring the notch adjustment screw

does not shift position.

4 Repeat steps 2 and 3 for cavities 2 and 3.

MN003286A01-E

Chapter 5: GTR 8000 Base Radio Optimization

179
