5.10.4.2

VHF Duplexer Low Pass Resonators Tuning Set Up

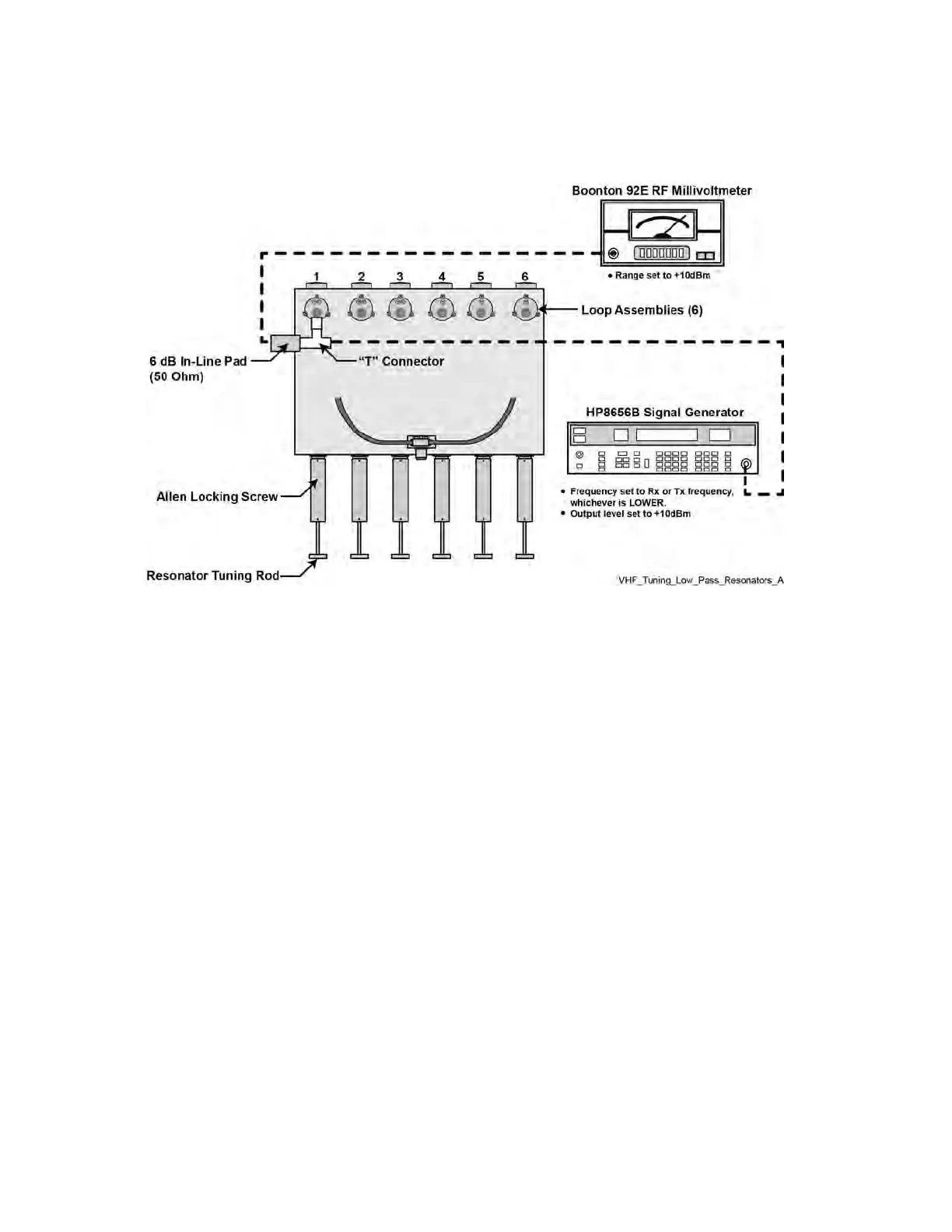

Figure 62: Test Equipment Set Up for Tuning VHF Duplexer Low Pass Resonator

5.10.4.2.1

Tuning VHF Duplexer Low Pass Resonators

Procedure:

1 Set up test equipment as shown in Figure 62: Test Equipment Set Up for Tuning VHF Duplexer

Low Pass Resonator on page 168.

2 Push or pull tuning rod for cavity #1 to obtain a PEAK reading on the millivoltmeter

3 Using the Allen wrench, tighten the locking screw.

4 Repeat steps 2 and 3 for cavities 2 and 3.
