b Connect service monitor to Low Pass duplexer input (cavity # 1).

c Connect terminator to cavity #6.

5.10.4.7

VHF Duplexer Isolation Verification Set Up

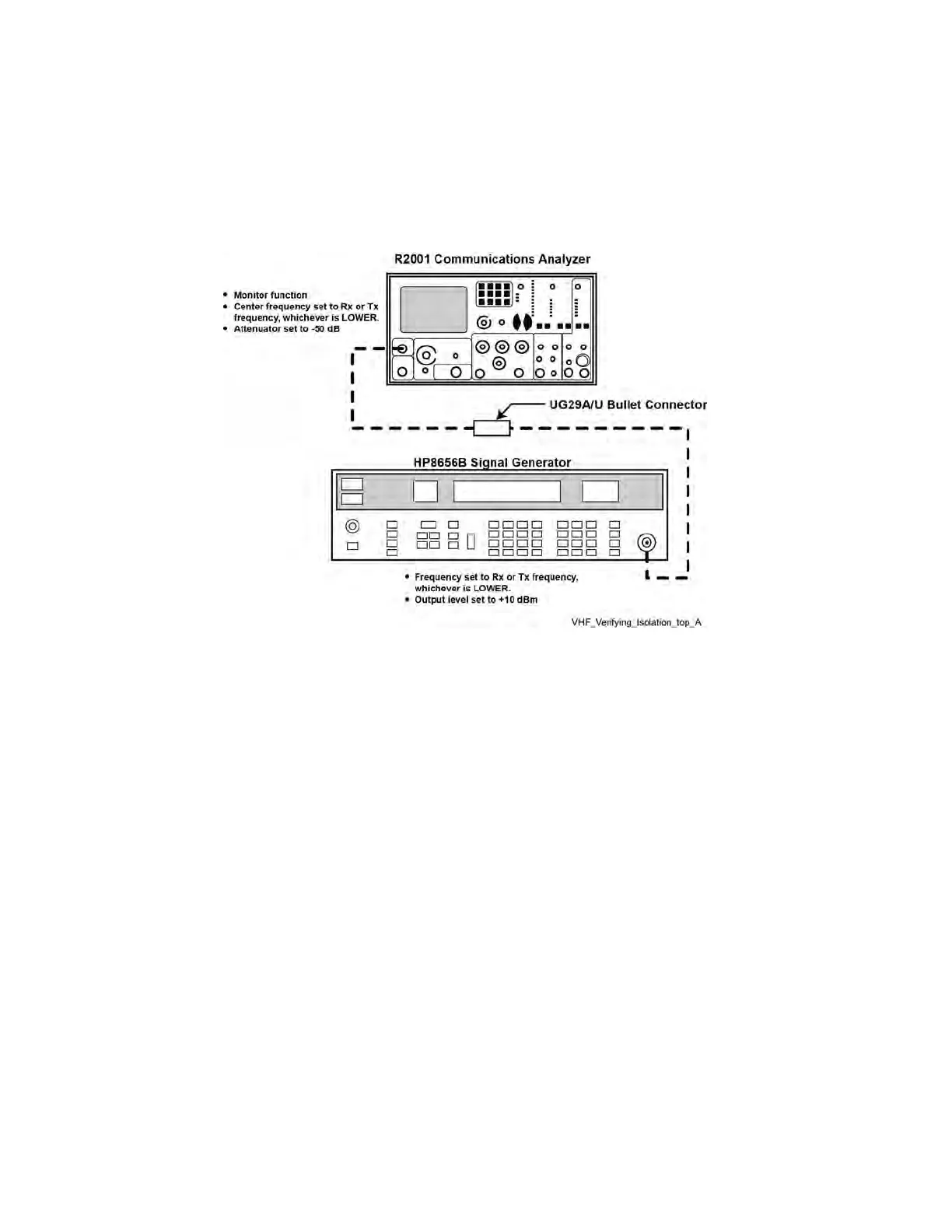

Figure 68: Verifying VHF Duplexer Isolation — Connecting Test Equipment

MN003286A01-E

Chapter 5: GTR 8000 Base Radio Optimization

174
