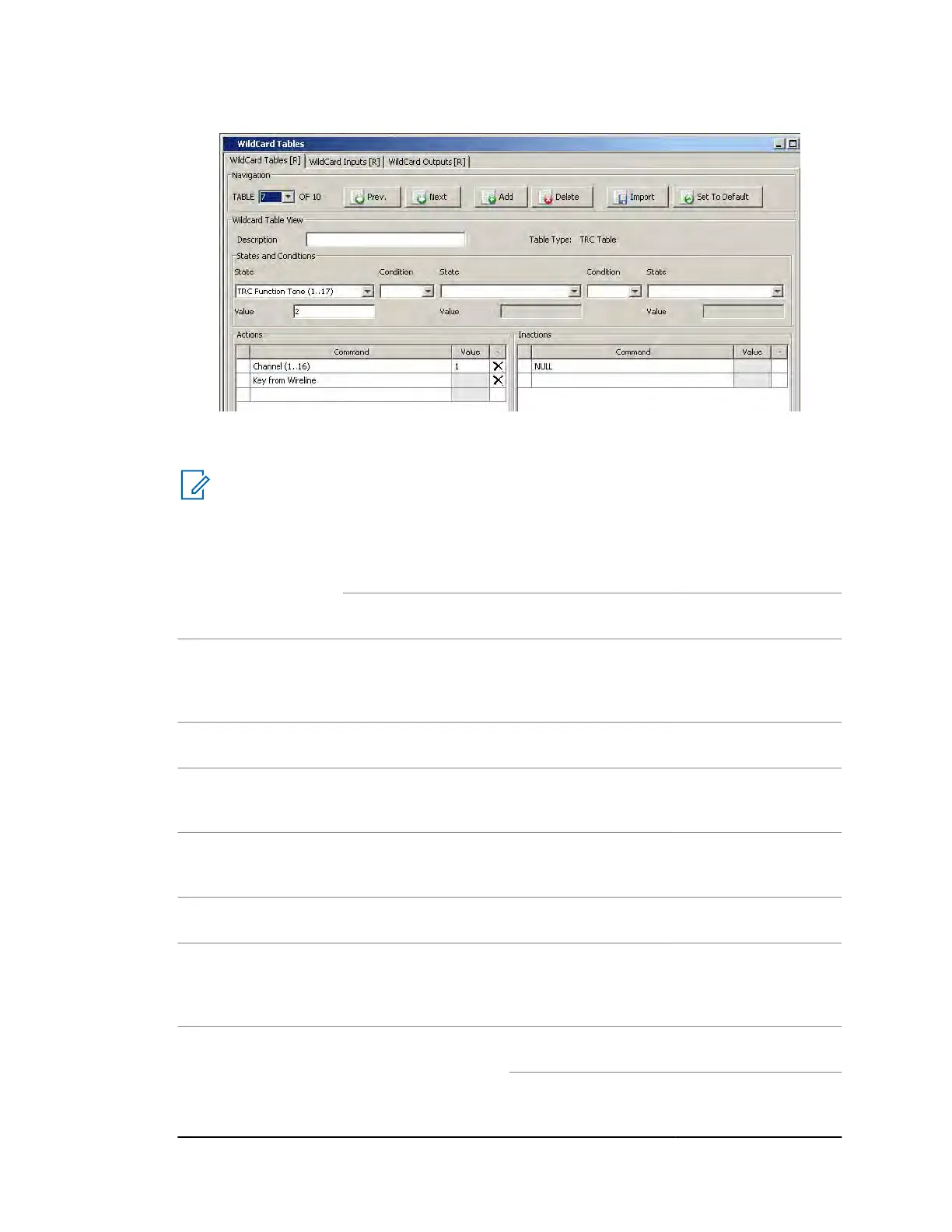

Figure 126: CSS - WildCard Tables Example
7 Click Yes to reset the WildCard Tables to their default structure. The following default WildCard
Tables are created:
NOTICE: WildCard Table numbers are arbitrary and shown for illustration purposes.
Memory size and the number of States and Commands in each table limit the maximum
number of WildCard tables.
Wild-
Card
Table
Descrip-
tion
States and Condi-
tion
Actions Inactions
State Value Com-
mand
Value Com-
mand
Value
1 In-cabi-
net RPT
Input 6 n/a In-cabi-
net Re-
peat ON
n/a In-Cabi-
net Re-
peat
OFF
n/a
2 Rx In-
hibit
Input 7 n/a RX IN-
HIBIT
n/a RX EN-
ABLE
n/a
3 External
PTT
Input 5 n/a Key
from Wi-
deband
n/a Dekey
from Wi-
deband
n/a
4 RD
STAT-
RX ACT
RX
Qualifi-
ers Met
n/a Set Out-
put
(1..12)
7 Clear
Output
(1..12)
7
5 Tx In-
hibit
Input 3 n/a TX IN-
HIBIT
n/a TX EN-
ABLE
n/a
6 TRC
Function
Tone
(1..17)
1 Monitor n/a NULL n/a
7 TRC
Function
(1..17)
2 Channel
(1..16)
1 NULL n/a
Key
from
Wireline
n/a n/a n/a
MN003286A01-E
Appendix A: Conventional
GTR 8000 Base Radio Option Kits
293
