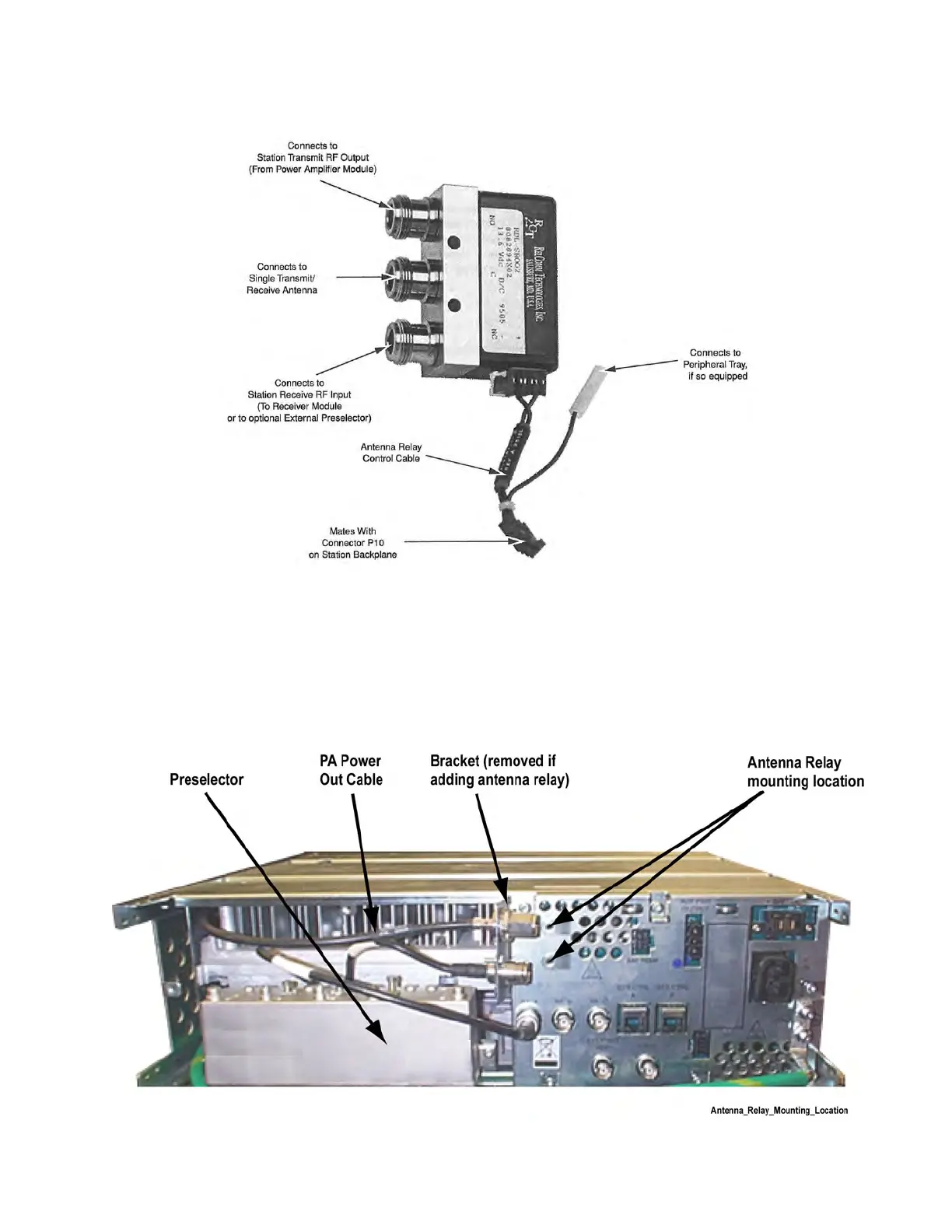

Figure 25: Antenna Relay Module Connections
2.3.11.1
Mounting Locations
The antenna relay module may be installed in either of two locations.
On base radios
not equipped
with the peripheral tray, the antenna relay is mounted on the backplane
cover.
Figure 26: Base Radio Backplane Mounting Location
MN003286A01-E
Chapter
2: GTR 8000 Base Radio Theory of Operation
77
