5.10.4.3

VHF Duplexer High Pass Resonators Tuning Set Up

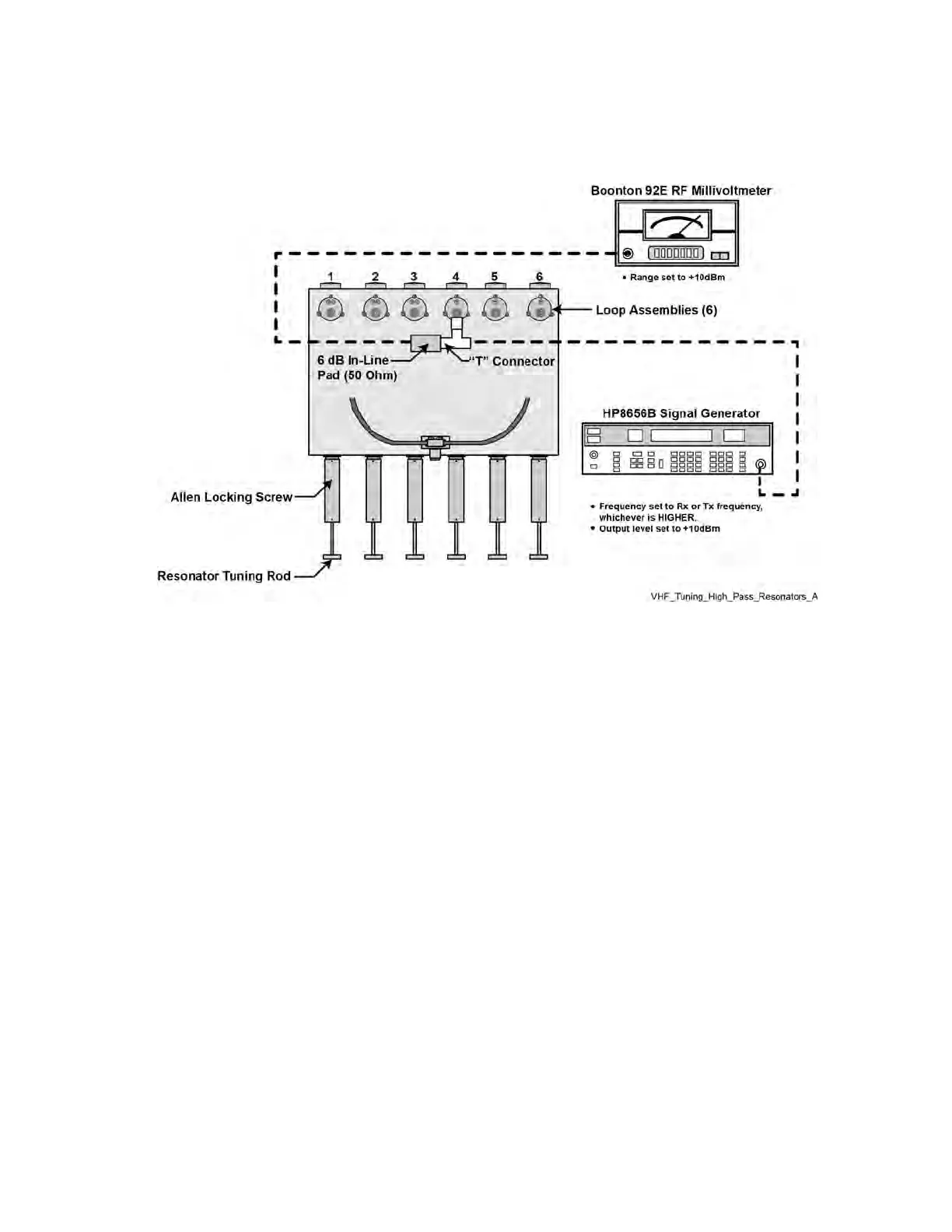

Figure 63: Test Equipment Set Up for Tuning VHF Duplexer High Pass Resonator

5.10.4.3.1

Tuning VHF Duplexer High Pass Resonators

Procedure:

1 Set up test equipment as shown in Figure 63: Test Equipment Set Up for Tuning VHF Duplexer

High Pass Resonator on page 169.

2 Push or pull tuning rod for cavity #4 to obtain a PEAK reading on the millivoltmeter

3 Using the Allen wrench, tighten the locking screw.

4 Repeat steps 2 and 3 for cavities 5 and 6.
