Motorola ASTRO 25 GTR 8000 User Manual

Power Amplifier FRU Num-
ber
GEN 1 (Shipped before Nov
2013)
GEN 2 (Shipped starting Ju-
ly 2013)
Power Amplifier Module (High-
Power UHF R1, 380–435
MHz)
DLN1396A DLN6891A
Power Efficiency Power Ampli-
fier Module (High-Power UHF
R1, 380–435 MHz)
DLN6788A DLN6891A
Power Amplifier Module (Low-
Power/30W UHF R1, 380–435
MHz)
N/A DLN7026A
Power Amplifier Module (UHF
R2, 435–524 MHz)
DLN1347A DLN6896A
Power Efficiency Power Ampli-
fier Module (UHF R2, 435–524
MHz)
DLN6792A DLN6896A
Power Amplifier Module (VHF,
136–174 MHz)
DLN1377A DLN6897A
Power Amplifier Module (High-
Power/100W VHF, 136–174
MHz)
DLN6725A TBD
Power Amplifier Module (900
MHz)
DLN6779A DLN6894A
9.4
Replacing a Transceiver Module
Figure 96: GTR 8000 Base Radio Modules
on page 232 shows the captive screws that secure the
transceiver module to the chassis in the standalone base radio configuration.

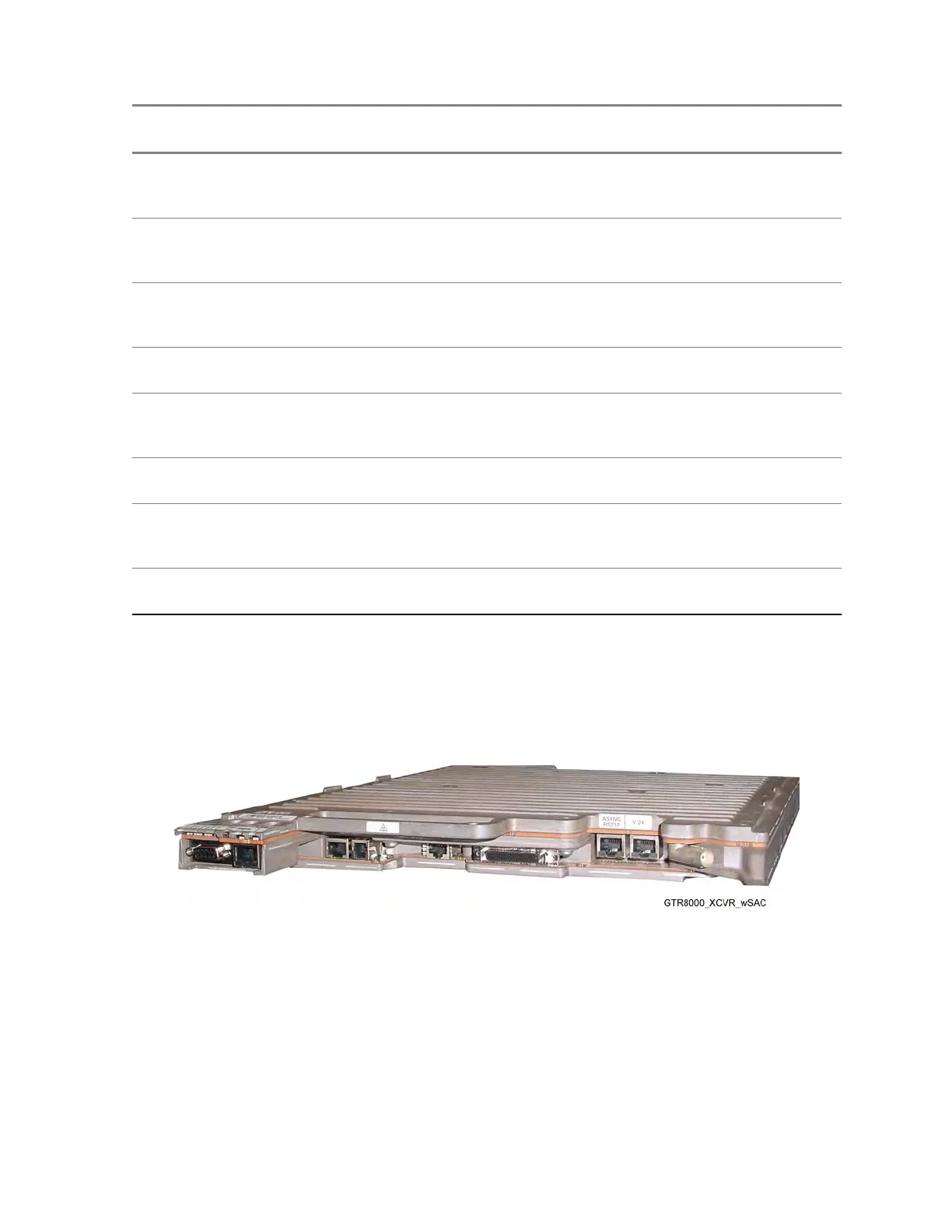

Figure 95: Transceiver Module
MN003286A01-E
Chapter
9: GTR 8000 Base Radio FRU Procedures
231
