field installation. For spacing equipment or placing peripherals between base radios, additional slides
rails can be ordered.
The cabinets have knockouts on the top and bottom that provide space and separation of cable types
when routing the cables. Follow the Motorola Solutions Standards and Guidelines for Communication
Sites manual for the multiple knockouts for the different cable types as shown in Figure 33: Cabinet
Dimensions
on page 96. The doors on both cabinets are provided with standard locks (key# 2135),
which come with two keys per lock. Each door can also be detached and mounted on a reverse
direction.
3.4.2.1
Floor Mounting the Cabinet Version of the GTR 8000 Base Radio
Securely fasten the cabinet to the floor or other rigid surface capable of supporting the load of the
cabinet.

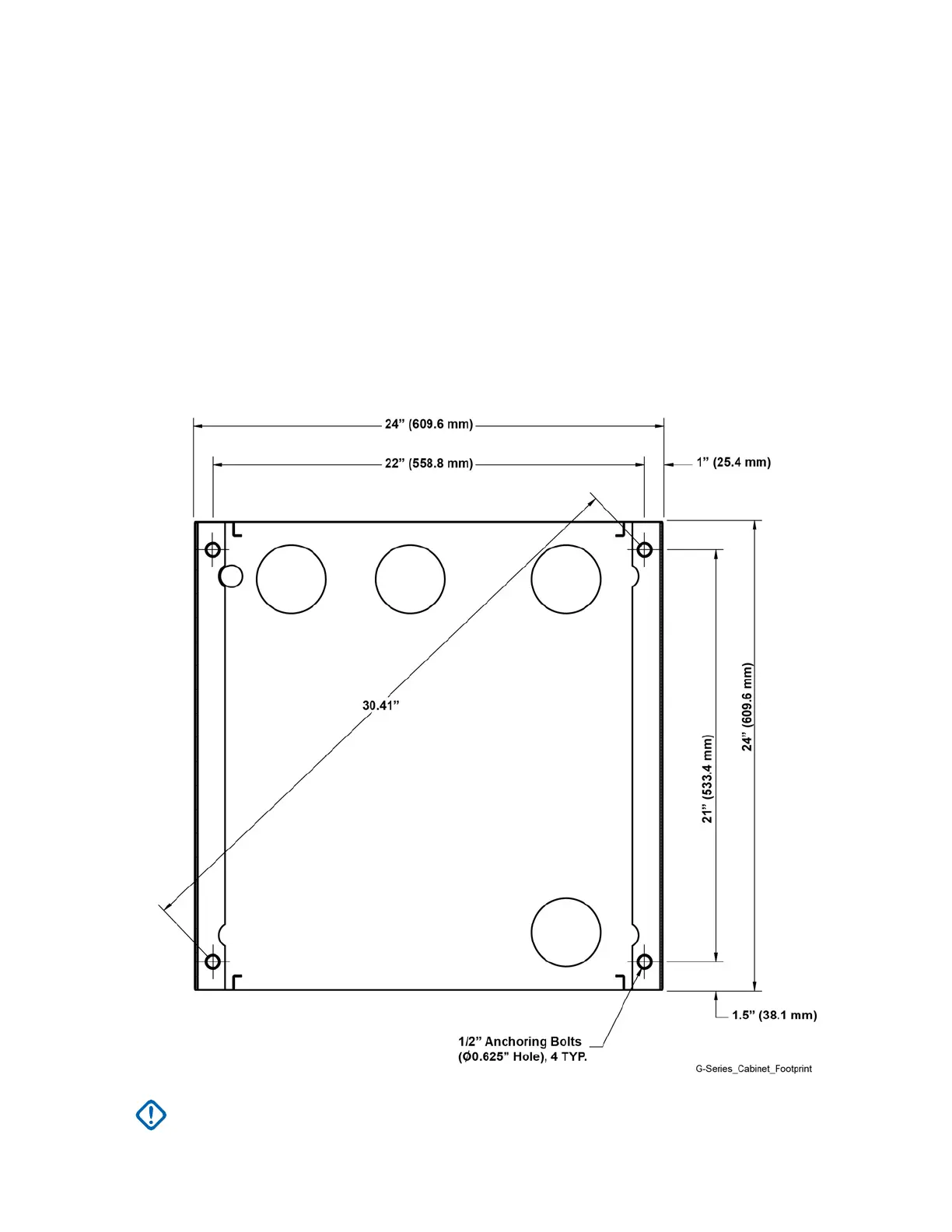

Figure 32: GTR 8000 Base Radio (Cabinet Version) – Floor Mounting Detail
IMPORTANT: The four 5/8 in. holes in the top of the cabinet are for stacking cabinets and are
not intended for strength when lifting a cabinet.
MN003286A01-E
Chapter
3: GTR 8000 Base Radio Installation
95
To Next Page
