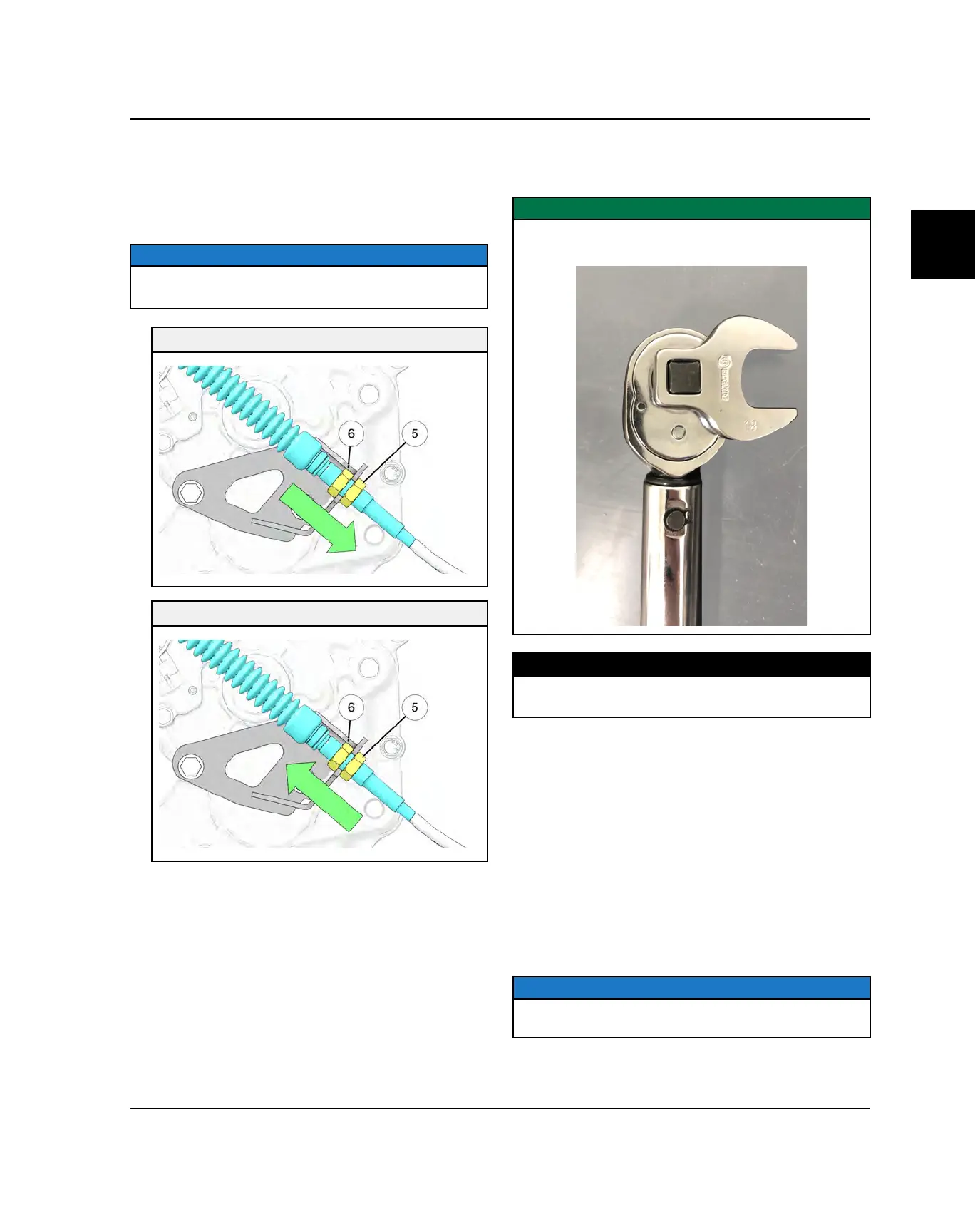

6. With the cable removed from the bracket, turn the
upper jam nut
y
to adjust the cable. Moving the
upper jam nut
y
closer to the shift cable boot creates
a larger gap in high. Moving the upper jam nut
y
away from the shift cable boot creates a larger gap in
park.
NOTICE
1 full turn of the adjustment nut
y
equals approximately
1 mm of dash gap.
CLOSER TO DASH IN HIGH GEAR
CLOSER TO DASH IN PARK
7. Reinstall the cable in the bracket.
8. While holding the upper jam nut
y
use a crows foot
to tighten the lower jam nut
t
. Torque to
specification.
IMPORTANT
When setting torque using a crows foot, the socket
must be at a 90° angle to the torque wrench as shown.
TORQUE
Lower Jam Nut:
13 ft-lbs (18 N·m)
9. After adjustment verify there is no contact with the
dash in both Park/High. If the shifter is still contacting
the dash, repeat the adjustment procedure until there
is no contact with the dash.
10.Reinstall the rubber bezel.
11. With the engine off, check the following:
• Shifter fully engages all gears.
• Dash is not moving when shifting into Park/High
FRONT GEARCASE FLUID LEVEL
INSPECTION
NOTICE
It is important to follow the front gearcase maintenance
intervals described in the Periodic Maintenance Chart.
The front gearcase fluid level should be checked and
changed in accordance with the maintenance schedule.
MAINTENANCE
