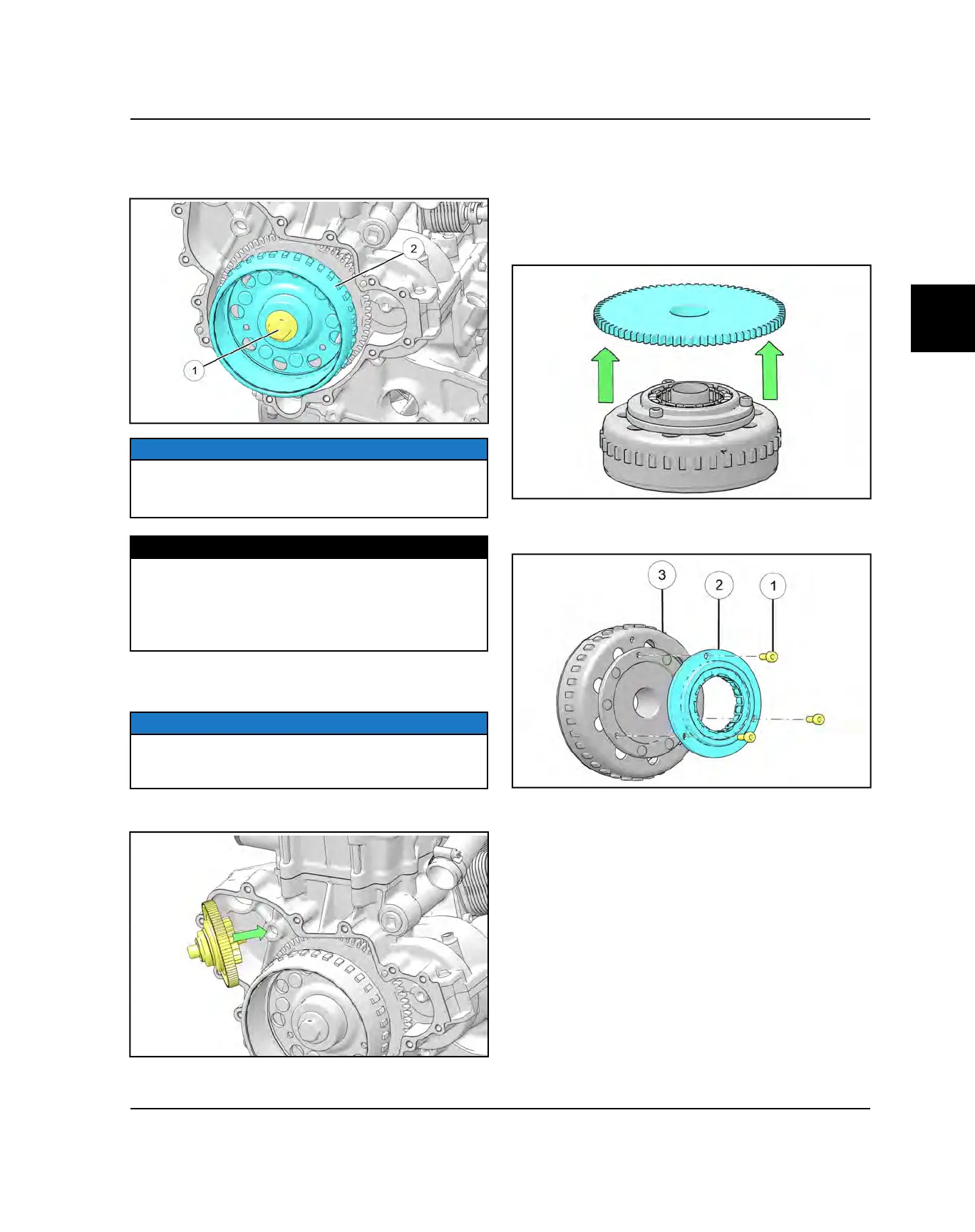

6. Install flywheel retaining bolt
q
. Using a
commercially available strap wrench , hold flywheel
w
and torque the retaining bolt to specification.
NOTICE
If the Cylinder Holding & Camshaft Timing Plate (PU-
50563) is installed, remove it before tightening the
flywheel.
TORQUE
Flywheel Retaining Bolt:
Step 1: Torque to 129 ft-lbs (175 Nm)
Step 2: Back out bolt 180°
Step 3: Torque to 129 ft-lbs (175 Nm)
7. Wipe off excess Loctite and let stand for 1 hour
before starting engine.
NOTICE
Loctite cures with time, the longer the unit is able to
stand before starting the engine, the stronger the joint
will be.
8. Install the starter torque limit gear as an assembly.
STARTER ONE-WAY CLUTCH SERVICE
REMOVAL
1. Remove the flywheel. Refer to Flywheel Service page
3.72.
2. Lift up to remove starter one-way gear from thew
flywheel assembly.
3. Remove the three fasteners
q
securing the one-way
clutch
w
to the flywheel
e
.
