9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.11

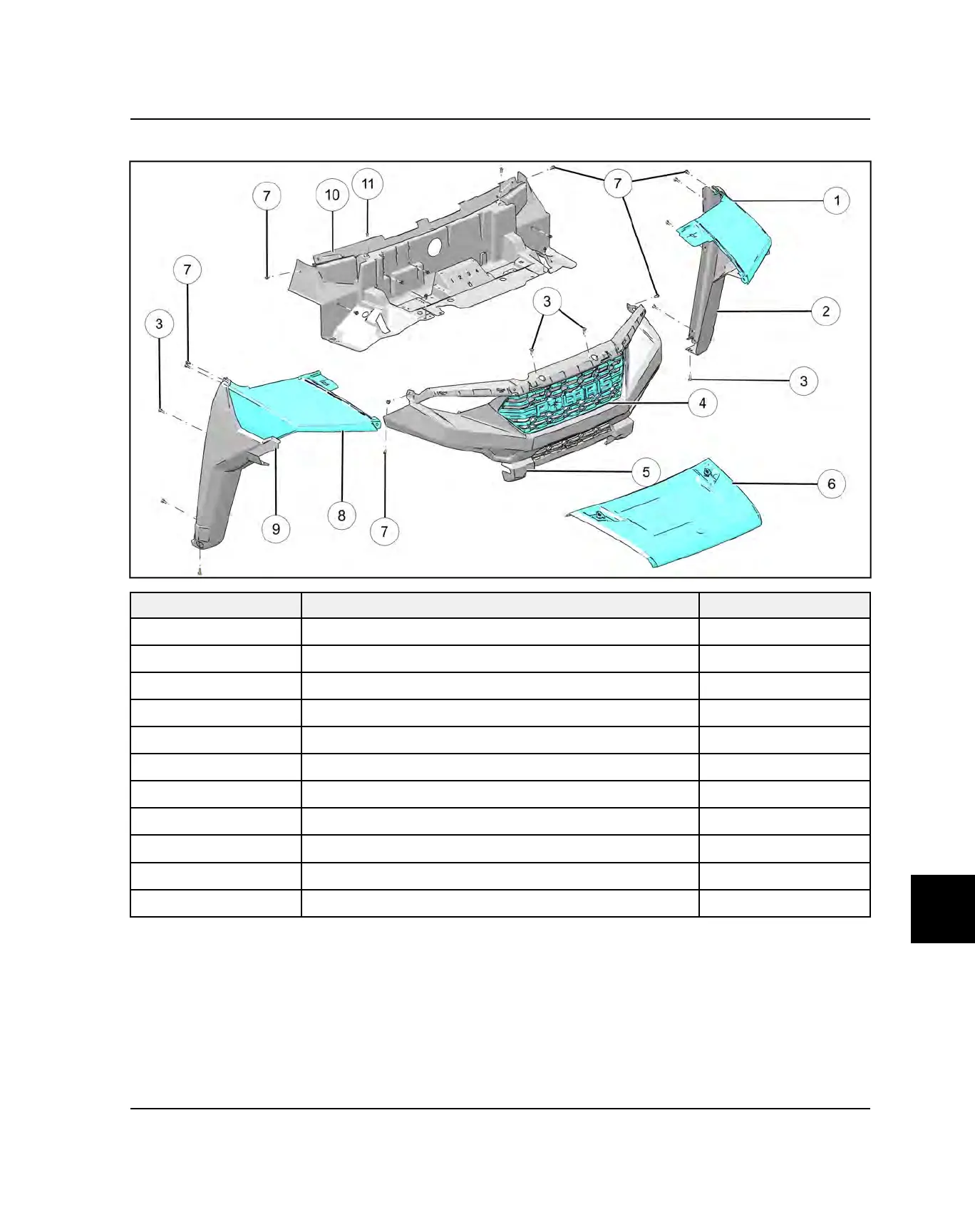

FRONT BODY ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Left Front Fender NA
w
Left Front Fender Fare NA
e
Body Fastener: M6 x 1.0 x 25 42 in-lbs (5 Nm)
r
Front Grill NA
t
Front Fascia NA
y
Hood NA
u
Push Rivet NA
i
Right Front Fender
NA
o
Right Front Fender Flare
NA
a
Under Hood Liner NA
s
Hood Liner Fastener: M6 x 1.0 x 20
42 in-lbs (5 Nm)
BODY / FRAME
