ENGINE TIMING
INSPECTION
1. Remove the Crankshaft Position Sensor. Refer to
CPS Replacement page 4.11.
2. Remove the valve cover. Refer to Valve Cover
Service page 3.35.
3. Rotate the engine until the alignment mark is visible
through the CPS hole.

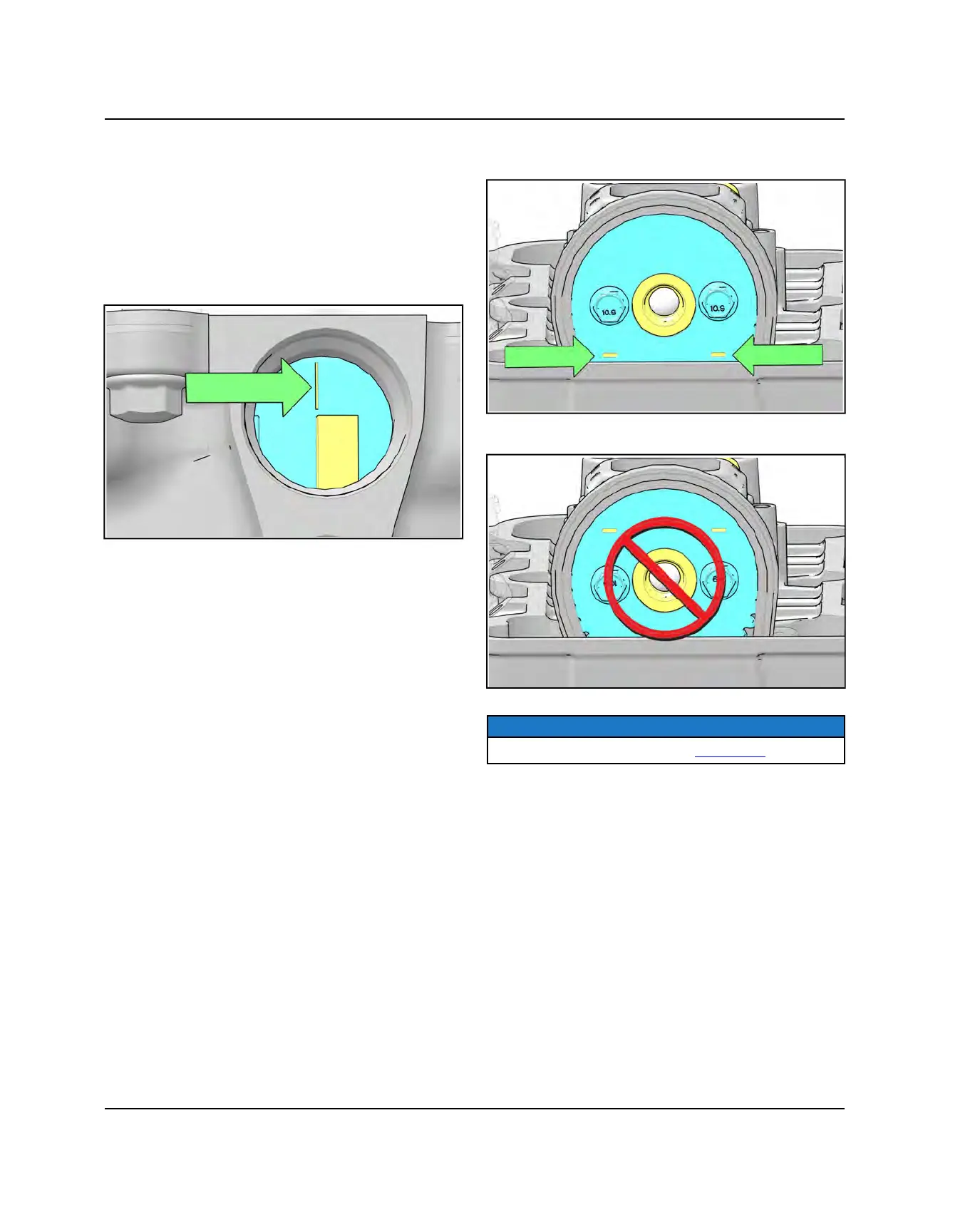

4. Verify offset alignment marks are located parallel to
the cylinder head as shown below.
• Incorrect Timing
NOTICE
If timing is incorrect, proceed to Adjustment page 3.33.
5. Install the valve cover. Refer to Valve Cover Service
page 3.35.
6. Install the Crankshaft Position Sensor. Refer to CPS
Replacement page 4.11.
