Polaris RANGER 1000 2020 Service Manual

9.22
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

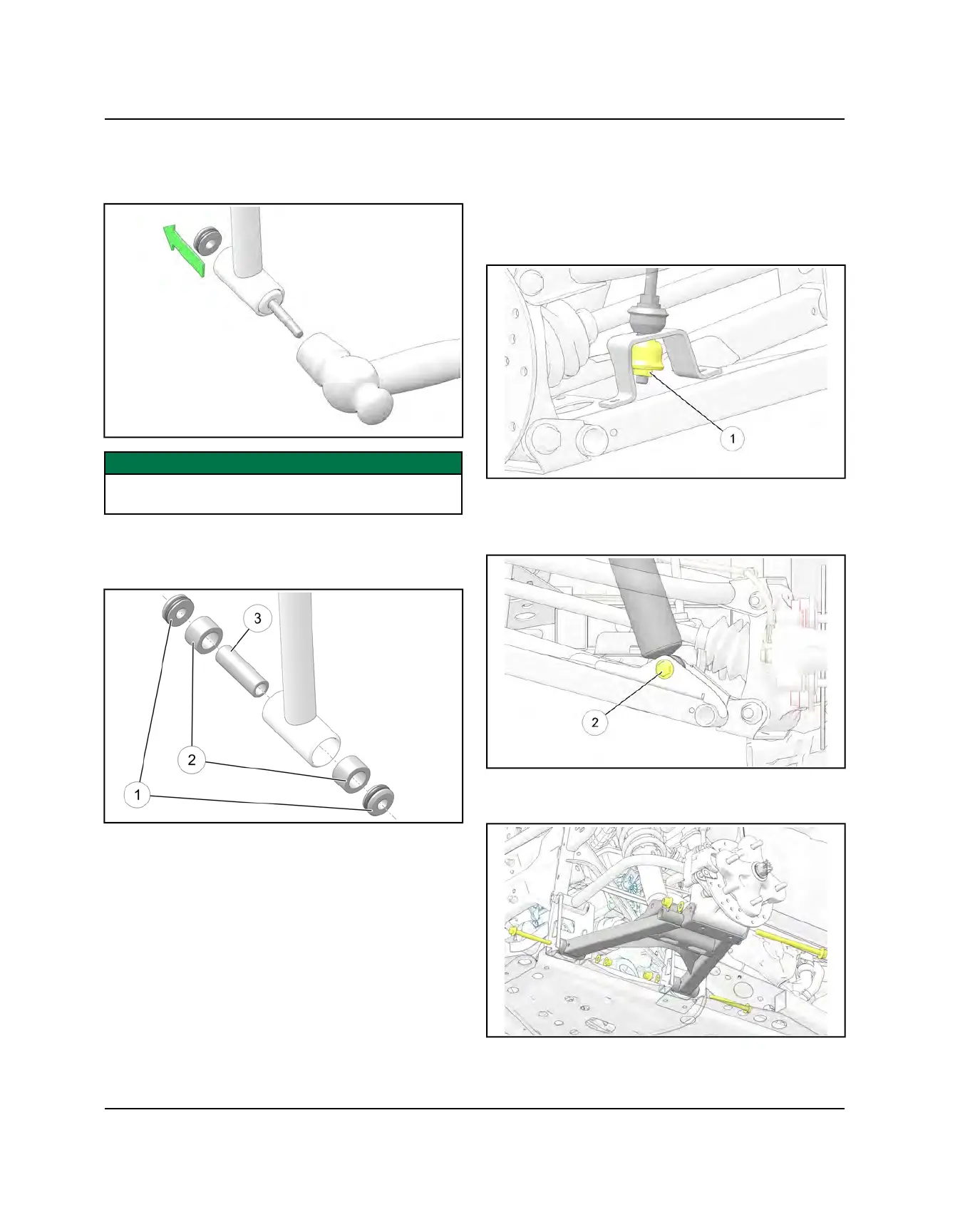

A-ARM BUSHING REPLACEMENT
1. Place a small punch in the opening of one Pivot Cap
and drive the opposite Pivot Cap out.
IMPORTANT
Be careful not to damage the A-Arm while using the
punch and hammer.
2. Install new Pivot Cap
q
, Bushings
w
, and Pivot Shaft
e
into new A-arm. A light press force may be
needed..
REAR LOWER A-ARM REMOVAL
1. Properly lift and support the vehicle by the frame.
2. Remove the four nuts retaining the rear stabilizer bar
to the frame.
3. Remove the nut
q
from the lower portion of the
stabilizer bar link.
4. Remove the four wheel nuts and remove the wheel.
5. Remove the fastener
w
retaining the lower portion of
the rear shock to the lower A-arm.
6. Remove the fastener retaining the lower A-arm to the
bearing carrier and frame.
7. Remove the lower A-arm from the vehicle.
STEERING / SUSPENSION
