9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
4.27
OXYGEN SENSOR
OXYGEN SENSOR INFORMATION
• The oxygen sensor, located on the exhaust pipe
before the muffler, uses a 4 wire heated element.
First, verify if there are any stored codes for the oxygen
sensor.
NOTICE
The ECU must first run though the O2 sensor time
delay before a trouble code will be set. This may take
several minutes at idle to occur.
Short drive cycles and cold temperatures will both affect
the delay time of the O2 sensor (increases the delay).
The delay time ensures the oxygen sensor heater has
run long enough to provide accurate data.

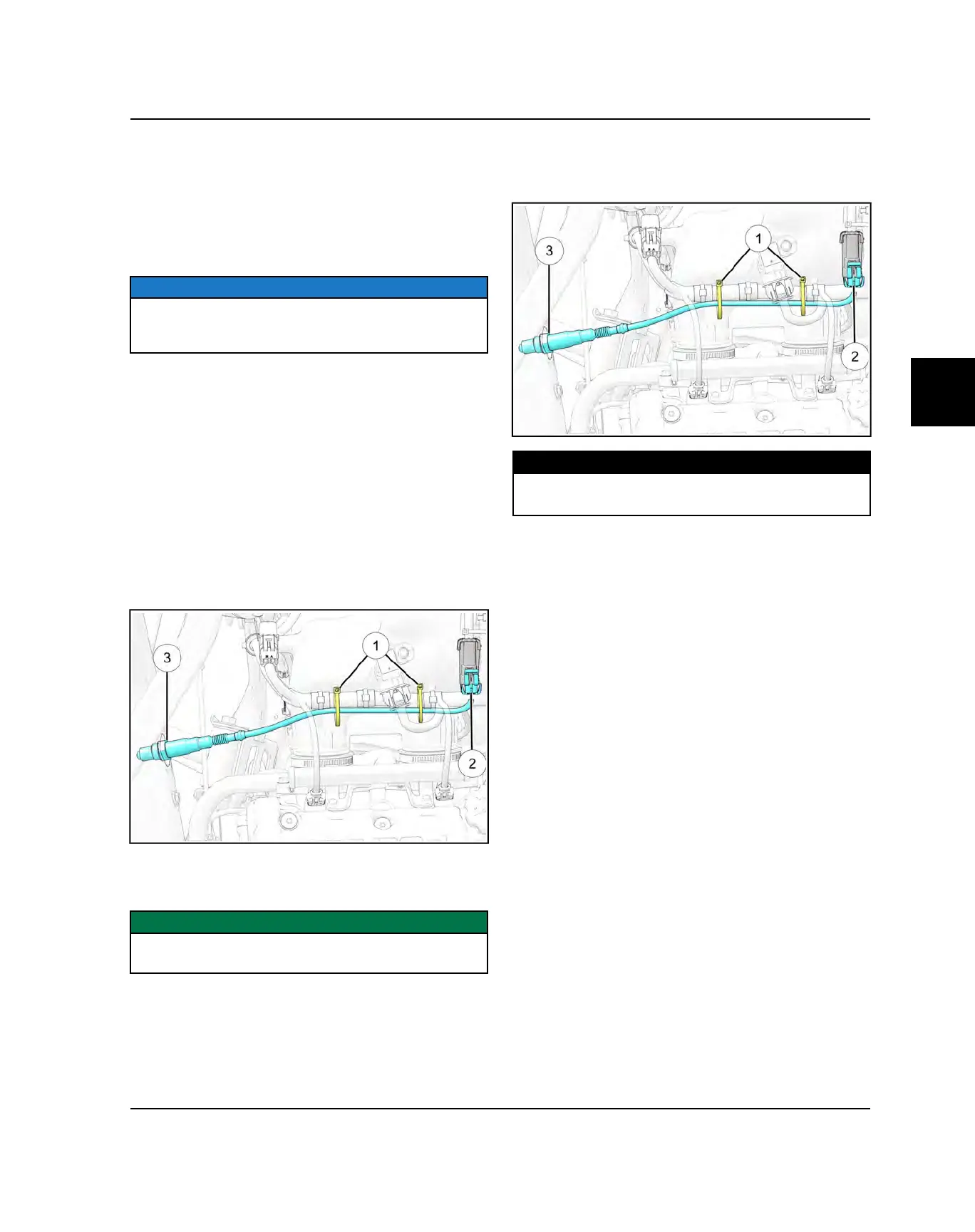

OXYGEN SENSOR SERVICE
REMOVAL
1. Cut the zip ties
q
securing the oxygen sensor
harness to the vehicle harness.
2. Disconnect the oxygen sensor connector
w
.
3. Loosen the oxygen sensor
q
and remove from the
exhaust pipe.
INSTALLATION
1. Apply anti-seize to the O2 sensor threads.
IMPORTANT
Only apply anti-seize to the sensor threads. Do NOT
apply anti-seize to the O2 sensor bulb.
2. Install the oxygen sensor
q
into the exhaust pipe and
torque to specification.
TORQUE
Oxygen Sensor:
18 ft-lbs (24 Nm)
3. Install new zip ties
q
around the oxygen sensor
harness and vehicle harness.
4. Connect the oxygen sensor connector
w
.
ENGINE ELECTRICAL
