3.70
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
9. The table below lists the big end bore diameter
specifications.
BEARING SELECTION CHART — ROD BEARINGS
CONNECTING ROD BIG END BORE
DIAMETERS
1 2 3
1.7318 -
1.7321"
(43.989 -
43.996 mm)
1.7321 -
1.7323"
(43.996 -
44.003 mm)
1.7323 -
1.7326"
(44.003 -
44.010 mm)
10.Whether using new connecting rods or re-installing
the original ones, refer to the bearing selection chart
provided in the “Connecting Rod Bearing
Selection” page 3.9 procedure in this chapter.
STATOR COVER SERVICE
REMOVAL

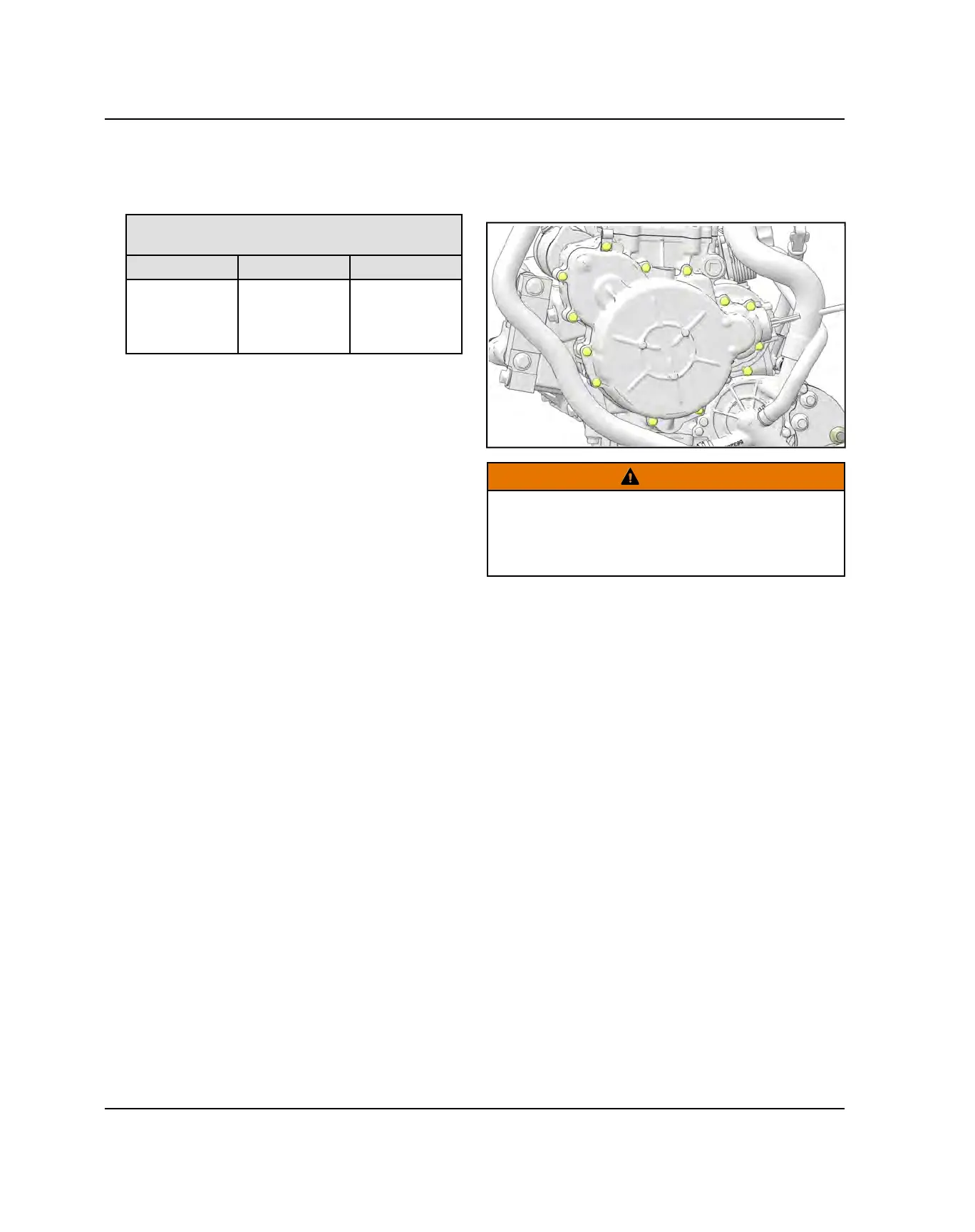

1. Remove the thirteen screws retaining the stator
cover.
WARNING
The flywheel contains powerful magnets. Use caution
when removing and installing the stator cover. DO NOT
place fingers between cover and crankcase at any time
during the removal / installation process or injury could
result.
ENGINE / COOLING / EXHAUST
