11.10
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

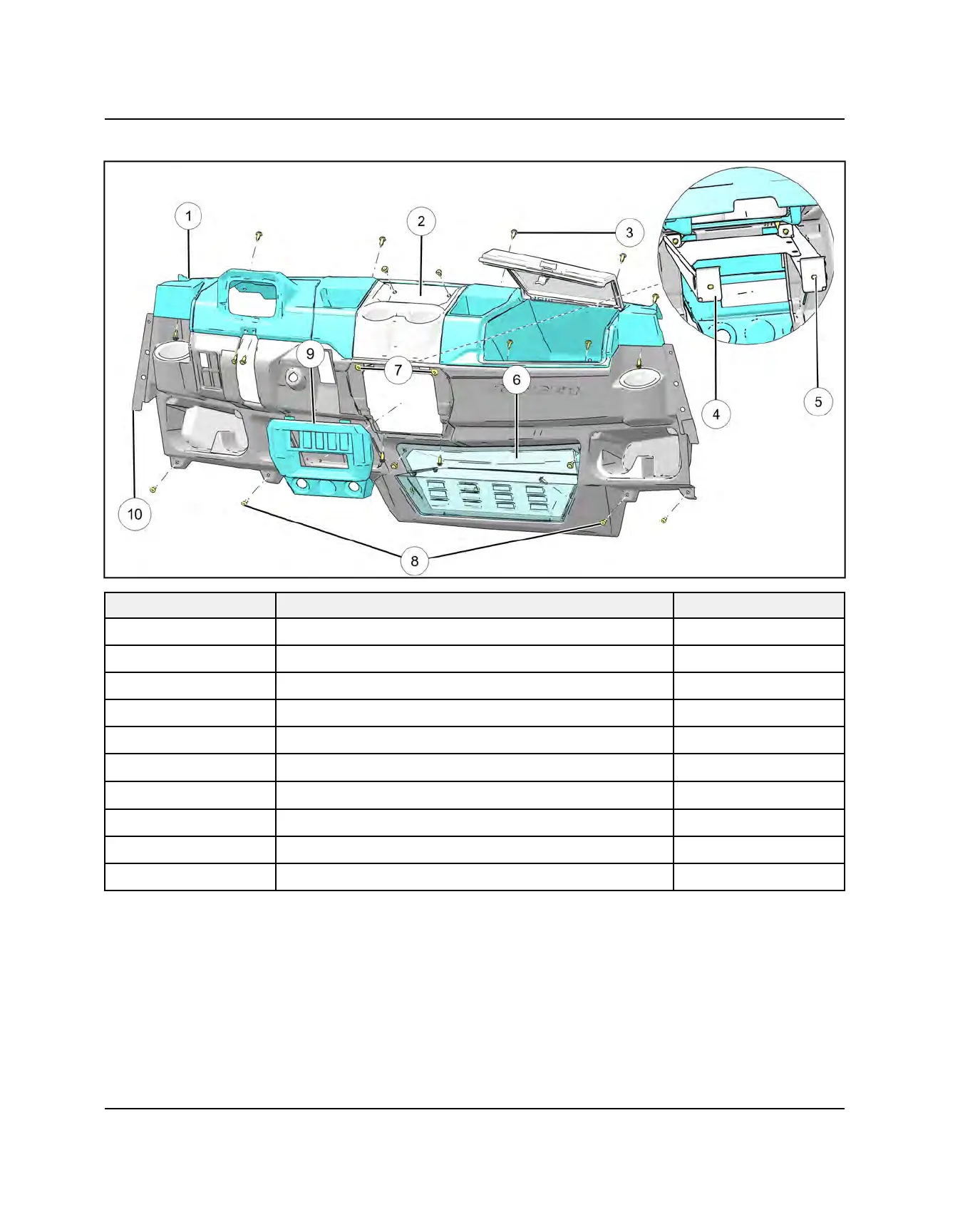

DASH PANEL ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Upper Dash Panel
NA
w
Center Console Trim NA
e
Push Rivet NA
r
Dash Bracket NA
t
Lower Dash Panel Fastener: M6 x 1.0 x 20
6 ft-lbs (8 Nm)
y
Lower Storage Bin
NA
u
Dash Fastener: M6 x 1.0 x 25
42 in-lbs (5 Nm)
i
Lower Dash Panel Screw: 14 x 3/4
22 in-lbs (2.5 Nm)
o
Center Dash Trim NA
a
Lower Dash Panel NA
