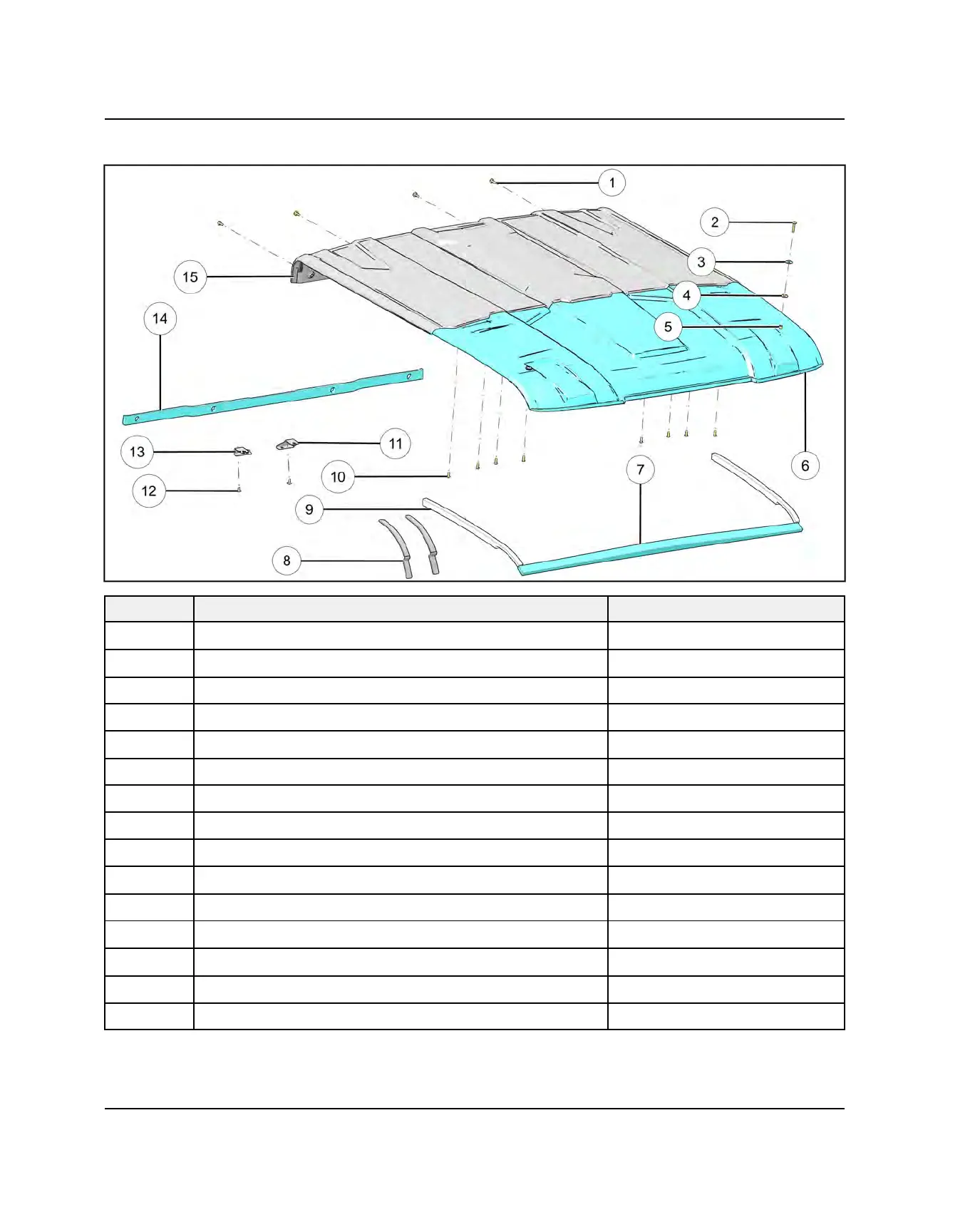

ROOF ASSEMBLY VIEW (CREW)
REF DESCRIPTION
TORQUE
q
Roof Fastener: M6 x 1.0 x 25
42 in-lbs (5 Nm)
w
Roof Fastener: M6 x 1.0 x 40
42 in-lbs (5 Nm)
e
Rubber Washer NA
r
Washer NA
t
Spacer
NA
y
Front Roof Panel NA
u
Front Roof Seal NA
i
A-Pillar Seal NA
o
Side Roof Seal NA
a
Roof Fastener:
24 in-lbs (3 Nm)
s
Driver Roof Bracket NA
d
Roof Bracket Fastener: M6 x 1.0 x 15
42 in-lbs (5 Nm)
f
Passenger Roof Bracket
NA
g
Rear Roof Seal NA
h
Rear Roof Panel NA
