SHIFT CABLE SERVICE
REMOVAL

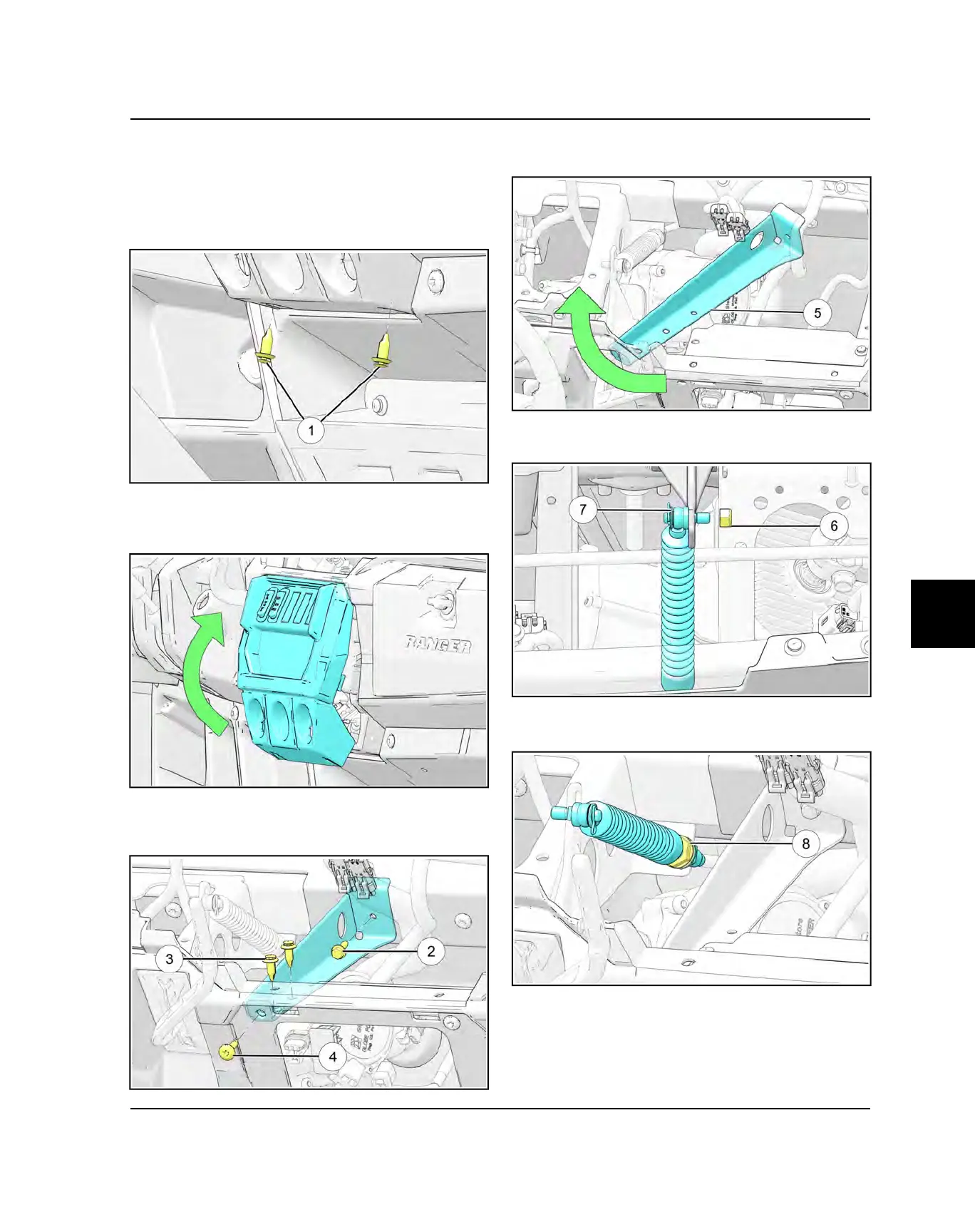

1. Remove the upper dash panel.
2. Remove the two push rivets
q
from the center dash
trim panel.
3. Rotate the center trim panel upwards, disconnect the
electrical connectors and release from the upper
retaining tabs. Remove from the vehicle.
4. Remove the 10mm fastener
w
, two push rivets
e
,
and T40 Torx fastener
r
securing the left dash
bracket.
5. Rotate the left dash bracket
t
to the left as shown
and remove from the vehicle.
6. Remove the 10mm nut
y
from the shift cable
u
, and
remove the cable from the shift lever.
7. Loosen the locknut
i
behind the dash, and remove
the shift lever from the retaining bracket
8. Remove the propshaft tunnel cover. Refer to Floor
Panel Service page 11.63.
