9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
6.9

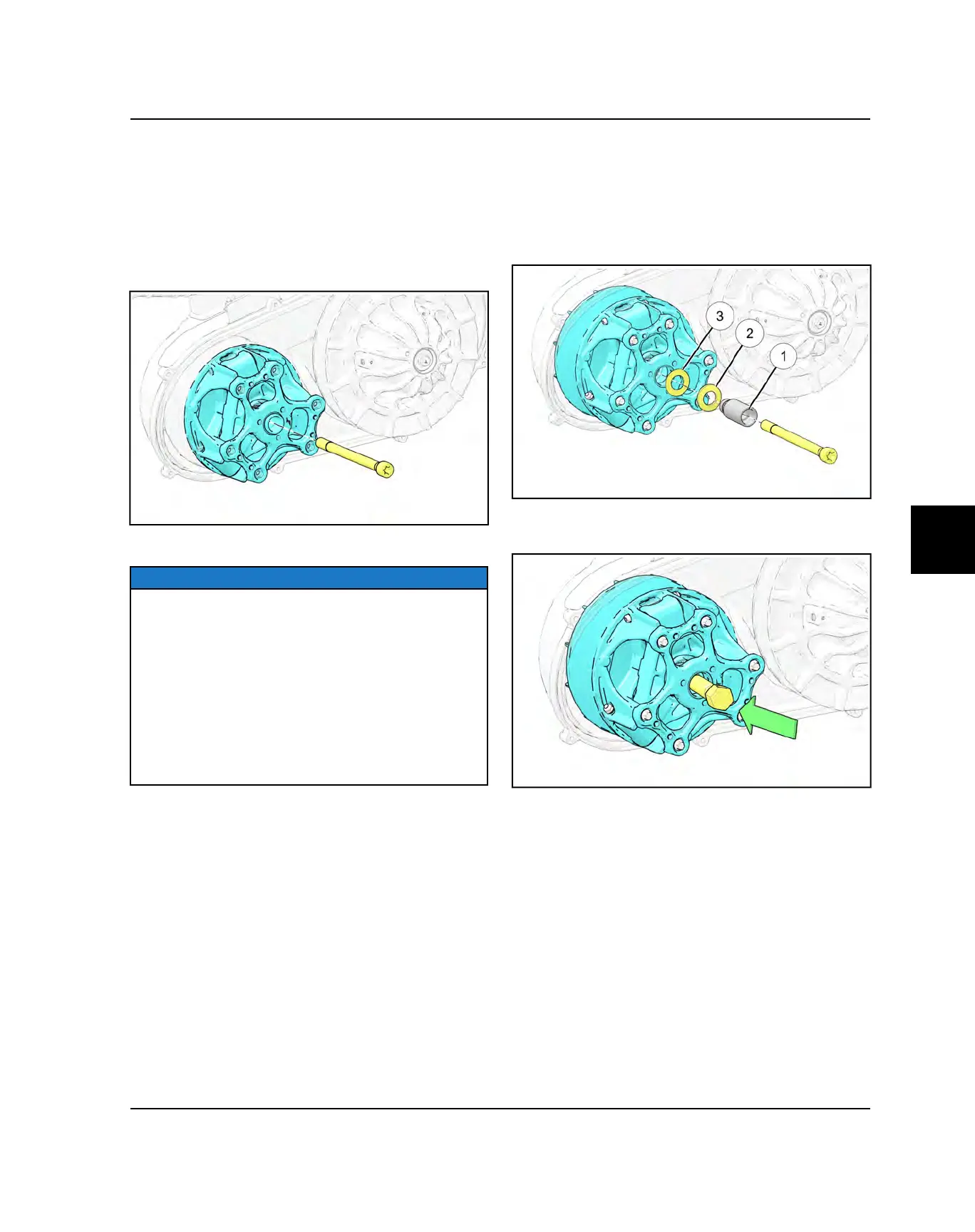

DRIVE CLUTCH REMOVAL /
INSTALLATION
REMOVAL (MOVABLE SHEAVE ONLY)
1. Remove the drive belt. Refer to Drive Belt Service
page 6.4.
2. Install drive clutch holding tool (PU-52430).
3. Remove the drive clutch bolt.
4. Remove the movable sheave assembly.
NOTICE
The stationary sheave of the drive clutch can remain in
the vehicle if not being serviced. Use a rocking motion
while pulling on the movable sheave by hand to slide
the spider and movable sheave off the stationary post.
If you are unable to remove the movable sheave by
hand, remove the six cover bolts, drive spring, outer
post, and washers. Use a three-jaw puller to remove
the spider. The Drive Clutch puller will not be needed if
the Stationary Sheave is not being serviced. If removing
the Stationary Sheave is necessary, the Drive Clutch
puller will need to be used. Remove the outer slip fit
post in order to insert the Drive Clutch holding tool.
REMOVAL (STATIONARY SHEAVE)
1. Remove the drive belt. Refer to Drive Belt Service
page 6.4.
2. Install drive clutch holding tool (PU-52430).
3. Remove the drive clutch bolt, post
q
, belleville
washer
w
and washer
e
.
4. Install drive clutch puller (PU-52422) to remove the
stationary sheave.
PVT SYSTEM
