11.4
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
BODY ASSEMBLY VIEWS

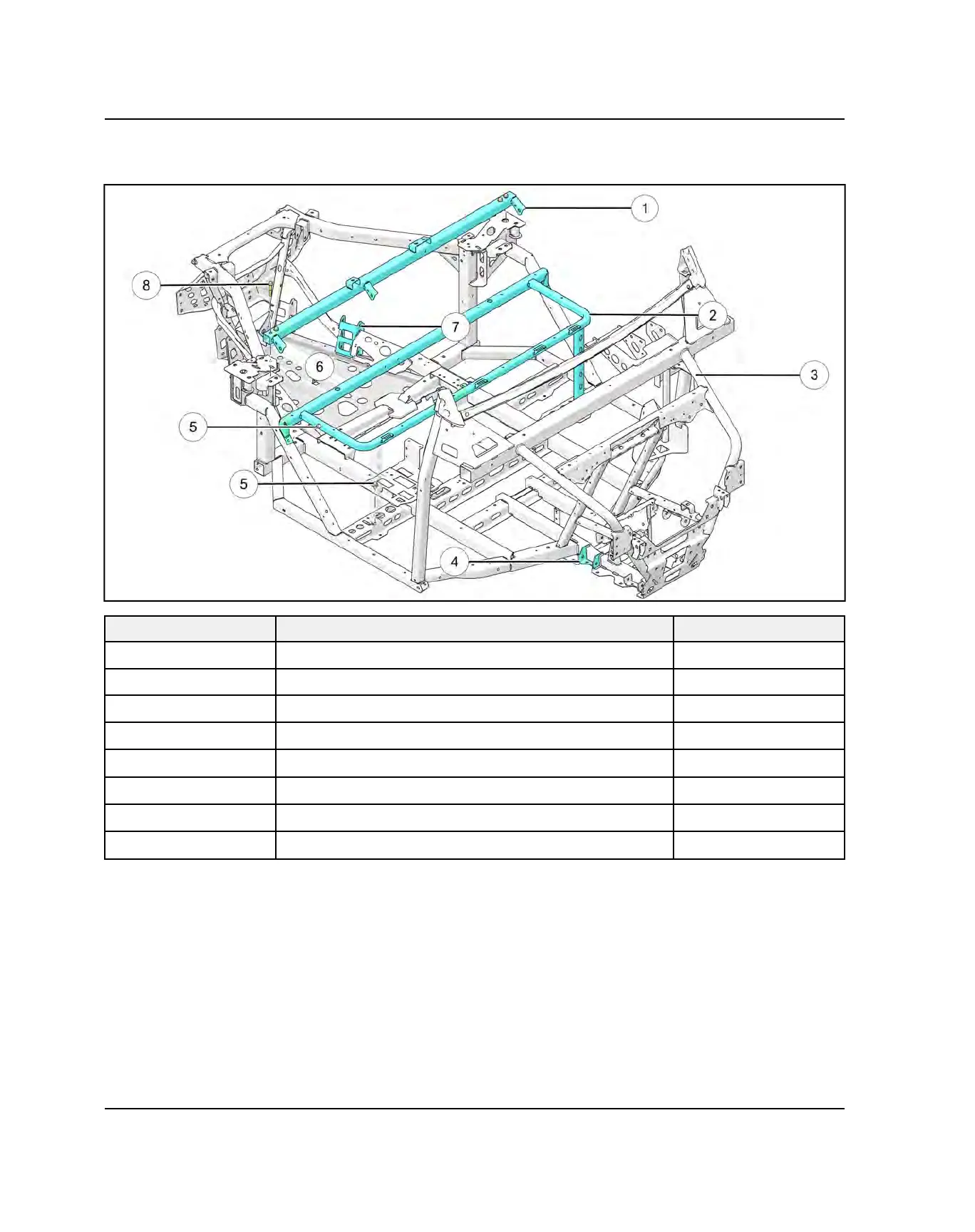

CHASSIS ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Crossbar NA
w
Seat frame NA
e
Main Frame NA
r
Front A-arm Bracket NA
t
Seat Frame Fastener: M8 x 1.25 x 20
10 ft-lbs (14 Nm)
y
Engine Shield
NA
u
Rear A-arm Bracket NA
i
Crossbar Fastener: M8 x 1.25 x 55
14 ft-lbs (19 Nm)
BODY / FRAME
