5.4
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

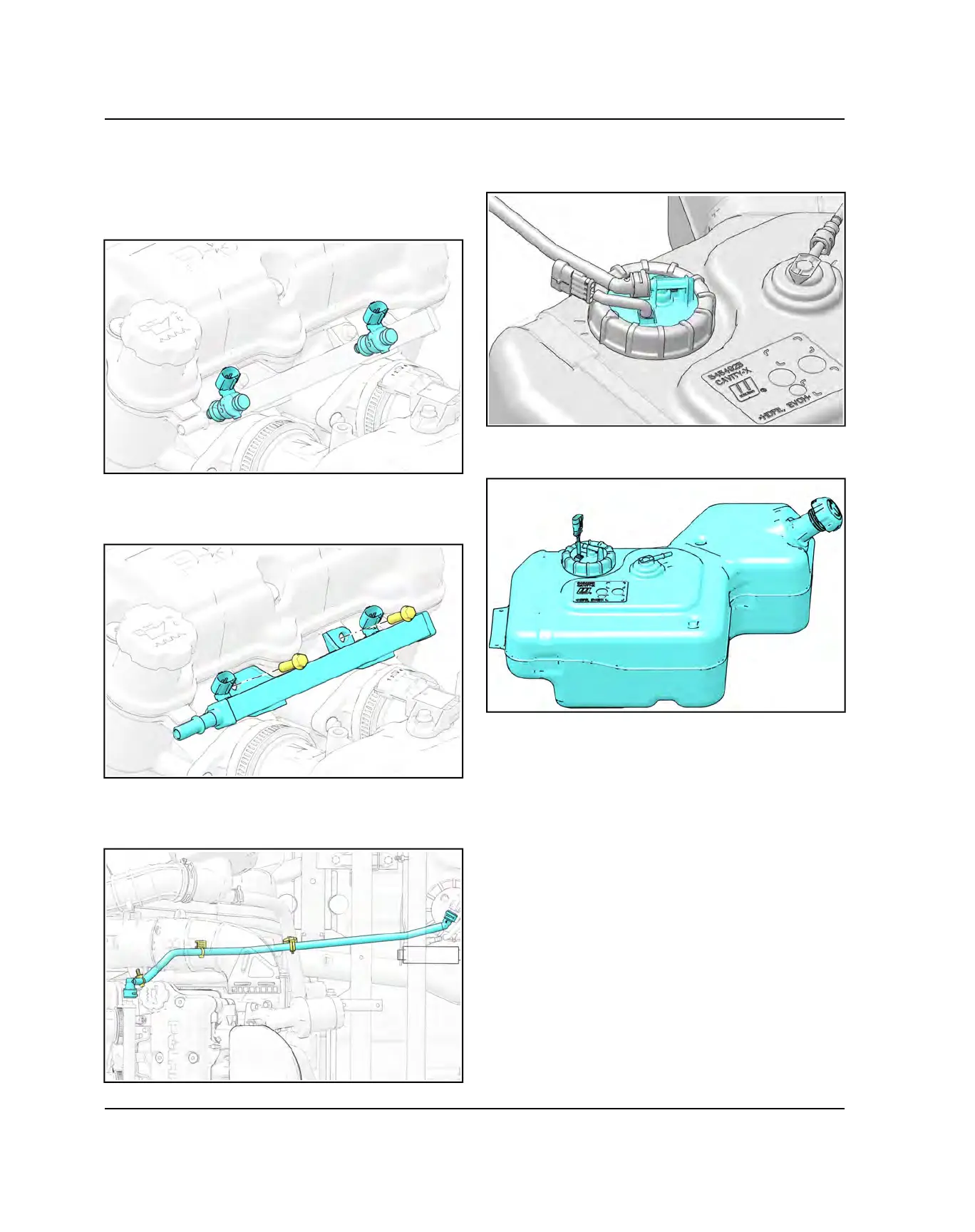

FUEL SYSTEM COMPONENT
LOCATIONS
1. Fuel Injectors
- Located on the top of the intake plenum in the intake
track, retained on top by the fuel rail.
2. Fuel Rail Assembly
- Located on the intake plenum, on top of the fuel
injectors.
3. Fuel Supply Line
- Connected to the left end of the fuel rail and top of
the fuel pump.
4. Fuel Pump / Regulator / Fuel Level Sender
Assembly
- Located under the driver’s seat.
5. Fuel Tank
- Located under the driver’s seat.
FUEL SYSTEM
