9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
7.23
2. Extract the snorkel shaft seal
g
from the snorkel tube
o
by drilling a small pilot hole and threading a screw
in to slowly pull the seal out.
e

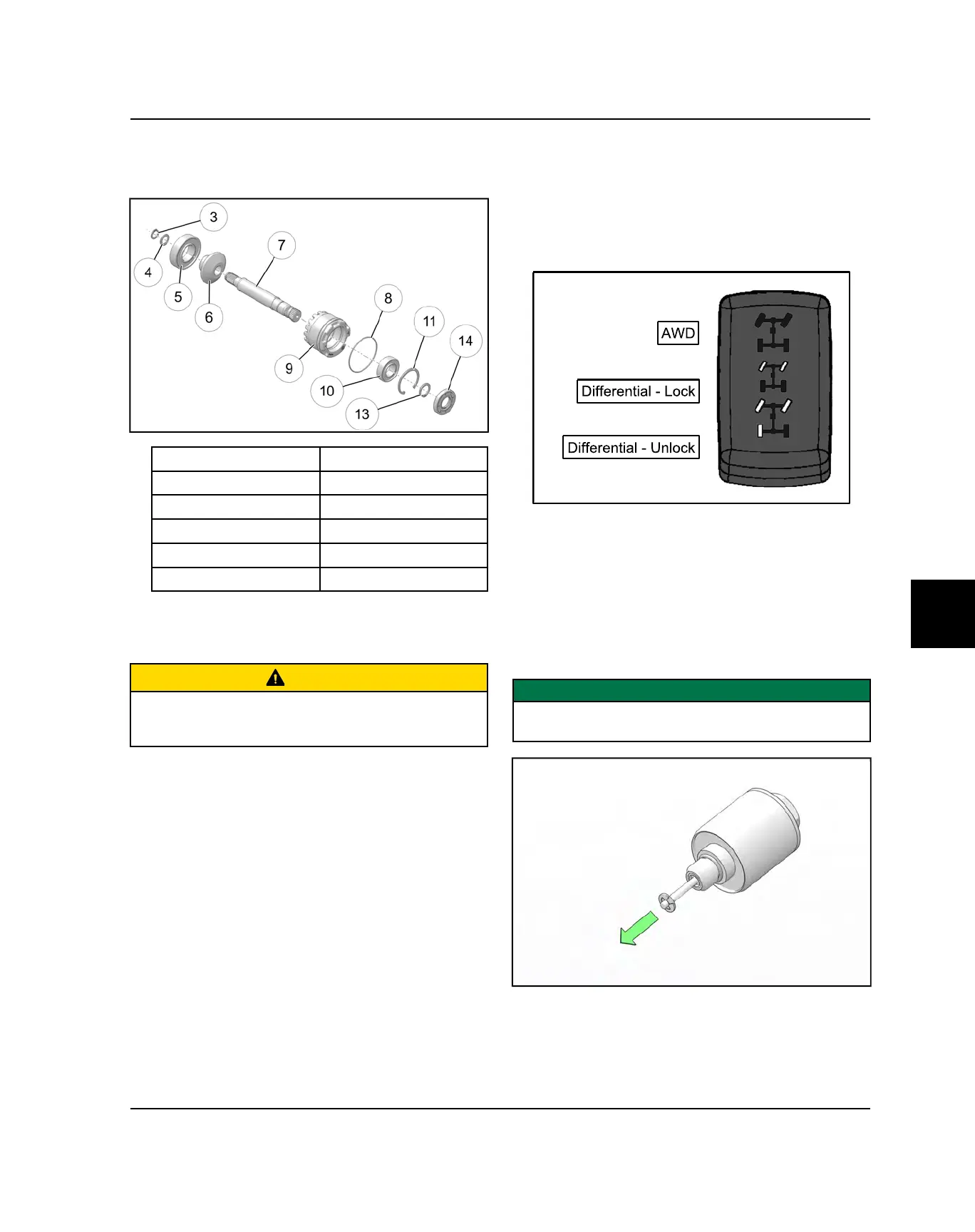

Snap Ring
o
Snorkel Tube
r
Thrust Washer
a
Bearing
t
Bearing
s
Snap Ring
y
Ring Gear
d
Thrust Washer
u
Front Output Shaft
f
Snap Ring
i
O-Ring
g
Seal
3. Once the three snap rings
e
,
s
, &
f
are removed,
use an arbor press to remove the snorkel tube and
other components from the shaft.
CAUTION
Support the end face of the gear teeth when pushing
the shaft through or damage to the gear teeth may
occur.
DIFFERENTIAL OPERATION
Transmissions equipped with Turf Mode have three
traction operational modes: Differential Lock in 2WD &
4WD and Differential Unlock in Turf mode. Differential
lock is beneficial in low traction and rough terrain
conditions. Differential unlock makes maneuvering
easier and minimizes damage to terrain.
When “Differential-Unlock” is selected, the rear
differential becomes unlocked for tighter turns. An
electrical solenoid mounted in the rear portion of the
gearcase actuates the shift fork. The solenoid plunger
extends out to move the fork and slides the engagement
dog away from the side gear that is part of the planetary
differential assembly. This unlocks the rear differential.
The rear drive shafts are now dependent on the
differential allowing for tighter turns.
IMPORTANT
TURF mode is only available in drive gears and when
the parking brake is released (INTL models).
TRANSMISSION
