7.16
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
TRANSMISSION REMOVAL AND
INSTALLATION
REMOVAL
1. Remove the intake manifold. Refer to Intake Manifold
Service page 3.16.
2. Remove the inner clutch cover. Refer to Inner PVT
Cover Service page 6.11
3. Disconnect the rear propshaft from the transmission.
Refer to Rear Prop Shaft Removal page
NOTICE
The propshaft only needs to be disconnected from the
transmission and does not need to be removed from
the vehicle.
4. Disconnect the shift cable from the transmission.
Refer to Shift Cable Service page 7.9.
NOTICE
The shift cable only needs to be disconnected from the
transmission and does not need to be removed from
the vehicle.
5. Remove the transmission vent line. Refer to
Transmission Vent Line Routing page 7.15.
6. Disconnect all connectors at the transmission. Refer
to Transmission Harness in Engine Harness Routing
page 4.3.
7. Place a piece of 1 x 4 inch plywood under the engine
to provide support.

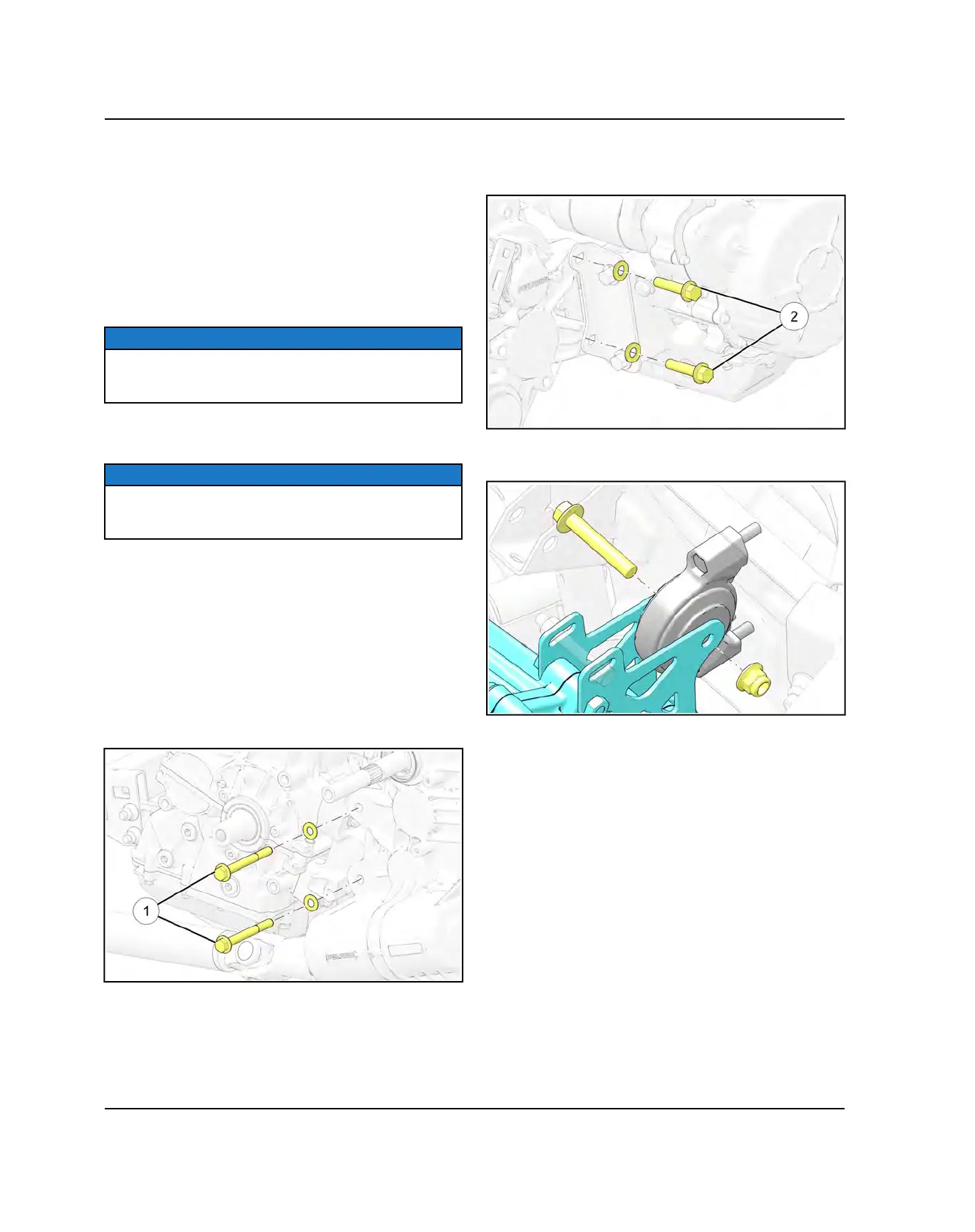

8. Remove the engine to transmission mounting
fasteners and washers
q
on the PTO side of the
engine.
9. Remove the engine to transmission mounting
fasteners and washers
w
on the MAG side of the
engine.
10.Remove the rear transmission isolator fastener and
nut.
11. Lift the transmission straight up to remove from the
vehicle.
TRANSMISSION
