4.30
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
DRIVE MODE SWITCH
DRIVE MODE SWITCH DESCRIPTION
AND OPERATION
Some vehicle models are equipped with a drive mode
selection switch that affects throttle map. The switch is
located on the center dash.
NOTICE
If the drive mode switch is improperly functioning, the
switch will default to Standard mode.
1. Disconnect the drive mode switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test the resistance between pins 9 and 2 the switch.
3. If the resistance is out of specification for any mode,
replace the switch.
The Drive Mode Switch is a three way rocker switch with
internal resistors which allow the ECU to monitor voltage
drop, indicating the selected mode. The modes are:
• PERF – Performance mode. Aggressive pedal feel.
Resistor in the switch for this mode is 4 K Ohms.
• STND – Standard mode. Balanced pedal feel. Resistor
in the switch for this mode is 25 K Ohms
• WORK – Work mode. Smooth pedal tip-in. Resistor in
the switch for this mode is 1.5 K Ohms

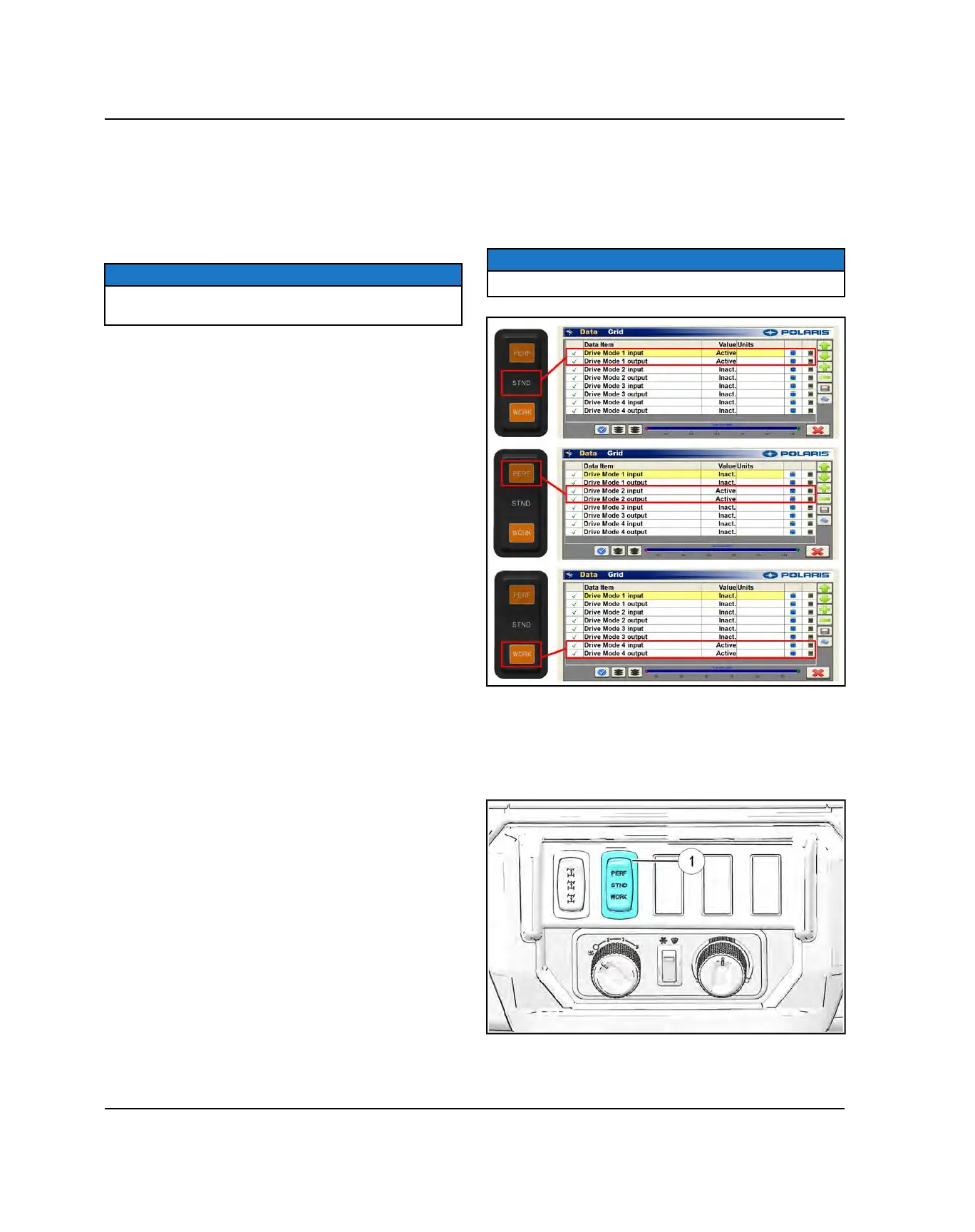

DIGITAL WRENCH VALUES
The drive modes in Digital Wrench data will show Drive
Mode Input and Output Status for 4 Drive Modes. Each
mode uses one of these input/output sets. Both input and
output should show active for the respective number
when operating correctly.
NOTICE
Only three of the four available drive modes are used.
DRIVE MODE SWITCH REPLACEMENT
1. Remove the drive mode switch
q
by lightly prying on
the backside of the switch until the detents are
released.
2. Reinstall the switch by pushing straight in until the
switch detents engage on the dash panel.
ENGINE ELECTRICAL
