8.14
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
4. 2020 Models:

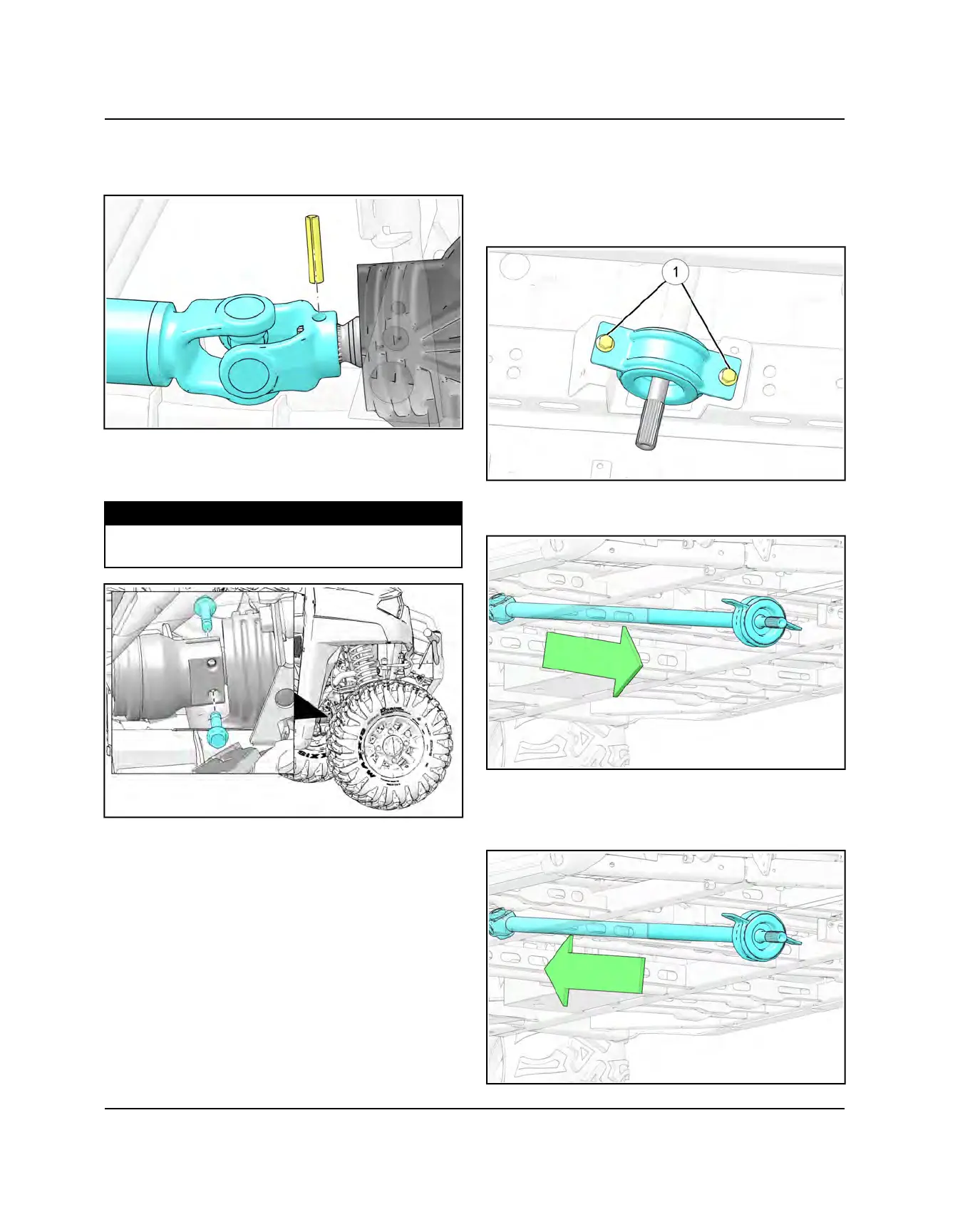

Install a NEW prop shaft pin using special tool (PN
2872608).
2021+ Models:
Install prop shaft bolts. Torque to specification.
TORQUE
Front Prop Shaft Fasteners:
22 ft-lbs (30 Nm)
5. Install the skid plate. Refer to Skid Plate Service page
11.35.
6. Install the front bumper. Refer to Front Bumper
Service page 11.31
REAR PROP SHAFT SERVICE (CREW)
REMOVAL
1. Remove the front prop shaft. Refer to Front Prop
Shaft Service (CREW) page 8.12.
2. Remove the two carrier fasteners
q
.
3. Slide the rear propshaft off the transmission splines
and remove from the vehicle through the frame.
INSTALLATION
1. Reinstall the prop shaft through the frame and align
with transmission splines.
FINAL DRIVE
