11.12
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

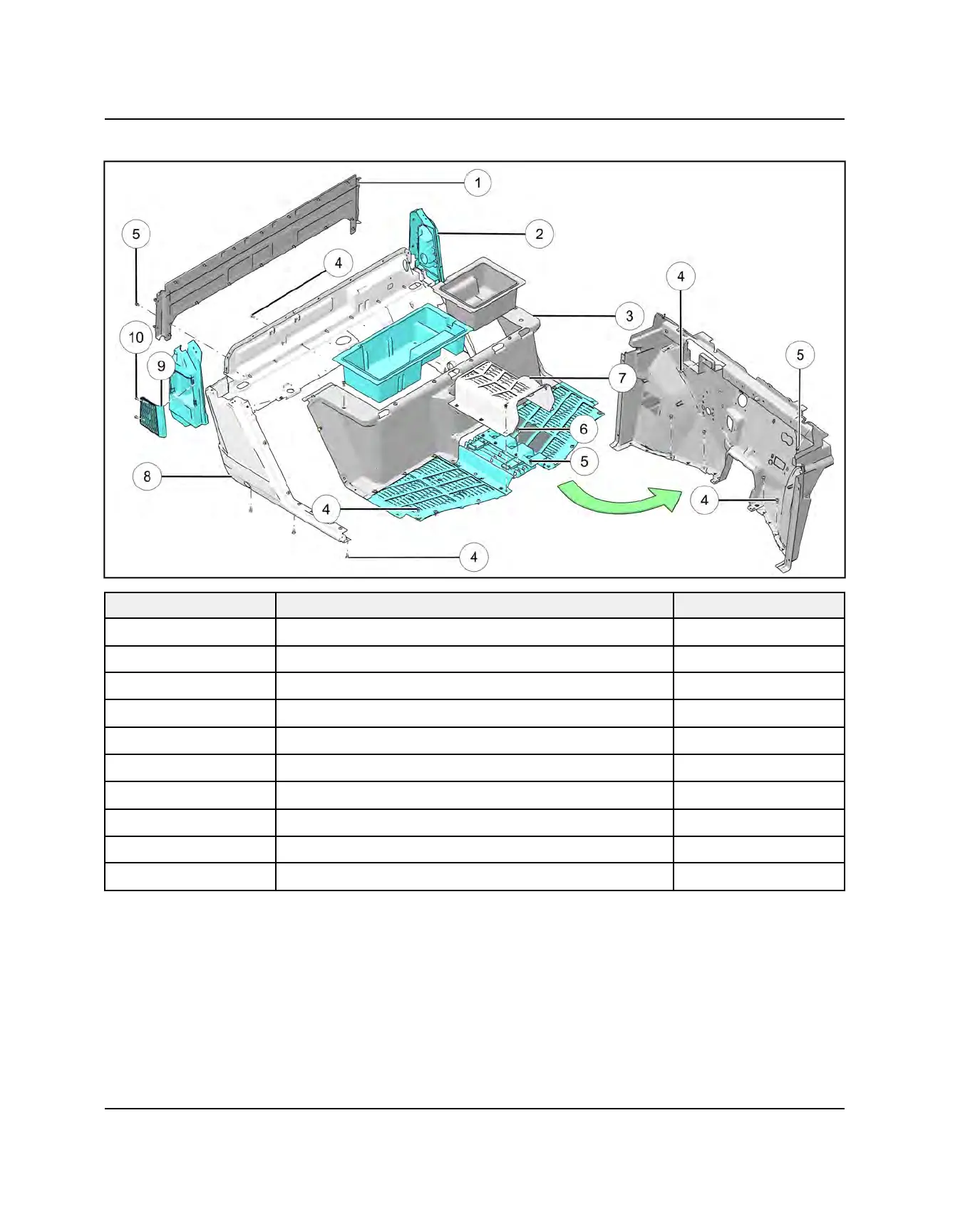

FLOORS AND BULKHEAD ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Upper Close Off Panel
NA
w
Side Bezel NA
e
Seat Frame Panel NA
r
Bulkhead Fastener: M6 x 1.0 x 25
42 in-lbs (5 Nm)
t
Push Rivet NA
y
Floor Screw: 14 x 3/4
22 in-lbs (2.5 Nm)
u
Prop Shaft Tunnel
NA
i
Rocker Panel NA
o
Intake Cover NA
a
Intake Cover Screw: 14 x 3/4
22 in-lbs (2.5 Nm)
BODY / FRAME
