11
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.59

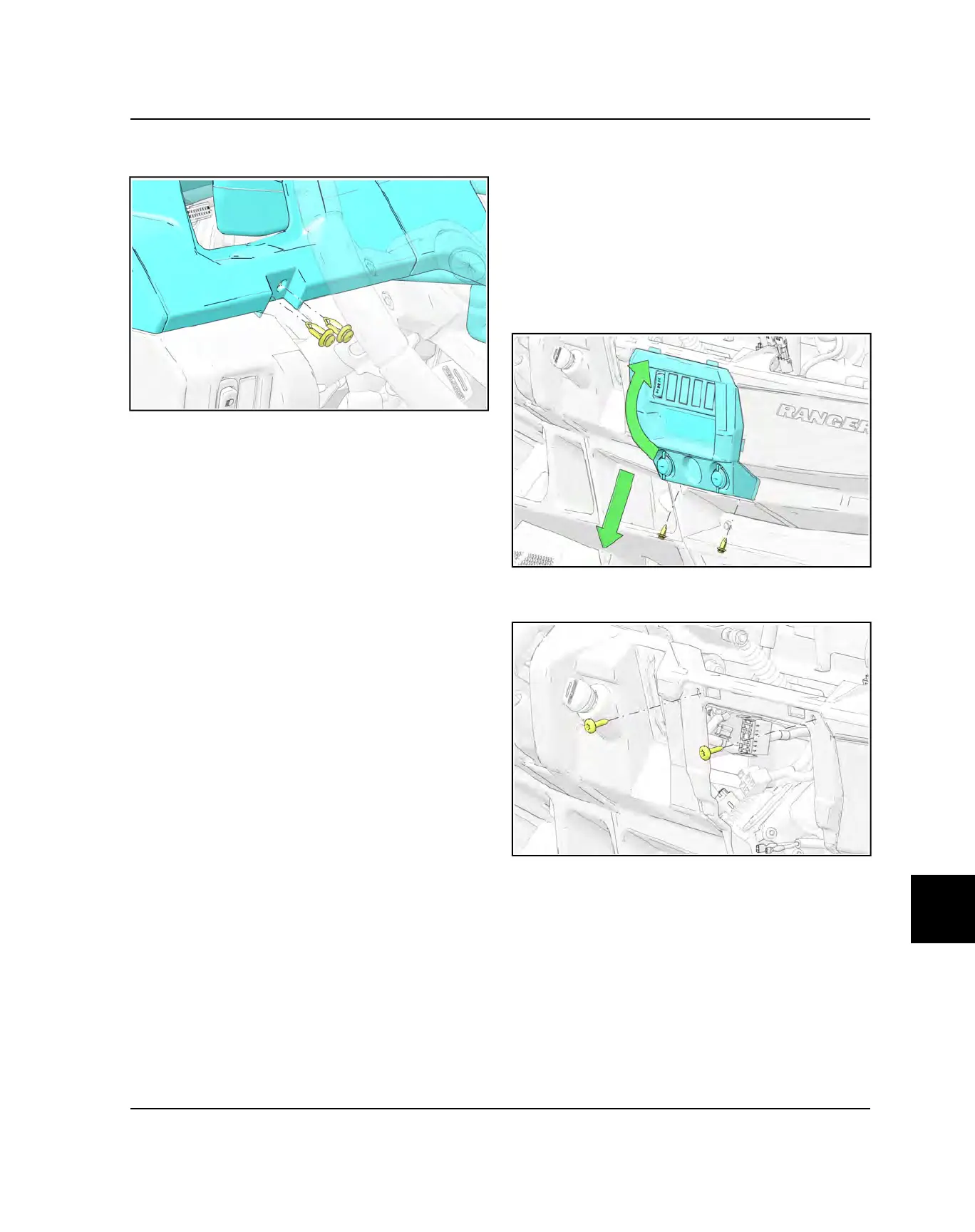

6. Install the two push rivets on the upper dash panel
below the instrument cluster.
7. Install the instrument cluster. Refer to Instrument
Cluster Service page 12.23.
8. Install the front fenders. Refer to Front Fender
Service page 11.32.
LOWER DASH PANEL SERVICE
REMOVAL
1. Remove the upper dash panel. Refer to Upper Dash
Panel Service page 11.57.
2. Remove the two push rivets securing the center trim
panel to the lower dash.
3. Rotate the trim panel out from the bottom and
disconnect the electrical connectors. Pull down and
out to release the upper retention points and remove
from the dash.
4. Remove the two fasteners behind the center trim
panel.
BODY / FRAME
