12
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
12.17
SWITCHES / CONTROLS SERVICE

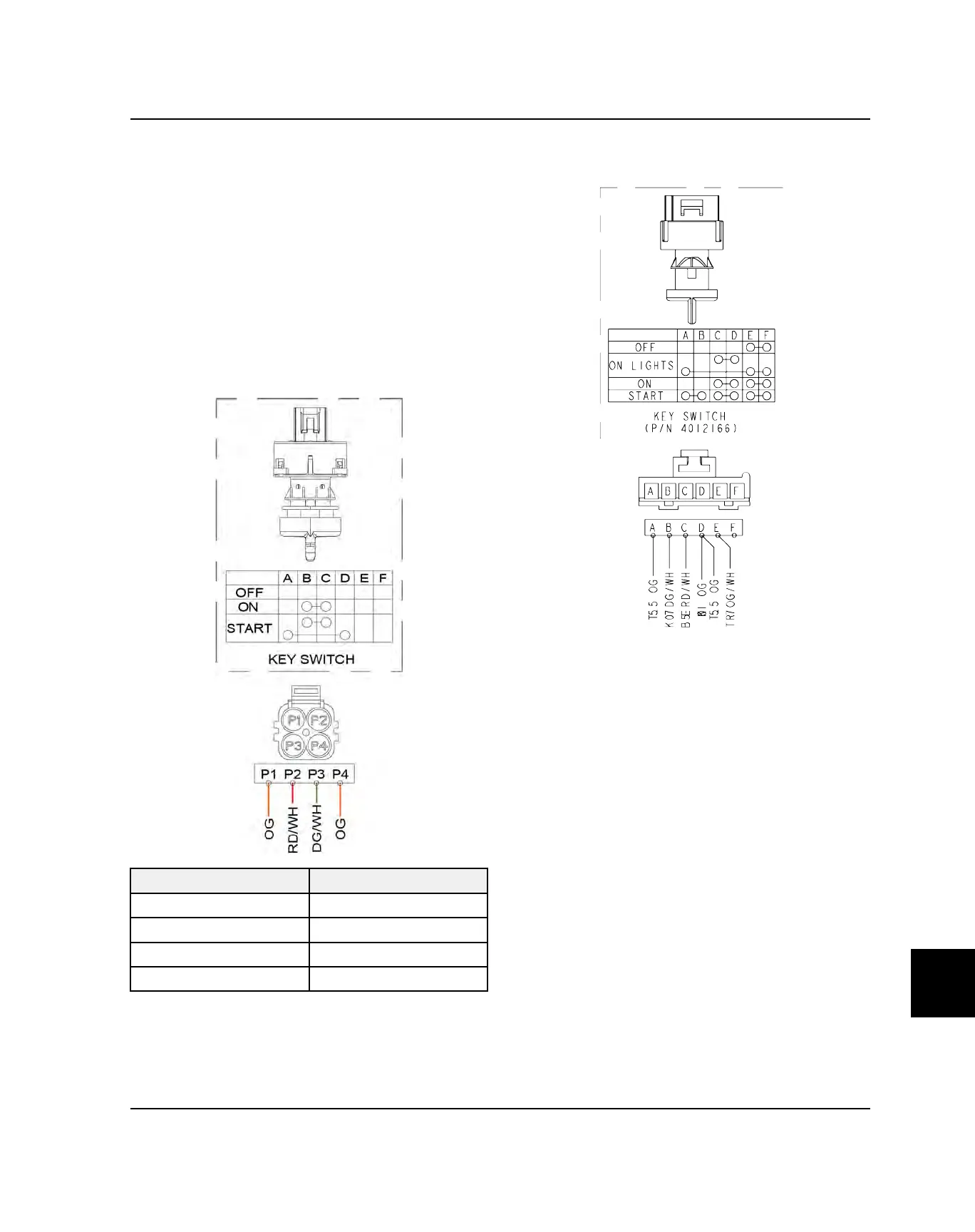

IGNITION KEY SWITCH
1. Disconnect the key switch harness by lifting the
connector lock and pulling on the connector. Do not
pull on the wiring.
2. Test between the 3 sets of outputs (OFF / ON /
START). If any of the tests fail, replace ignition switch
assembly.
• Turn the ignition key to ON. There should be continuity
between switch pins B and C.
• Turn the ignition key to START. There should be
continuity between switch pins B and C; A and D.
PIN LOCATION
P1 A
P2 B
P3 C
P4 D
INTL MODELS
CHASSIS / BODY ELECTRICAL
