8.48
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.

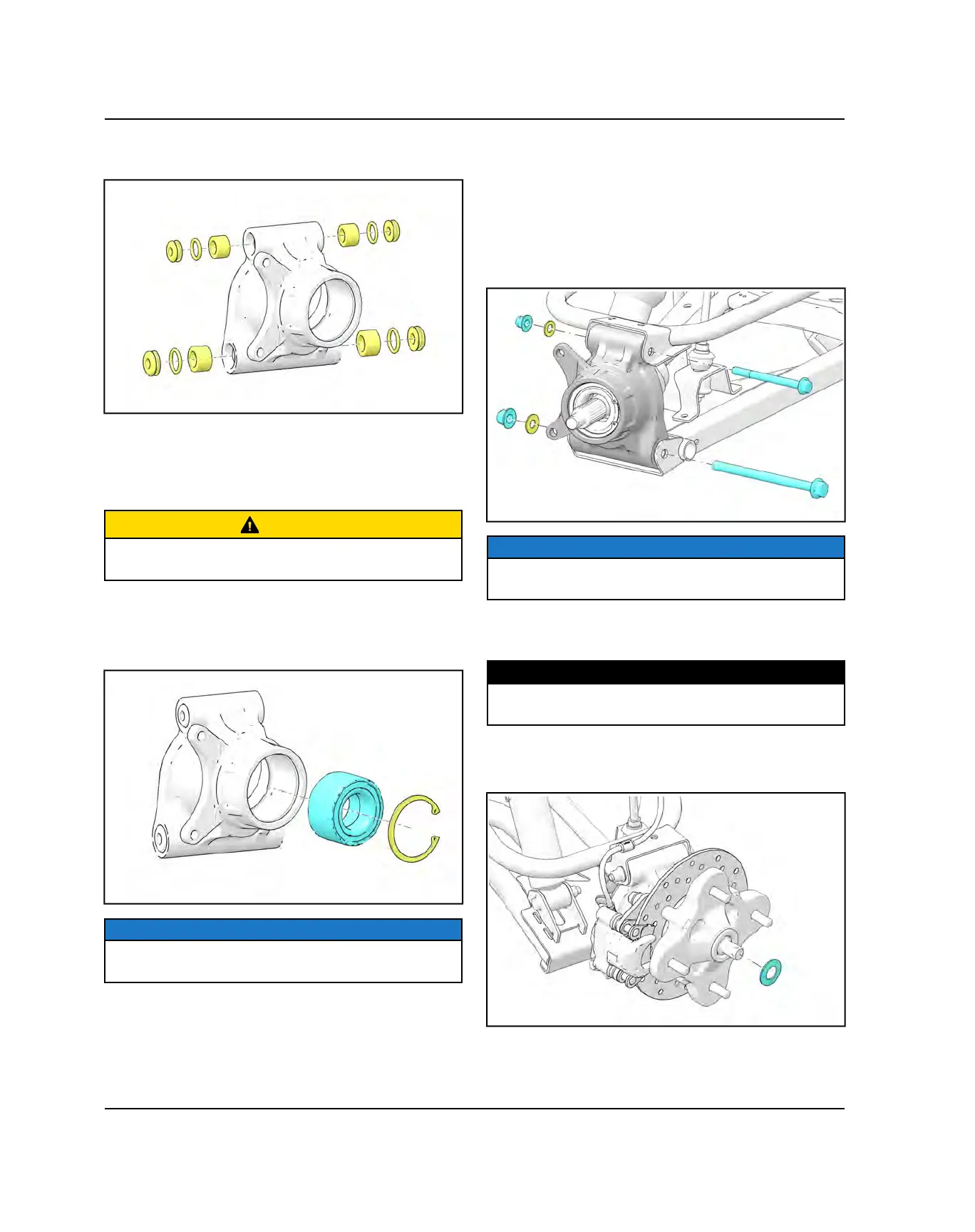

4. Inspect the bearing carrier bushings and replace if
worn or damaged.
5. Thoroughly clean the rear bearing carrier housing
and the outer race on the new bearing. Be sure that
all oil residue has been removed from each surface.
6. Support the bottom of the bearing carrier housing.
CAUTION
Use an arbor and press only on the outer race,
otherwise bearing damage may occur.
7. Apply Loctite® 603 retaining compound to the outer
circumference of the new bearing race and carefully
press the new bearing into the bearing carrier
housing.
NOTICE
Use care to not allow any of the Loctite
®
compound to
get in the bearing.
8. Wipe the housing clean of any excess compound and
install the snap ring.
REAR BEARING CARRIER
INSTALLATION
1. Place the bearing carrier over the drive shaft.
2. Align the bottom of the bearing carrier with the lower
A-arm. Install the lower bearing carrier fastener.
3. Align the top of the bearing carrier with the upper A-
arm. Install the upper bearing carrier fastener.
NOTICE
The lower shock bolt may need to be removed to allow
the upper A-arm to move freely.
4. Torque the upper and lower bearing carrier fasteners
to specification.
TORQUE
Bearing Carrier Fasteners:
40 lb-ft (54 Nm)
5. Install the wheel hub assembly onto the drive shaft.
6. Install the washer(s).
FINAL DRIVE
To Next Page
