12.44
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
LIGHTING SYSTEM SERVICE

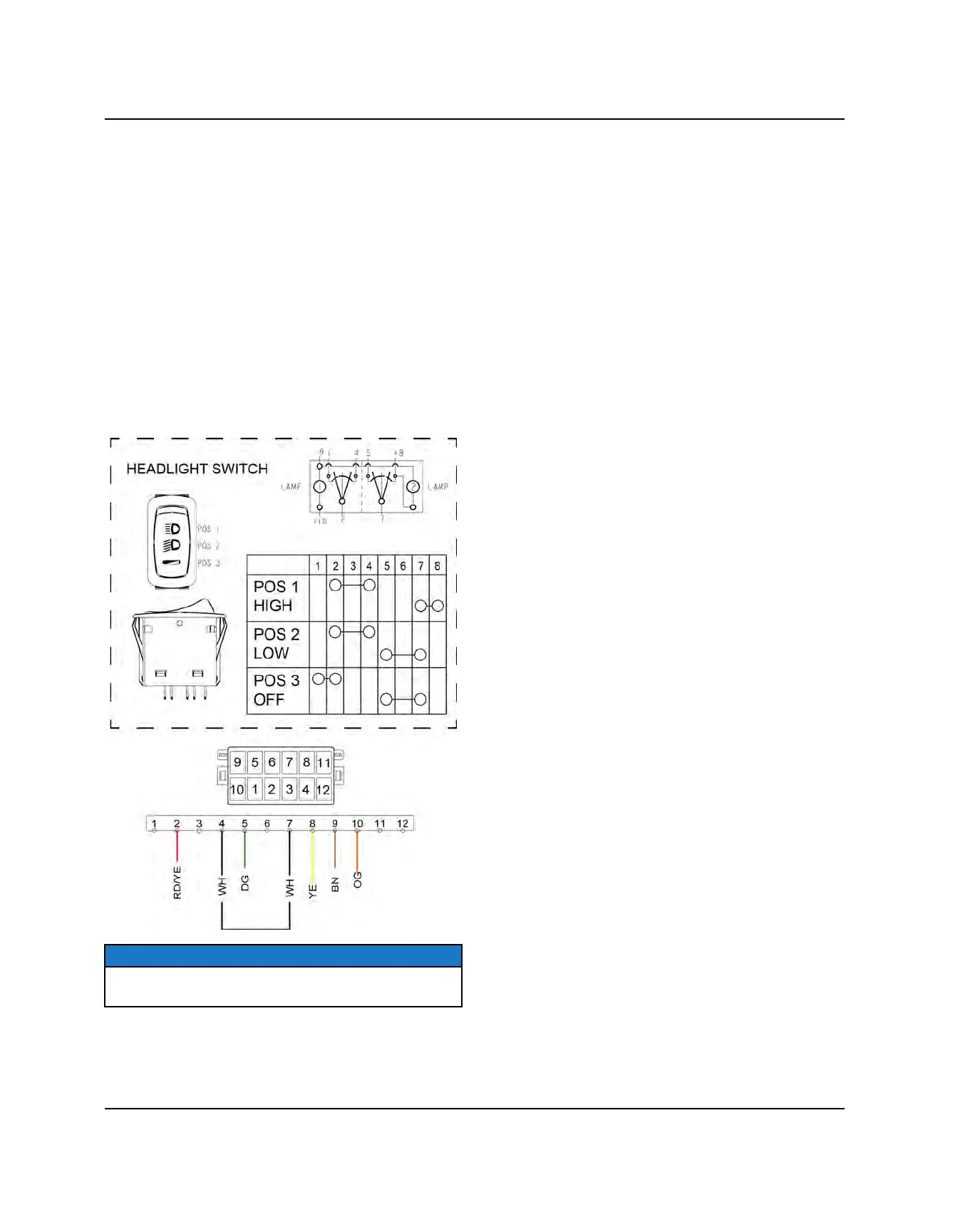

HEADLAMP SWITCH
1. Disconnect the headlamp switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test between the 3 sets of outputs (HIGH / LOW /
OFF). If any of the tests fail, replace headlamp switch
assembly.
• Move the switch to HIGH. There should be continuity
between switch pins 2 and 4; 7 and 8.
• Move the switch to LOW. There should be continuity
between switch pins 2 and 4; 5 and 7.
• Move the switch to OFF. There should be continuity
between switch pins 1 and 2; 5 and 7.
NOTICE
Pins 9 and 10 provide power and ground to light the
switch lamp.
CHASSIS / BODY ELECTRICAL
