Chapter 12 Installing, Removing, and Replacing
Installing the Library in a Rack
Scalar i500 User’s Guide 430

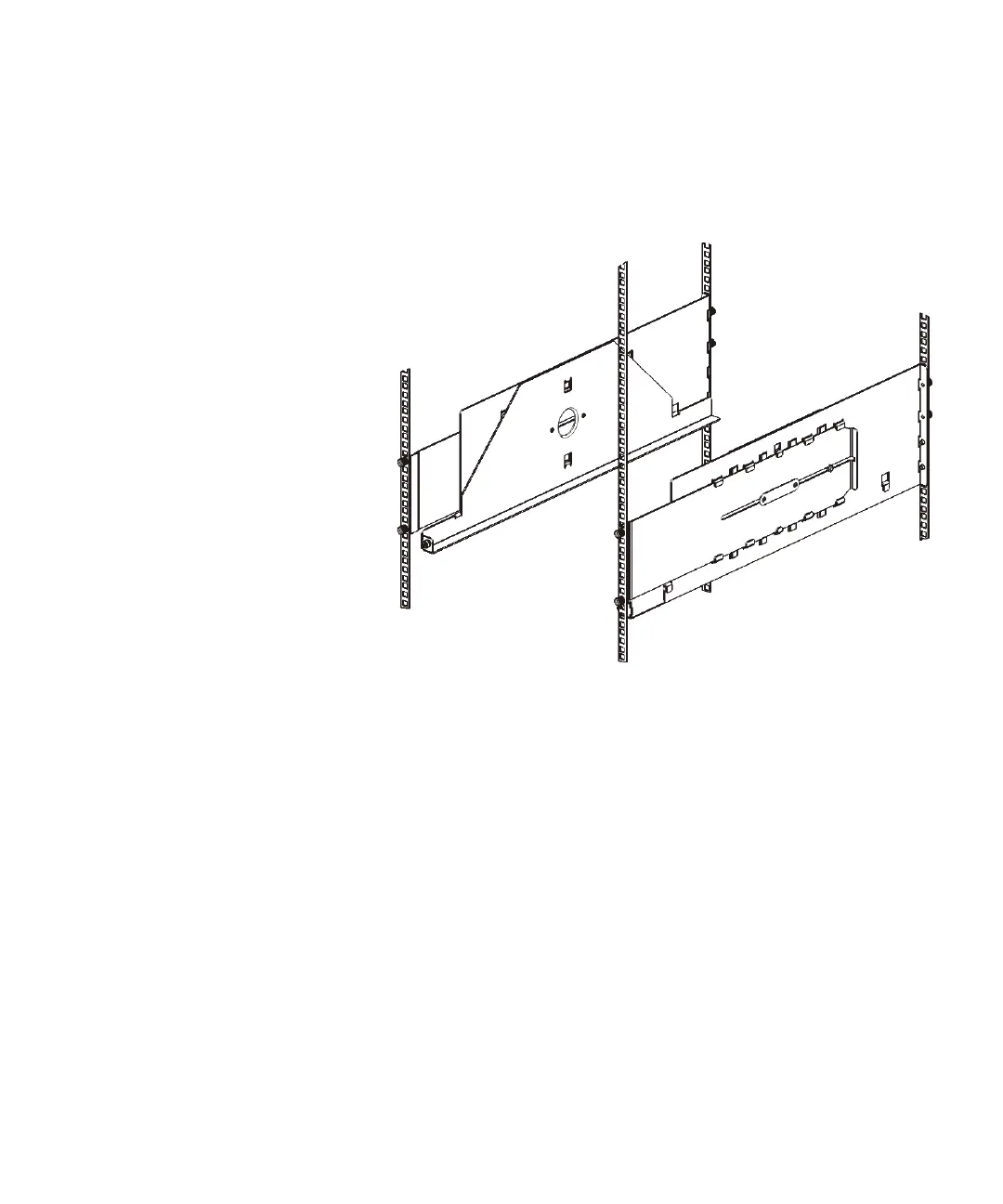

3 Install the rackmount shelves into the rack so that they are level with
one another.
a Install the shelf’s rear studs in the rack’s rear mounting holes.
b Position the shelf to the appropriate side of the rack (right or left)
and align the shelf at the desired height.
c Insert the shelf’s rear studs into the rack’s rear mounting holes.
d Fasten a thumbnut to the end of each stud. Secure the rack
tightly, so that the ferrule fits snugly within the hole in the rack.
e Next, install the shelf’s front studs in the rack’s front mounting
holes.
