Vertical Encoder Sensor
Preparation
• Duplex unit ( p.48)
• Top cover ( p.51 "Rear Cover, Top Cover")
• Rear cover ( p.51 "Rear Cover, Top Cover")
• Left cover ( p.56)
• Canopy cover ( p.57)
• Work carefully to avoid bending or scratching the edge of the vertical encoder wheel.

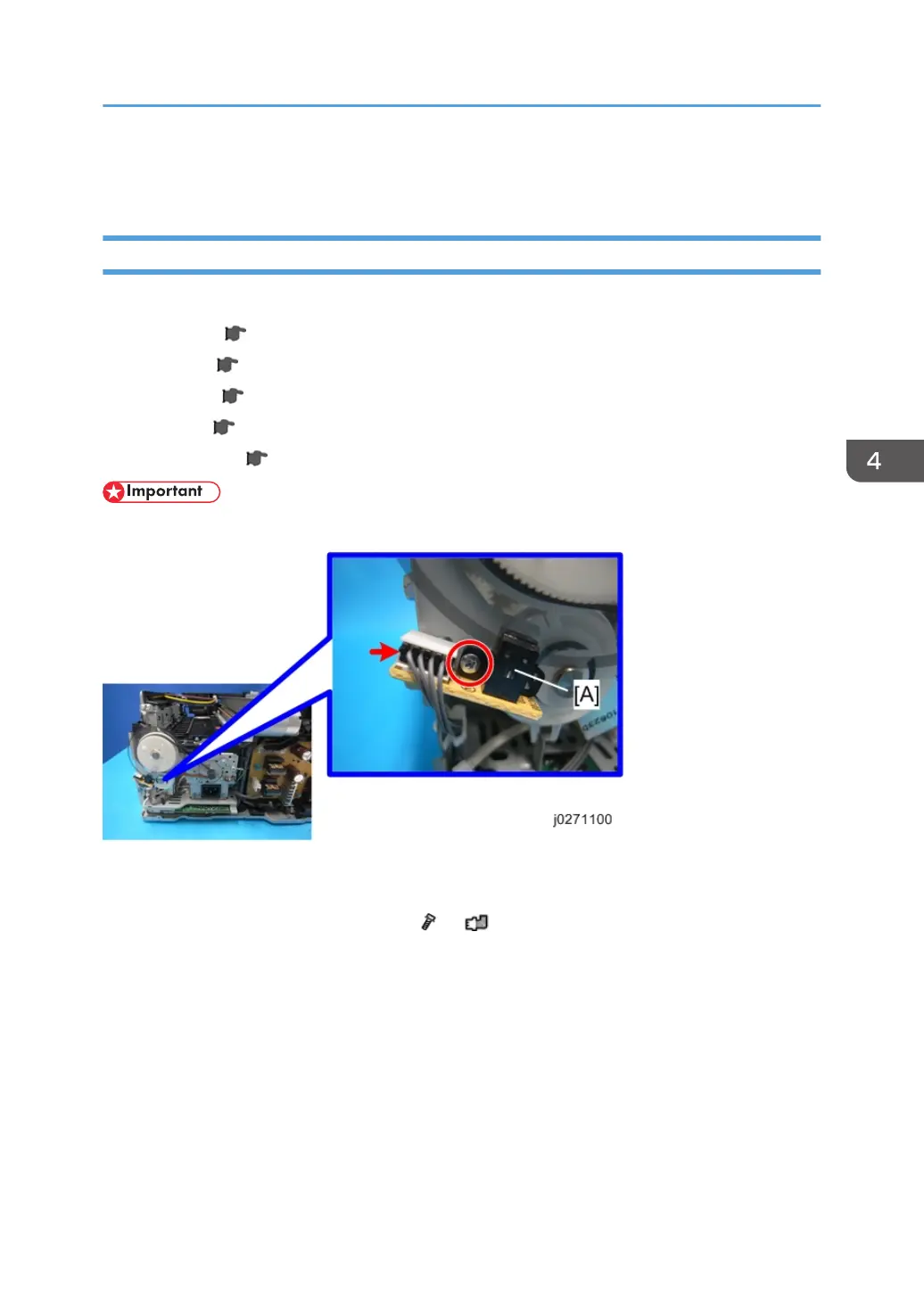

1. The vertical encoder sensor is near the left rear corner of the machine below the vertical encoder
wheel.
2.
Remove the vertical encoder sensor [A] (
x1, x1).
