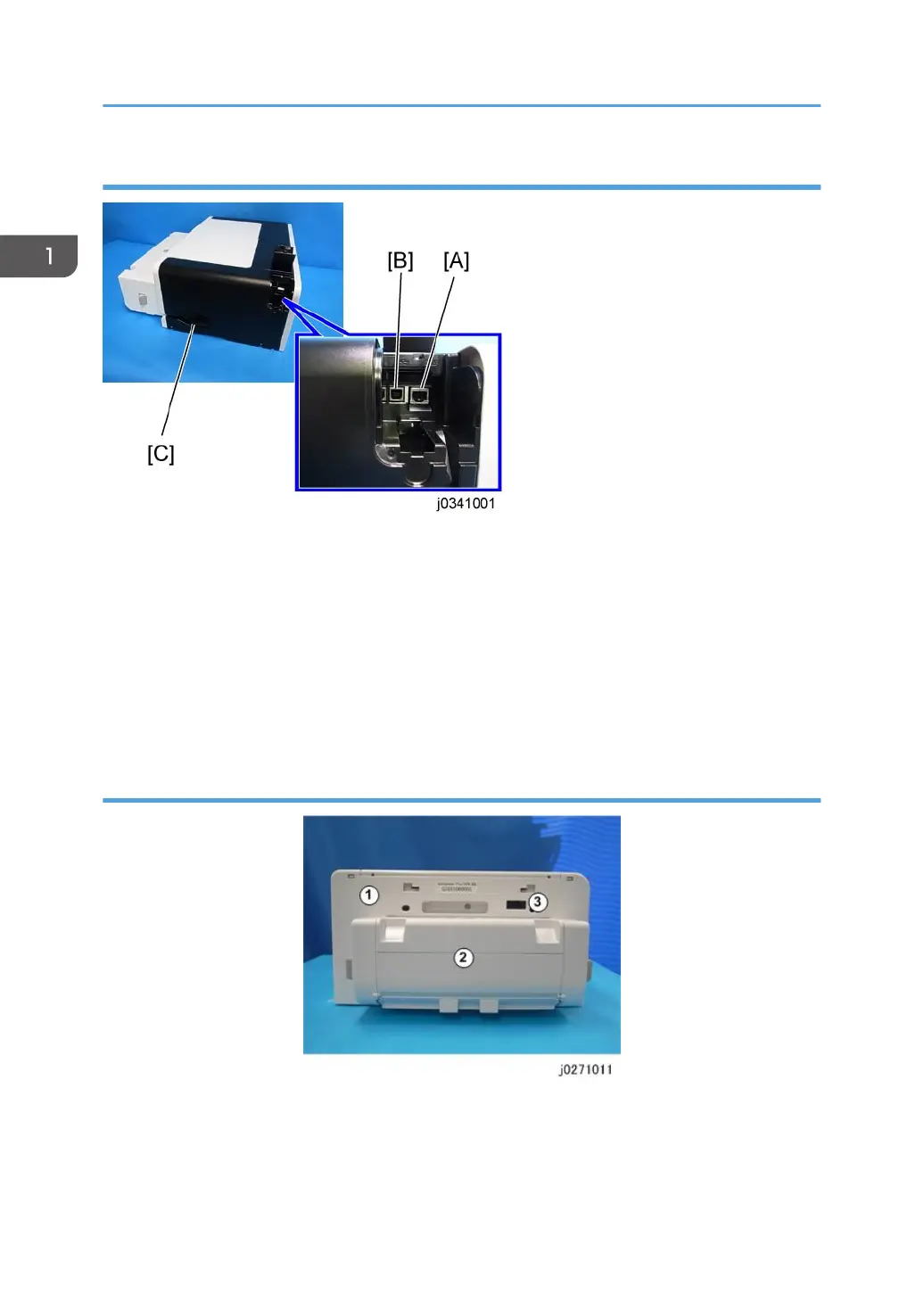

Left View
A: Ethernet port
The port for the ethernet cable. The NIC is mounted on the controller board.
B: USB port
This is the connection point for the USB cable from the PC.
C: Power inlet
The connection point for the power cord. Use only the detachable power cord provided with the printer.
Make sure you ground (earth) the head of the plug at the power source.
Rear View
1. Rear cover
2. Duplex unit
The duplex is standard for the J034 (it is not an option). It is easily detached and re-attached. A
small switch detects the presence or absence of the duplex unit.
