Main Machine

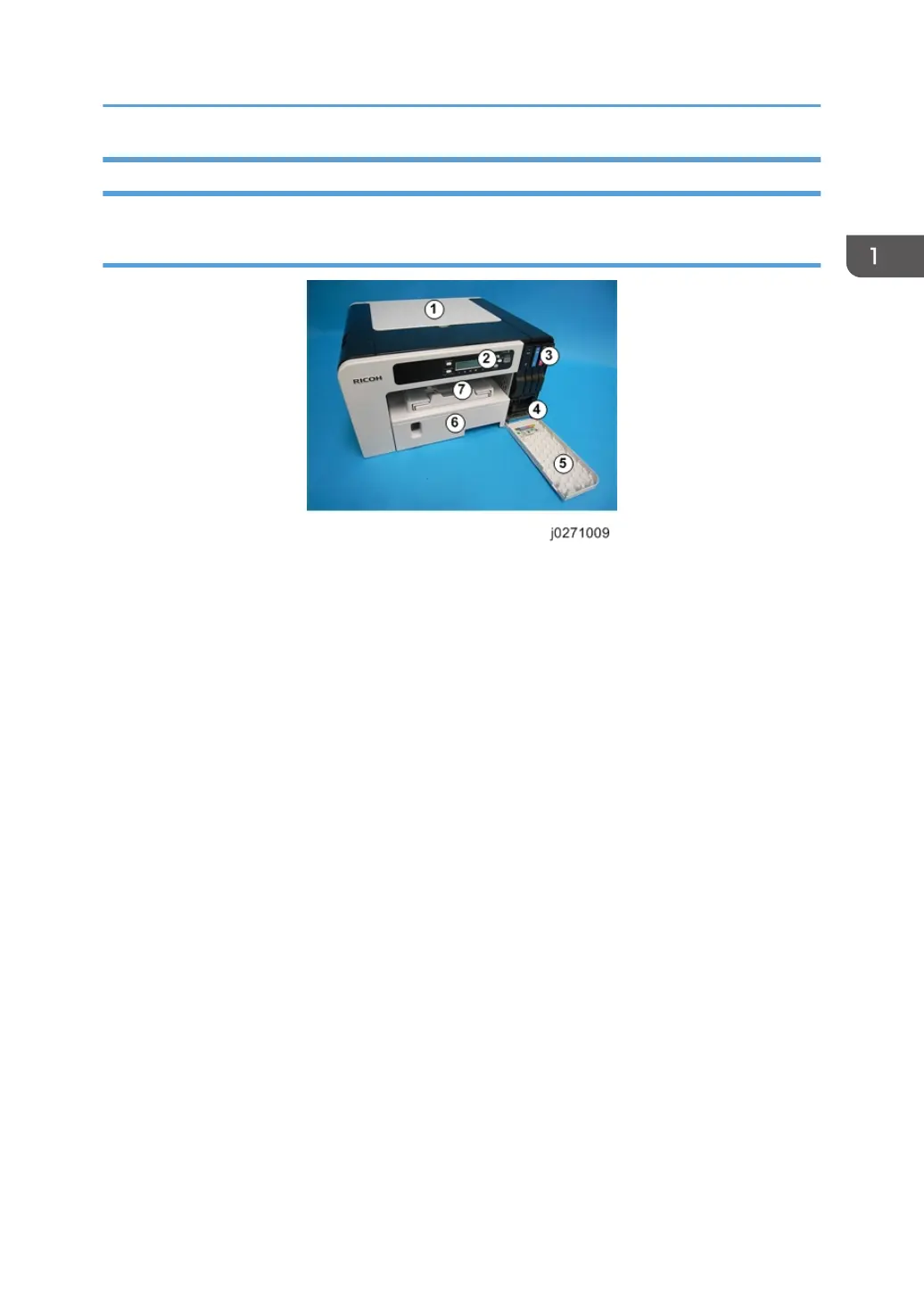

Front View
1. Top cover
Open to see inside the printer if a jam occurs.
2. Operation panel
Operation keys and the 2-line LCD. The operation panel can be raised and set in the upright
position if the printer is placed at a height where it is difficult to reach.
3. Ink cartridges (K), (C), (M), (Y)
Supply ink to the print heads.
4. Ink collector unit
Pull out the ink collector unit when it needs to be replaced, or before servicing the printer.
5. Right front cover
Covers the ink cartridges and the ink collector. Open only when installing or replacing Ink
cartridges, or when pulling out the ink collector unit. Otherwise, this door should remain closed. A
small switch detects when this cover is open and closed. The door must be closed for the printer to
operate.
6. Paper cassette (Standard Tray 1)
This is the standard tray that holds paper fed to the machine.
7. Paper output tray and extension
Holds paper that has exited the printer. Pull out the output tray extension when printing on paper
longer than A4 or LTR.
Overview
21
