Duplex Unit Set/Cover Open Switch
Preparation
• Duplex unit ( p.48)
• Rear cover ( p.51 "Rear Cover, Top Cover")
• Top cover ( p.51 "Rear Cover, Top Cover")
• Right cover ( p.54)
• Left cover ( p.56)
• Canopy cover ( p.57)
• Maintenance unit ( p.66)

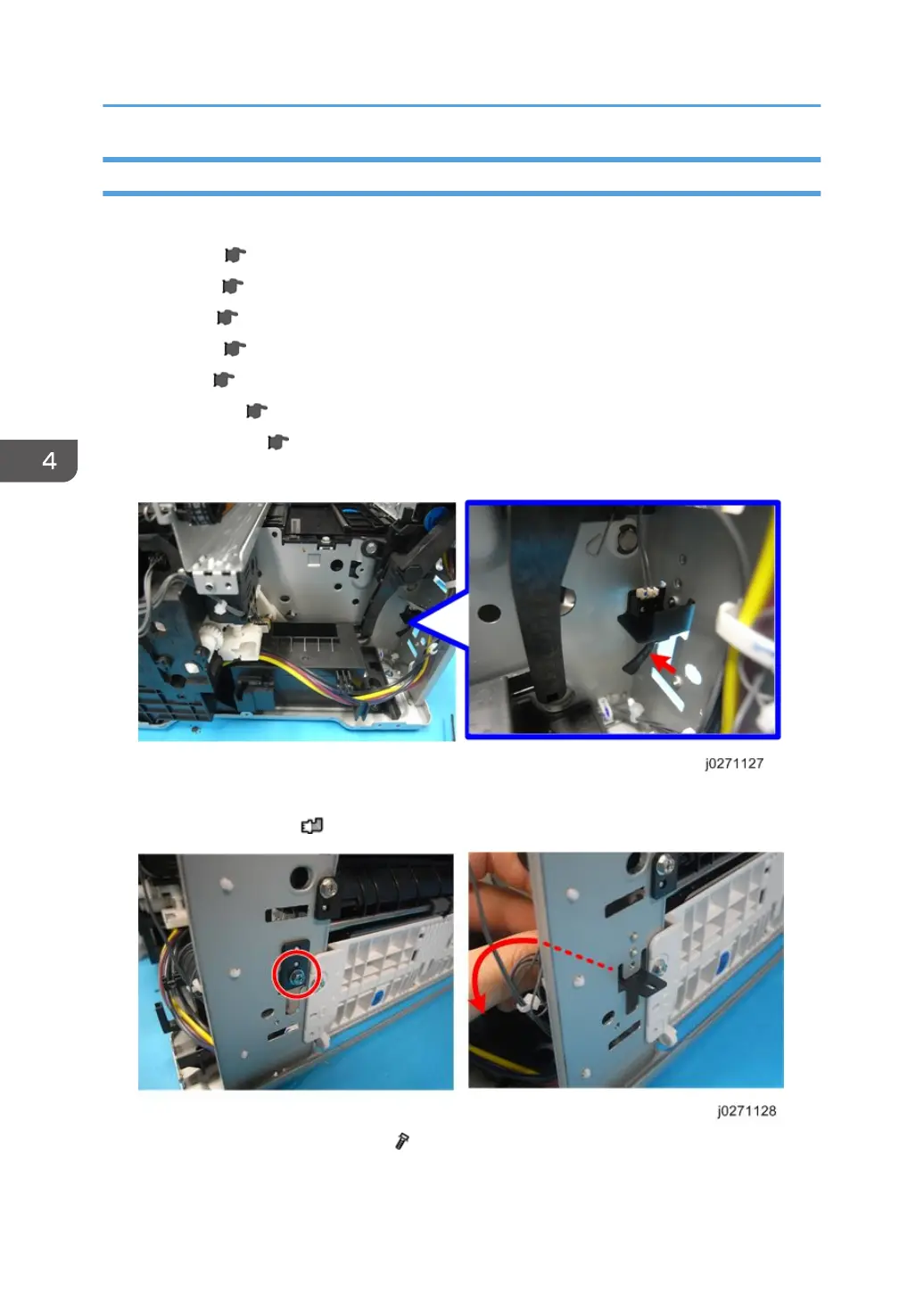

1. Push the carriage to the center.
2. The duplex unit set switch is located at the machine's right rear corner.
3. Remove the connector ( x 1).
4. Remove the bracket at the rear side ( x 1).
4. Replacement and Adjustment
