Carriage Unit
Replacing the Carriage Unit
Accessories

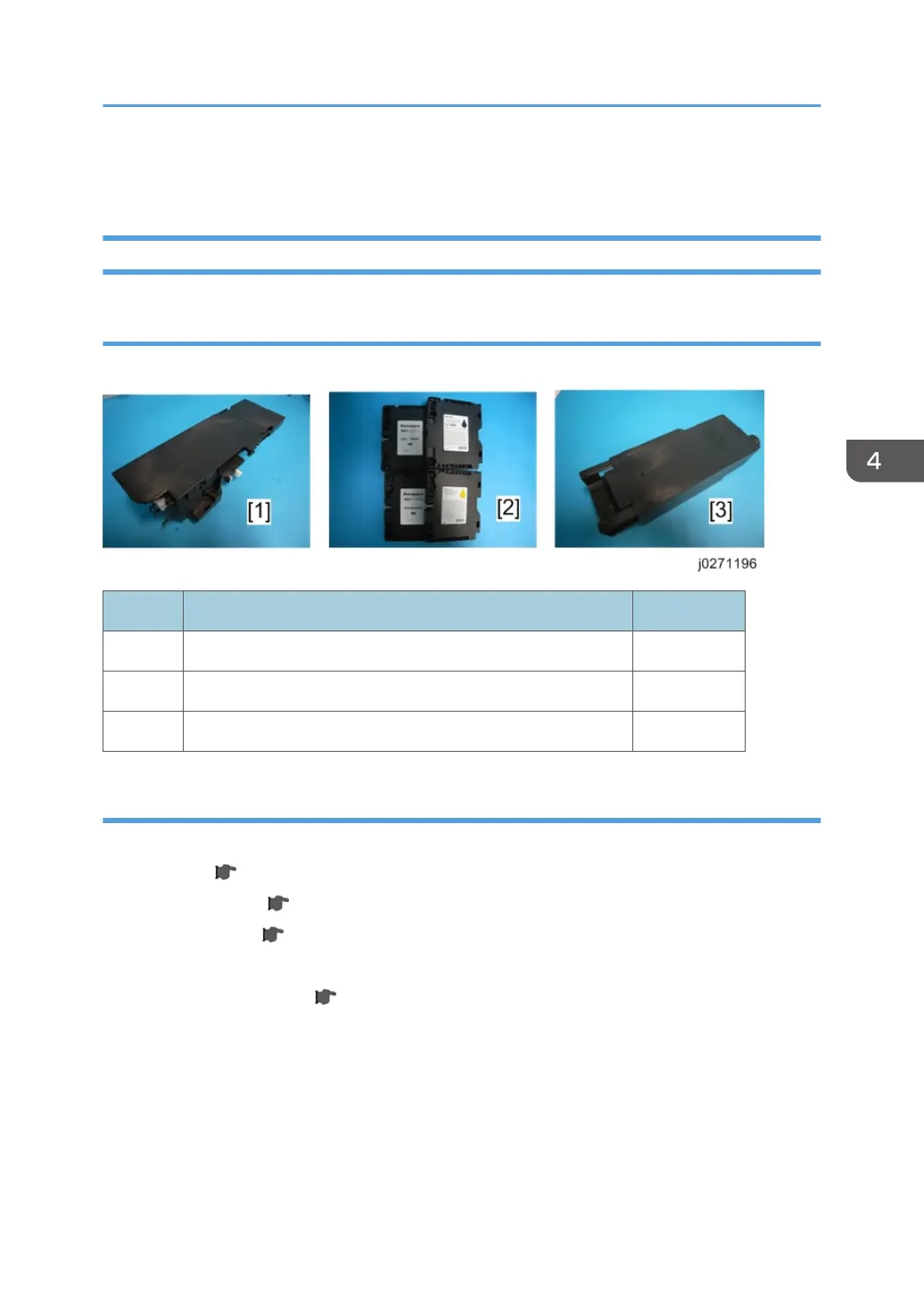

Check the items in the carriage replacement kit with the list below.
Item Qty
[1] Carriage Unit 1
[2] Ink Cartridges 4
[3] Ink Collector Unit 1
Preparation
• Turn the machine power off.
• All covers ( p.50)
• Maintenance unit ( p.66)
• CTL board cover ( p.80)
• Pull out all Ink cartridges.
• Horizontal encoder strip ( p.73)
Carriage Unit
129
