Rollers
Paper Feed Roller
Preparation
•
Duplex unit (
p.48)
•
All covers (
p.50)
•
Feed clutch (
p.93)
•
Bypass drawer connector (
p.117)
•
Charge roller (
p.96 "Transport Belt, Charge Roller, Pressure Plate, Pressure Rollers")
•
Vertical encoder wheel (
p.71)
•

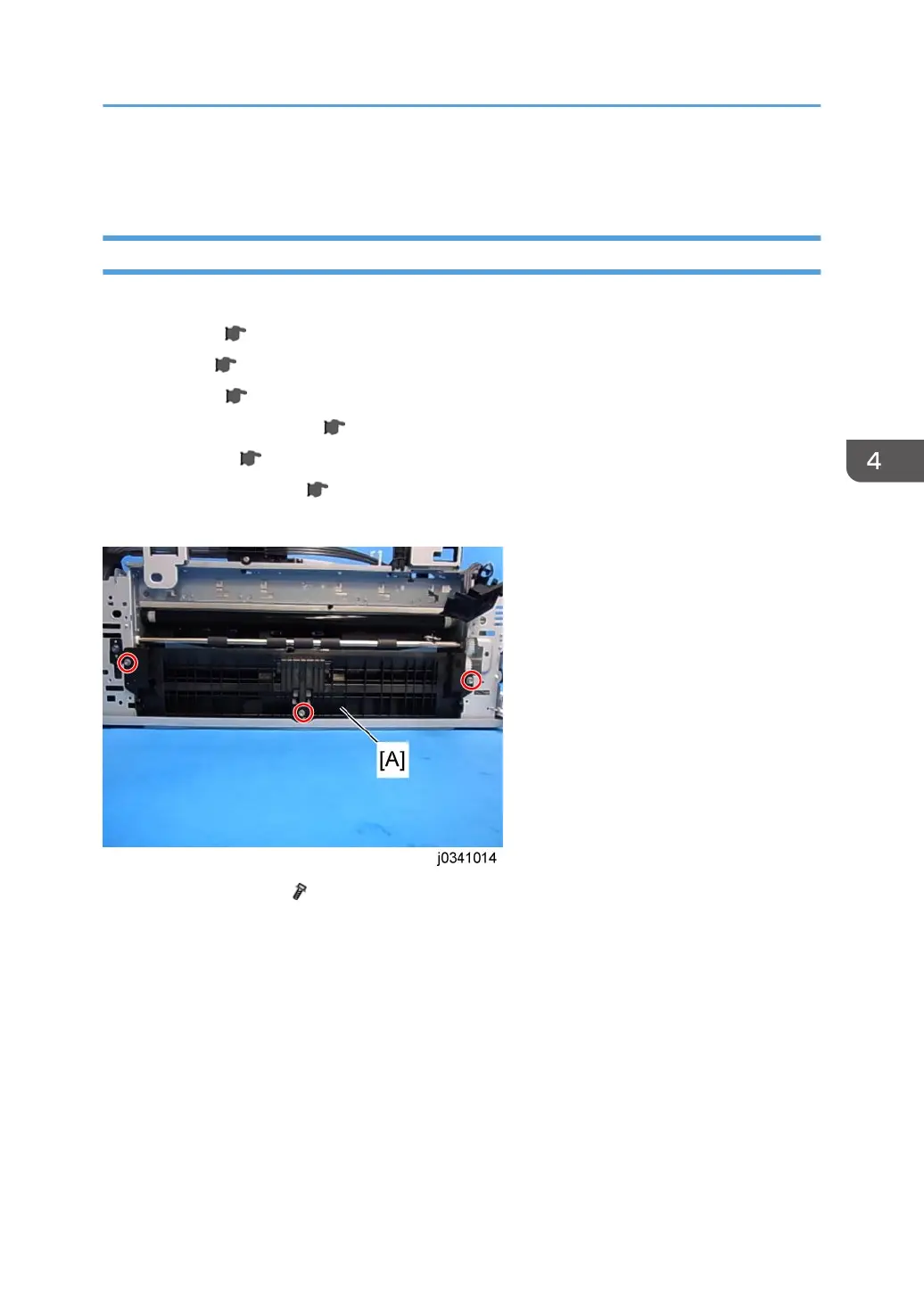

Pull out the Paper cassette.
1.
The guide board [A] (
x 3)
Rollers
123
124
126
