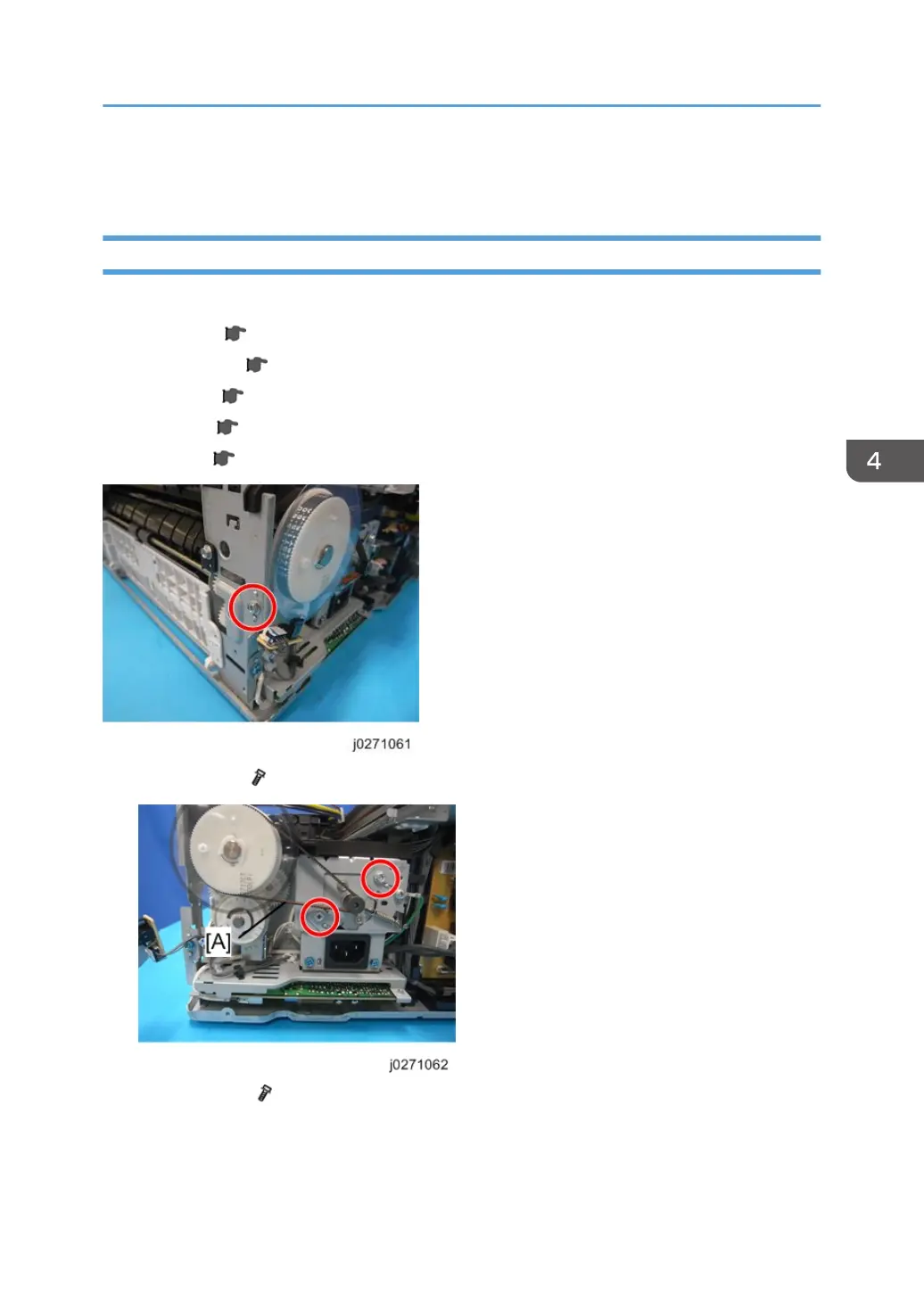

Encoders
Vertical Encoder Wheel
Preparation
• Duplex unit ( p.48)
• Canopy cover ( p.57)
• Rear cover ( p.51 "Rear Cover, Top Cover")
• Top cover ( p.51 "Rear Cover, Top Cover")
• Left cover ( p.56)
1. Remove screw ( x1).
2. Remove screws ( x2) to release tension on the belt [A].
Encoders
71
