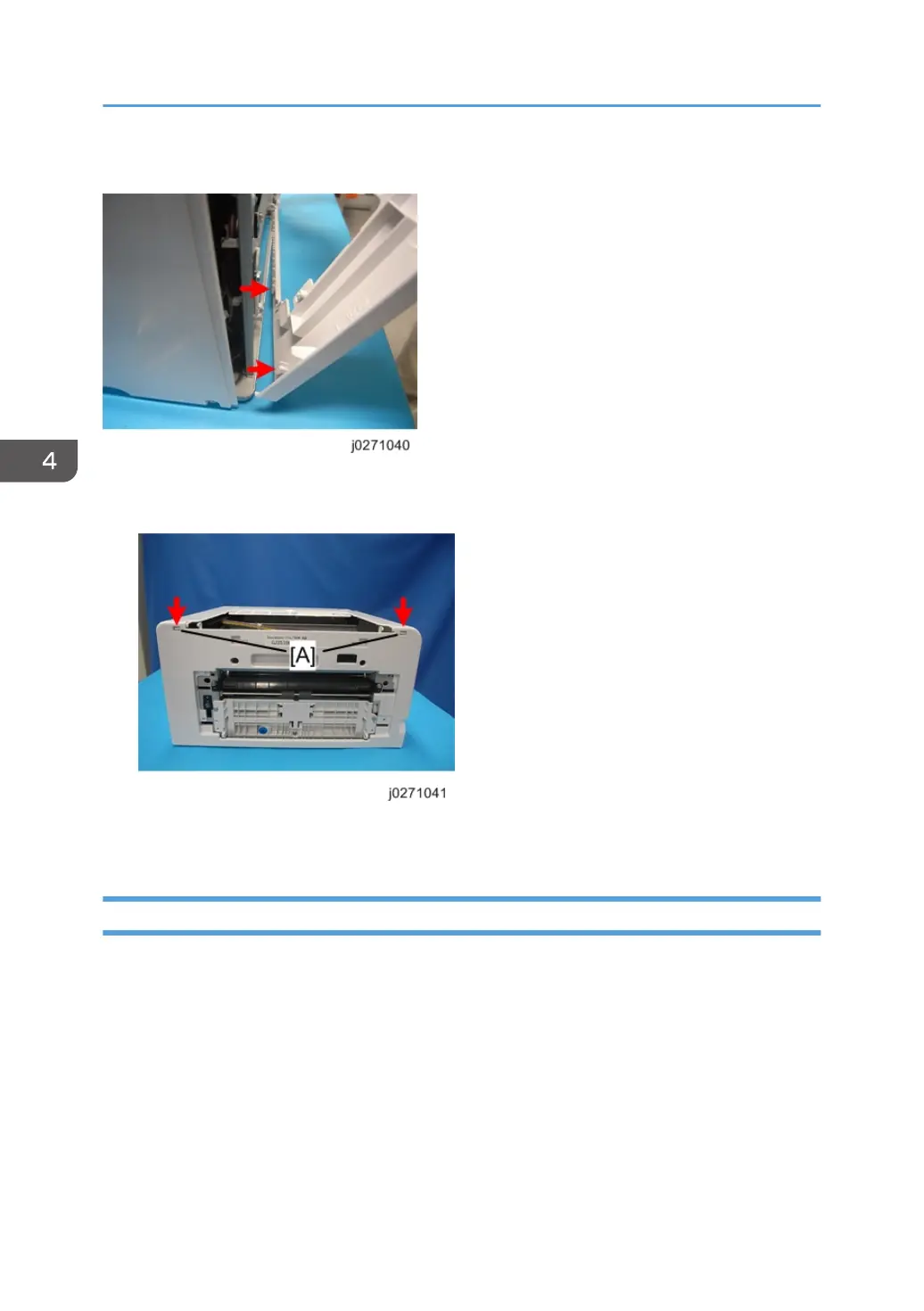

Rear Cover
1. Engage the tabs on the rear cover in the brim of the machine's frame and attach the rear
cover.
2. After attaching the rear cover, check that the tabs [A] on the top left and top right are
engaged.
Unlocking, Moving the Carriage
Many maintenance and some cleaning procedures require that you unlock the carriage and push it
completely to the left side or center of the printer. Follow this procedure whenever you are instructed to
unlock the carriage.
4. Replacement and Adjustment
64
