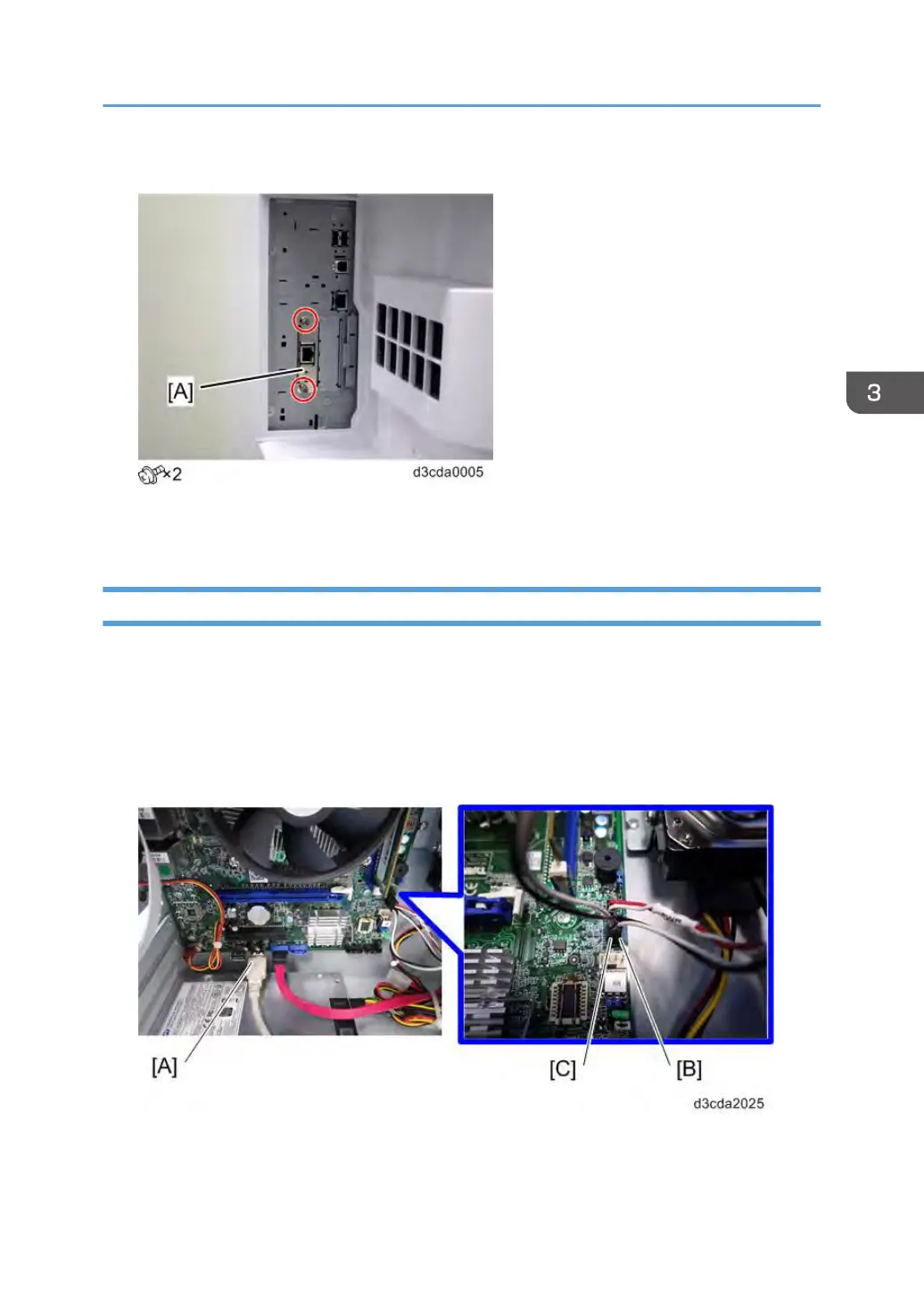

2. Remove the Gigabit Ethernet controller [A].
For Re-assembling:
•
Make sure that the Gigabit Ethernet controller is inserted straight.
Cables Connected to the Front Panel
1. Remove the side cover. [Link to page 76 "Side Cover for the E-24B"]
2. Remove the video board. [Link to page 77 "Video Board"]
3. Remove the front panel USB port cable [A] from USB A1.
4. Remove the HDD LED cable [B] from J15.
5. Remove the Power LED cable [C] from J15.
Unit Removal
91
